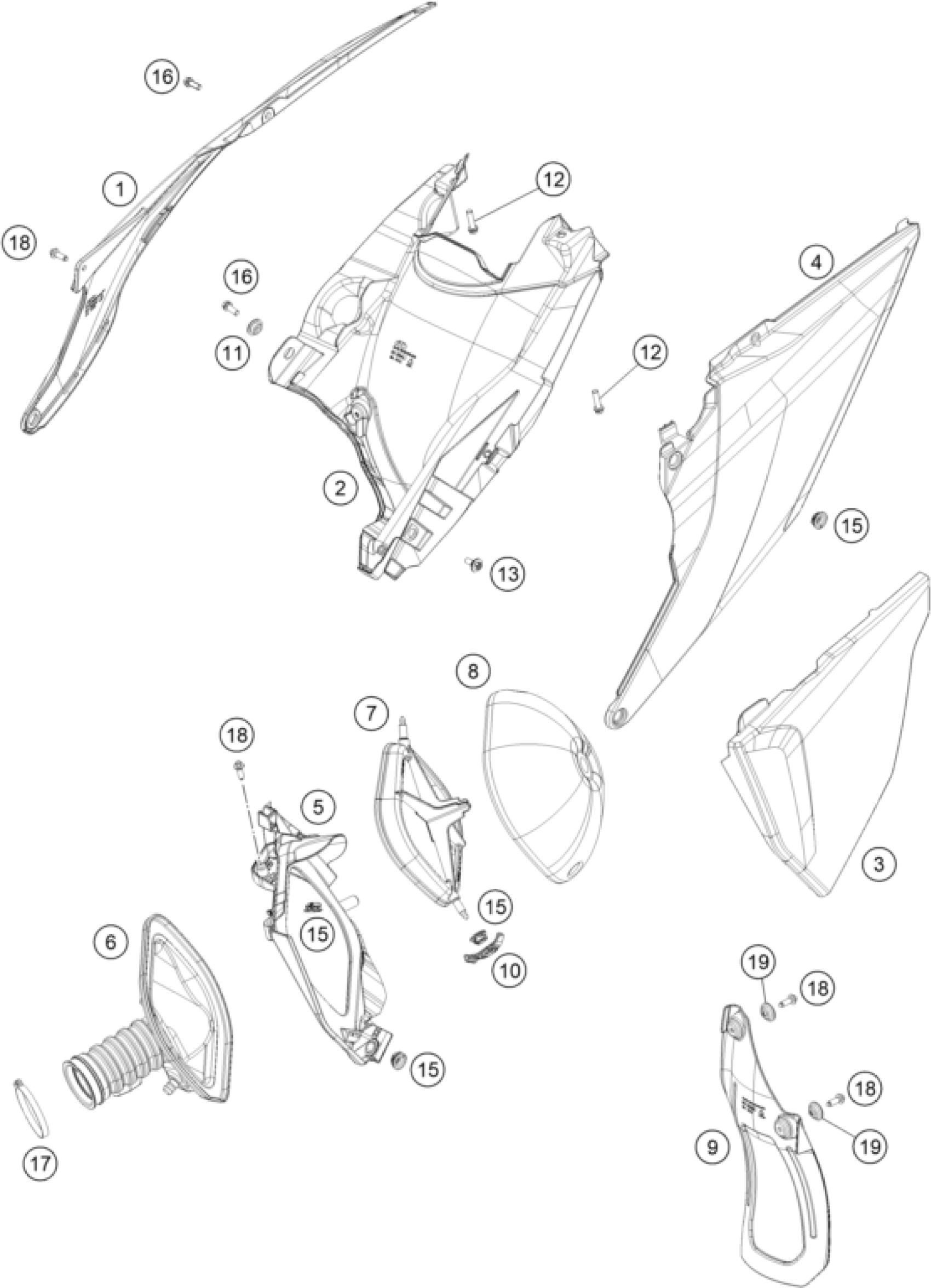

KTM 450 XCF-W 2023 AIR FILTER Diagram

#

Description
Price

1

Air filter panel

79106004000EB

Unavailable

2

Air filter box

79106001000C1

Unavailable

3

Air filter box cover, left

79106003000EBC

Unavailable

4

Air filter box lid, left

79106005000EBC

Unavailable

5

air cleaner box front

79106001010C1

Unavailable

6

INTAKE BELLOWS

79406126000

Unavailable

7

AIR FILTER SUPPORT

79006016000

Unavailable

8

AIR FILTER

79006015000

Unavailable

9

SPLASH GUARD

79006010000

Unavailable

10

FILTER MOUNTING BRACKET

79006017000

Unavailable

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

SPECIAL SCREW M6X15X3

83008000015

Unavailable

15

quick release rubber grommet

47106003160

Unavailable

16

HH collar screw M6x16 TX30

0025060166

Unavailable

17

HOSE CLAMP 45-65MM

78006027000

Unavailable

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

19

Chain slider bushing

77304066150

Unavailable
