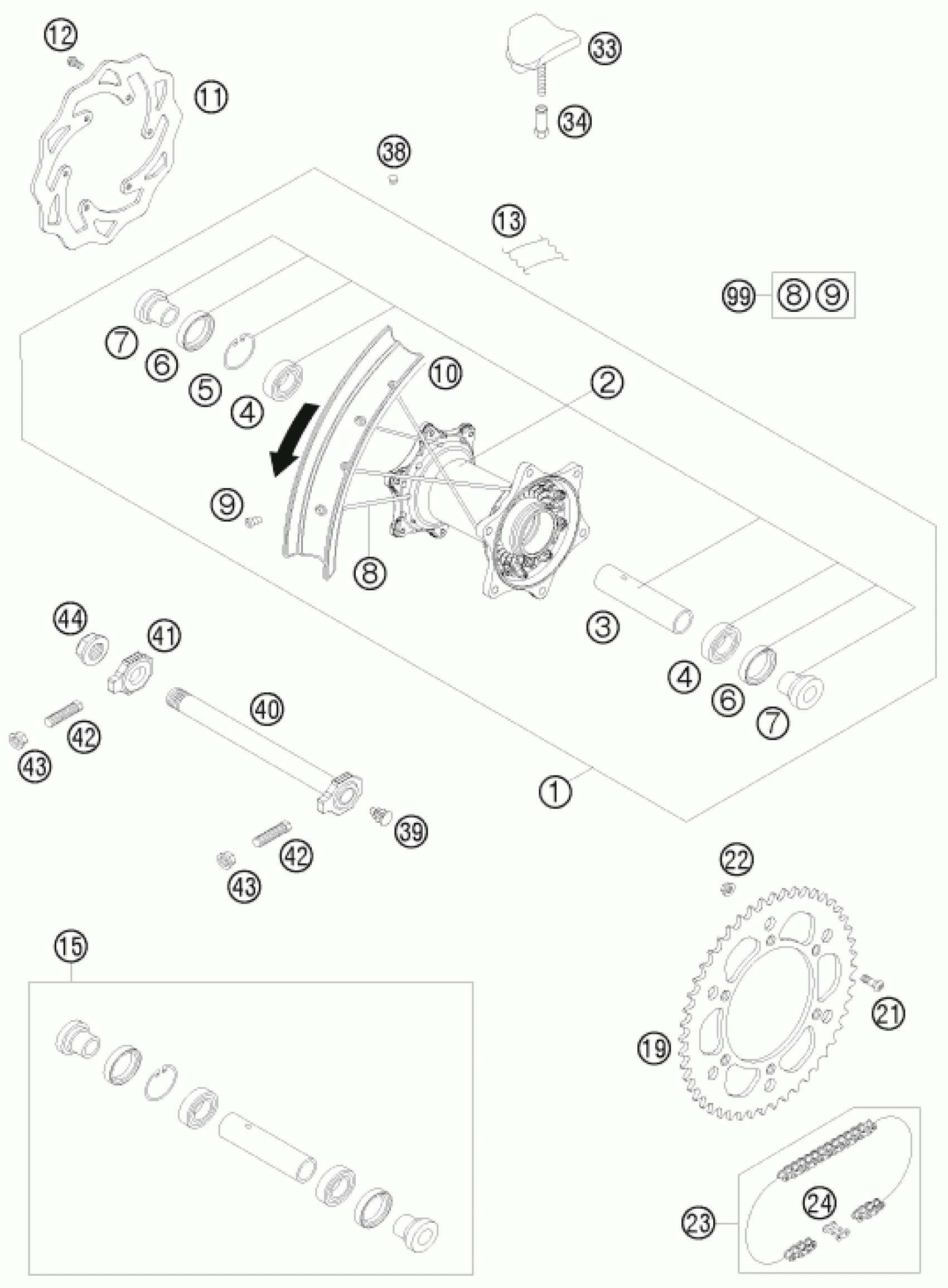

KTM 450 XC-W SIX DAYS 2010 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 2,15X18''EXC.0

7801000114430

Unavailable

2

REAR WHEEL HUB CPL.

78010010144

Unavailable

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

BUSHING FOR HUB 08

78010016000

Unavailable

8

SPOKE M5X193- 18''

78010174193

Unavailable

9

SPOKE NIPPLE M5-TA 8X21MM

58309072100

Unavailable

10

RIM 2,15X18'' EXCEL AL7 BLACK

7801007000030

Unavailable

11

BRAKE DISC REAR 220

77310060000

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

13

Tube protector 18" and 19"

50310073200

Unavailable

15

REAR WHEEL REP. KIT

78010015000

Unavailable

19

REAR SPROCKET ORANGE 38-T

5841005103804

Unavailable

19

REAR SPROCKET ORANGE 40-T

5841005104004

Unavailable

19

REAR SPROCKET ORANGE 42-T

5841005104204

Unavailable

19

REAR SPROCKET ORANGE 44-T

5841005104404

Unavailable

19

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

19

REAR SPROCKET ORANGE 49-T

5841005104904

Unavailable

19

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

19

REAR SPROCKET ORANGE 51-T

5841005105104

Unavailable

19

REAR SPROCKET ORANGE 52-T

5841005105204

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

23

CHAIN DID 118 LINKS

78010167118

Unavailable

24

CONNECTING LINK F. 78010167118

78010166000

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

Thru axle rear wheel cmpl. 07

77310085044

Unavailable

41

Chain tension adjuster, right

50310084000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

99

SPOKE KIT REAR 18''

00050000901

Unavailable
