WIRING HARNESS

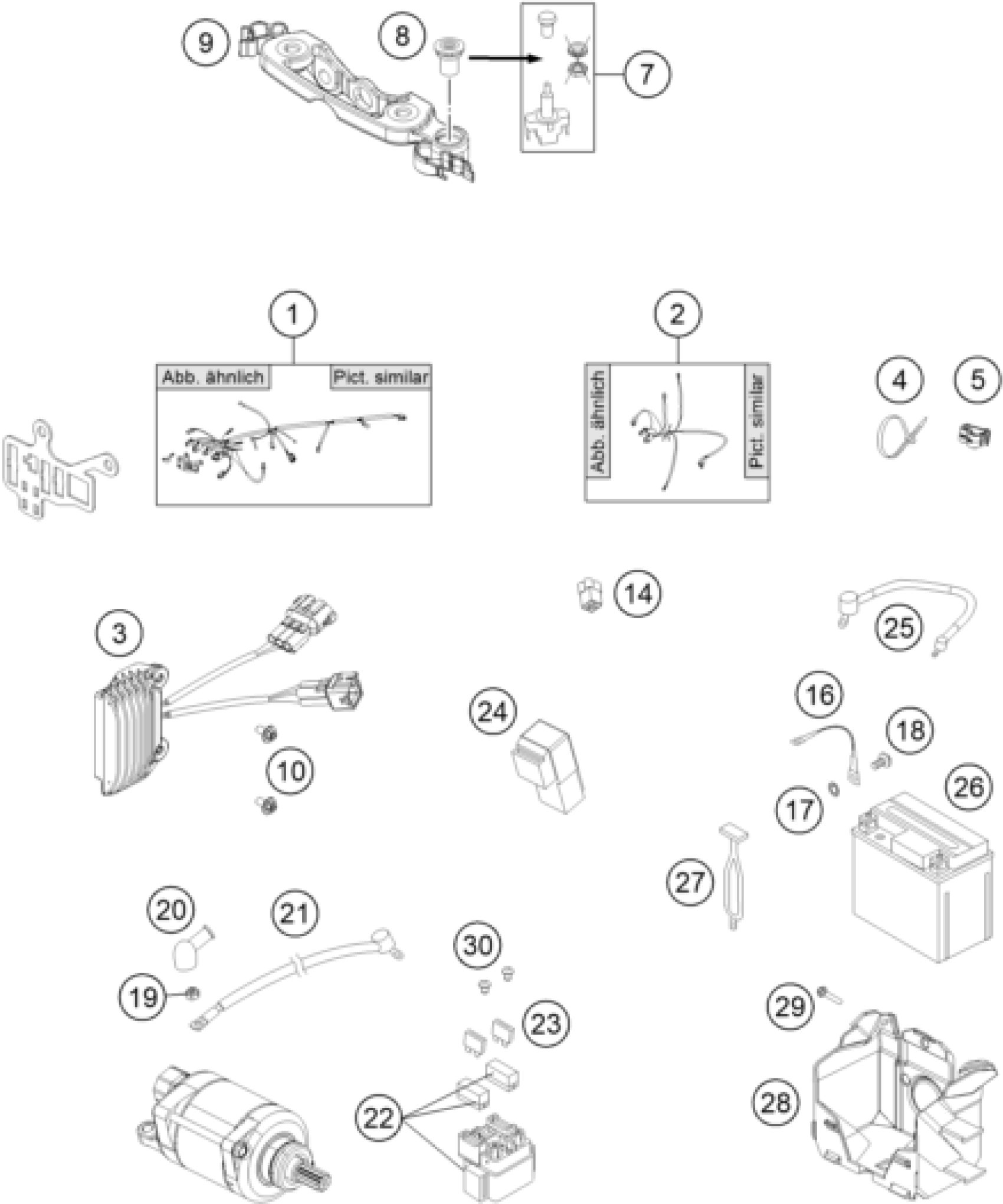

KTM 450 XC-W 2016 WIRING HARNESS Diagram
#
Description
Price
1
WIRING HARN.EFI VMT. EU/AUS 14
78111075133
Unavailable
2
WIRING HARNESS LIGHT XC-W 14
77711079100
Unavailable
3
VOLTAGE REGULATOR
78111034000
Unavailable
7
PULL SWITCH LOOSE
55011599000
Unavailable
8
SPEC. NUT F. PULL SWITCH WS=17
54814060050
Unavailable
4
Cable tie 200/4.6mm black
44011076200
Unavailable
4
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
5
Line guide
83013026000
Unavailable
9
SPEEDOMETER BRACKET EXC/XCW 14
77714060000
Unavailable
10
COLLAR SCREW M6X12 TX
0023060123
Unavailable
14
DUMMY PLUG AN 4-PIN
81211096000
Unavailable
16
GROUND CABLE D=6MM L=140MM '97
58411097100
Unavailable
17
CONTACT WASHER M6 VSV-K6
58411098100
Unavailable
18
EJOT SPIRAL SCREW SF M5X10-K
0009050106
Unavailable
19
Self lock. nut DIN985-M6-A2
0985060003
Unavailable
20
Protection cap for starter eng
77240099000
Unavailable
21
STARTERCABLE 700 MM '97
58411059100
Unavailable
22
Starter reley 12V 99
58211058000
Unavailable
23
Plug-in fuse, big 20A
58011109120
Unavailable
24
RELAY CM1A-R-12V-H80 07
61111057000
Unavailable
25
WIRING HARNESS BATTERY DUKE'99
58711086000
Unavailable
26
BATTERY 12V 4AH YTX5L-BS
58511053000
Unavailable
27
RUBBER L=145MM
50303018000
Unavailable
28
BATTERY CASE
78111055000
Unavailable
29
SCREW FOR PLASTIC K60X20 SW6
0017060205
Unavailable
4
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
30
Oval head screw ISO 7380 M 6X8
0902060083
Unavailable
