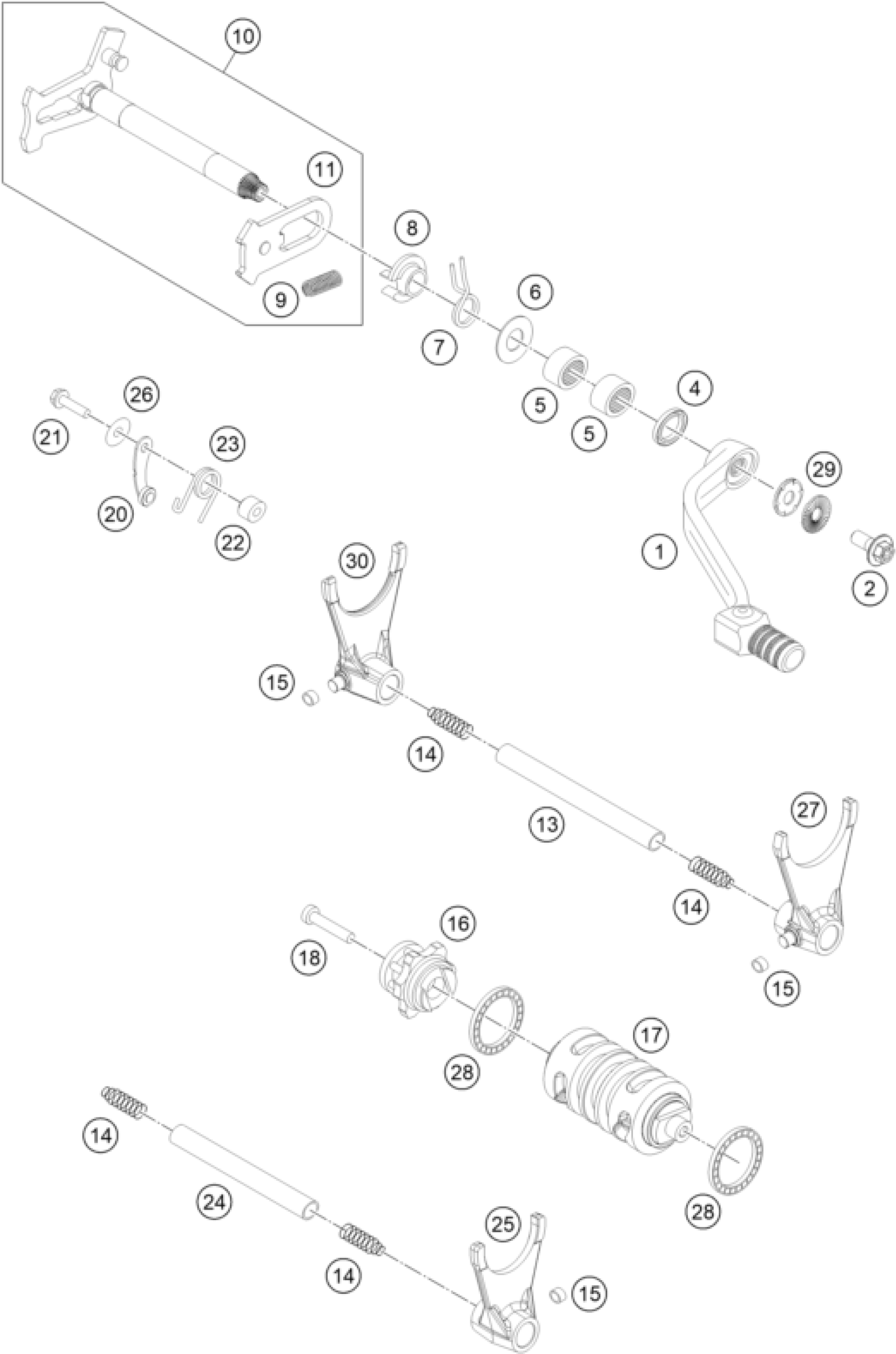

KTM 450 XC-W 2016 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER CPL.RACING 2000

59034031000

Unavailable

2

HH collar screw M6x15 TX30

0024060156S

Unavailable

4

radial shaft seal 14x24x6 B

0760142460

Unavailable

5

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

6

STOP DISK 14X30X1

54634050000

Unavailable

7

RETURN SPRING 2,2MM '95

54634014100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SHIFT SHAFT CPL. ASSY

78034005233

Unavailable

11

SLIDING PLATE

61234008044

Unavailable

13

SHIFT RAIL 11,8X101,5

78034020000

Unavailable

14

PRESSURE SPRING 0,9MM

58038023200

Unavailable

15

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

16

SHIFT DRUM LOCATING ALU CPL.

78134015044

Unavailable

17

SHIFT ROLLER

78034012000

Unavailable

18

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable

20

LOCKING LEVER CPL.

78134024044

Unavailable

21

HH collar screw M5x20 TX30

0025050206

Unavailable

22

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

23

ARRESTING LEVER SPRING 03

60034023000

Unavailable

24

SHIFT RAIL 11,8X85

78034019000

Unavailable

25

SHIFTING FORK 5./6. GEAR

59034001100

Unavailable

26

washer DIN 9021 A - 5.3

0021050003

Unavailable

27

SHIFTING FORK 2./4. GEAR

59034002100

Unavailable

28

BALL BEARING 61805 C3

0625618050

Unavailable

29

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

30

SHIFTING FORK 1ST/3RD GEAR

78034003100

Unavailable
