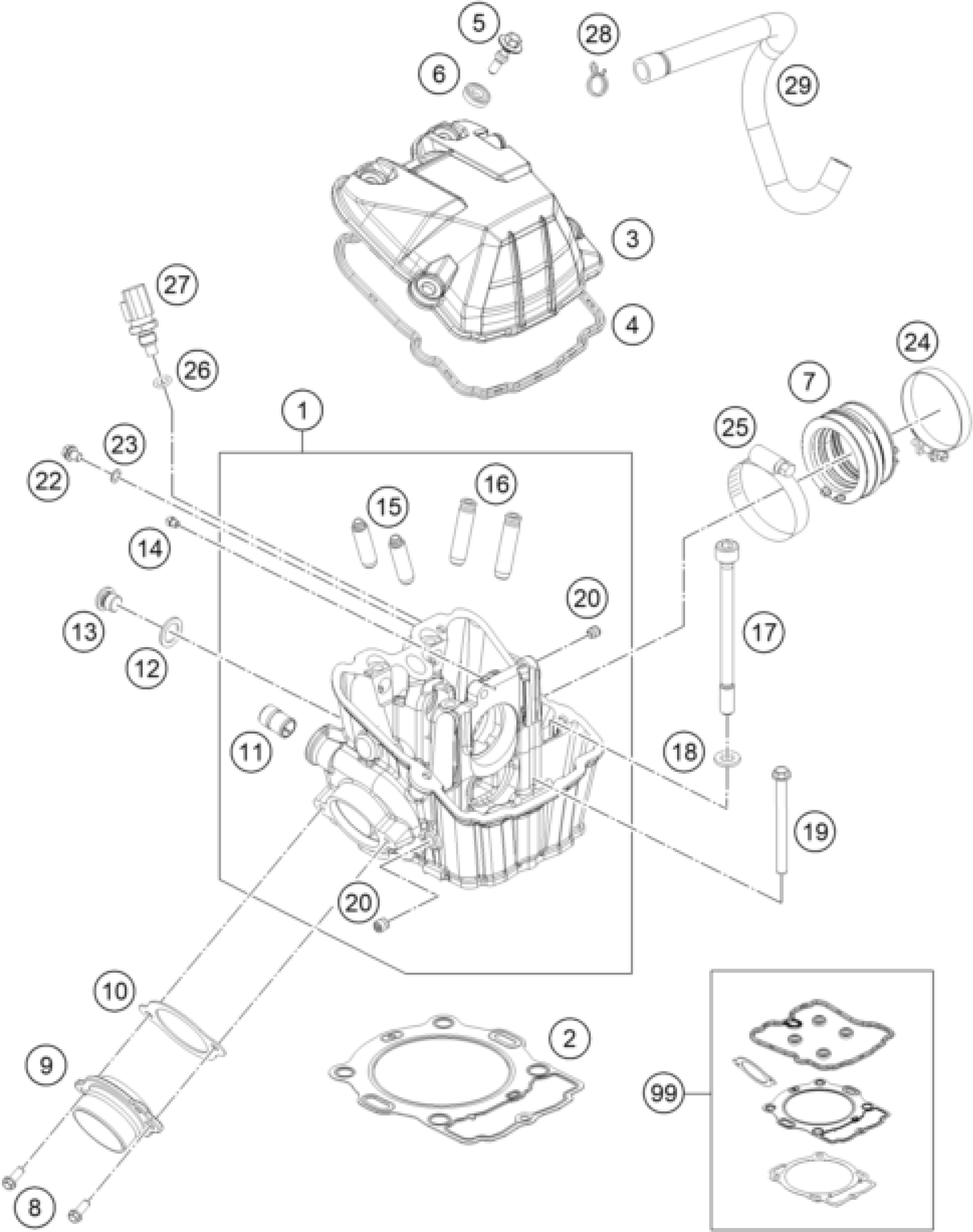

KTM 450 XC-W 2016 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDERHEAD CPL.

78136120044

Unavailable

2

CYLINDER HEAD GASKET S=1.0

78930036010

Unavailable

3

VALVE COVER BLACK MATT

7803605200033

Unavailable

4

VALVE COVER GASKET

78036053100

Unavailable

5

VALVE COVER SCREW

78036054100

Unavailable

6

decoupling element

75036052010

Unavailable

7

CONNECTION RUBBER EFI

77236044000

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

EXHAUST FLANGE

78136139000

Unavailable

10

EXHAUST FLANGE GASKET

78036041000

Unavailable

11

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

12

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

13

PLUG SCREW SAS M12X1,5

78036024000

Unavailable

14

oil jet 70 M5

60030063070

Unavailable

15

VALVE GUIDE OUTLET

77136026001

Unavailable

16

VALVE GUIDE INTAKE

78136025001

Unavailable

17

CYL. HEAD SCREW M10X1,25 L=125

78030044000

Unavailable

18

washer 19x10.5x2.5

77336089010

Unavailable

19

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

20

SCREW PLUG

59030296000

Unavailable

22

HH collar screw M6x8 TX30

0025060086

Unavailable

23

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

24

Hose clamp GEMI 63mm 05

61036047000

Unavailable

25

Hose clip GEMI 58

77236048000

Unavailable

26

o-ring 10.00x2.00 silicone

0770100020

Unavailable

27

TEMPERAT.-SENSOR WATER LC8 02

60011252000

Unavailable

28

CLAMP YDNAC 10173 (18MM)

58431082300

Unavailable

29

ENGINE BREATHER TUBE

78130087000

Unavailable

99

GASKET SET CYL. 450/500 13

78030097000

Unavailable
