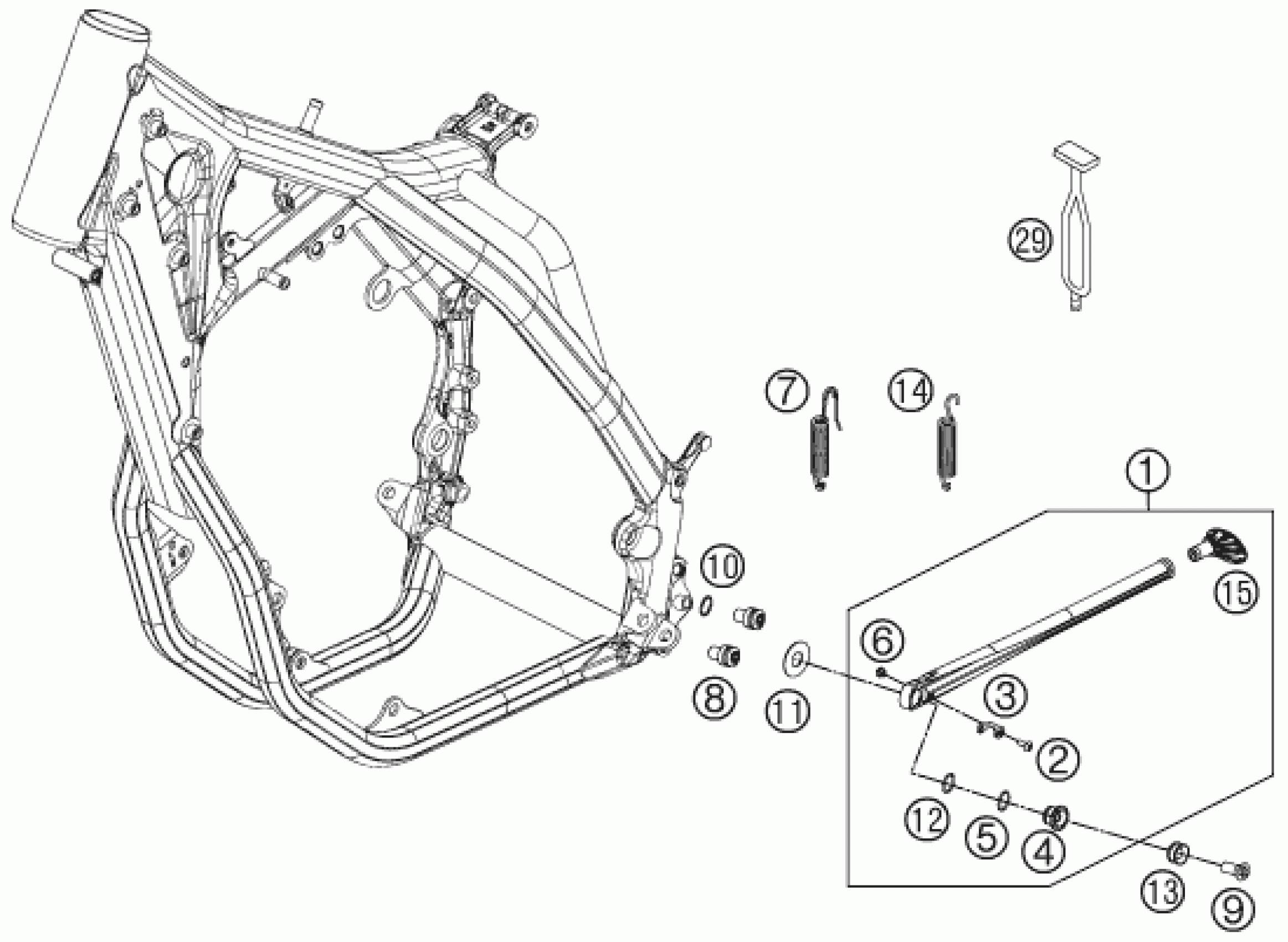

KTM 450 XC-W 2012 SIDE / CENTER STAND Diagram

#

Description
Price

29

RUBBER L=145MM

50303018000

Unavailable

1

SIDE STAND CPL. 08

78003023044

Unavailable

13

Side stand bushing

78003023081

Unavailable

2

Oval head screw M5x14 TX25

58605083014

Unavailable

3

SPRING BRACKET F. SIDE ST. 08

78003023090

Unavailable

4

SIDE STAND BUSHING EXC USA 08

78003023080

Unavailable

5

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

6

SPACER BUSH. SPRING BRACKET

78003023070

Unavailable

7

SIDE STAND SPRING EYE MOVEABLE

81203024000

Unavailable

8

SIDE STAND STOP SCREW M10X12

78003023182

Unavailable

14

SIDE STAND SPRING 08

78003024100

Unavailable

15

STAND BASE

78003023055

Unavailable

9

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

9

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

10

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

11

WASHER F. SIDE STAND 12,2X29,5

78003023083

Unavailable

12

O-RING 12,5X1,5 NBR

0770125015

Unavailable
