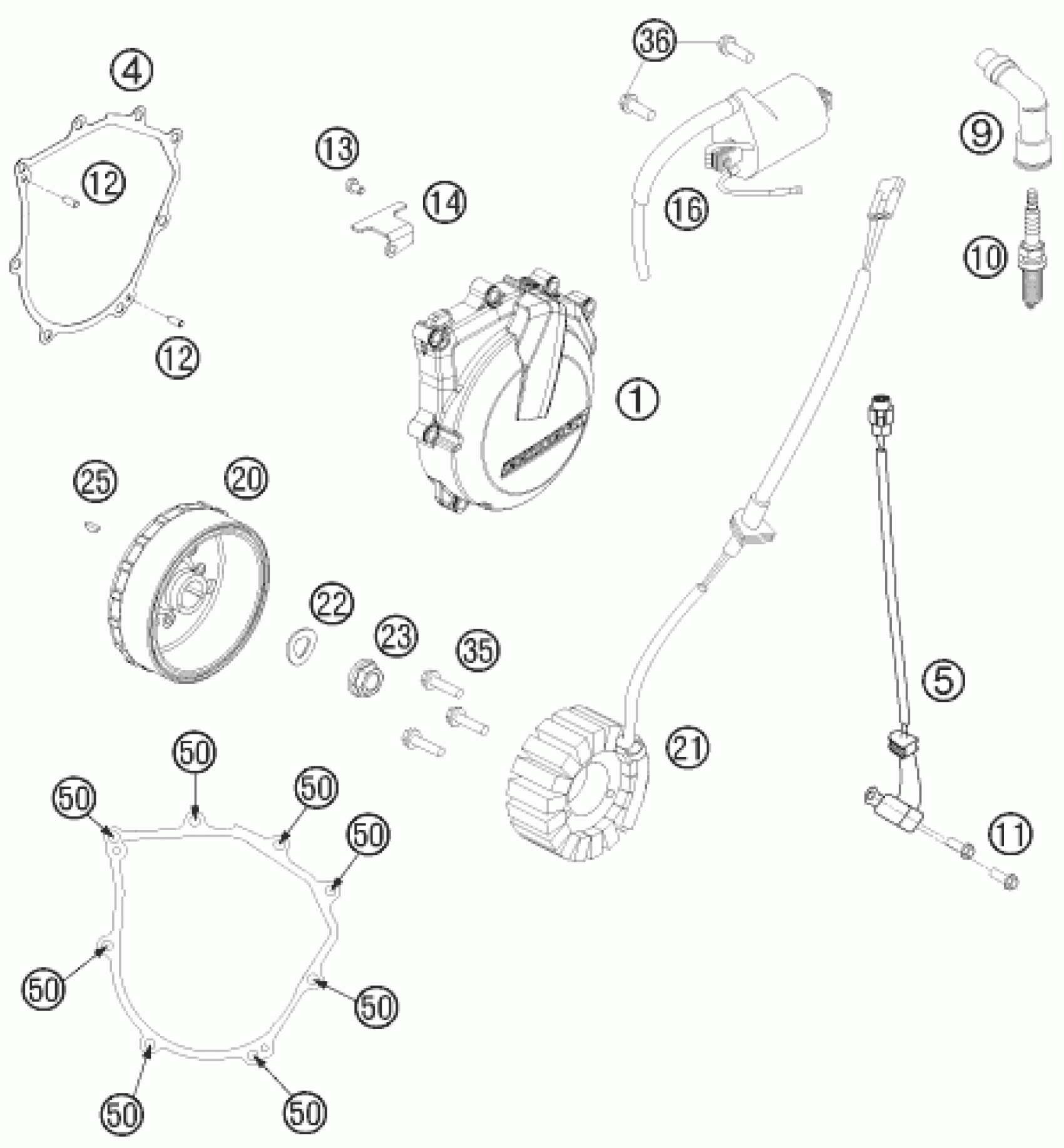

KTM 450 XC-W 2012 IGNITION SYSTEM Diagram

#

Description
Price

9

SPARK PLUG CONNECT. AP-TRS1908

78039090000

Unavailable

10

SPARK PLUG M12X1,25 LKAR8AI-9

75039093000

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

13

FLAT HEAD SCREW ISA25 M4X10

0019040106S

Unavailable

16

Ignition coil

58439006000

Unavailable

20

ROTOR EXC 08

78039205000

Unavailable

21

STATOR

83039004000

Unavailable

22

SPRING WASHER DIN0137-B12

0137120000

Unavailable

23

COLLAR NUT M12X1 R/S

49030021000

Unavailable

25

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

36

HH collar screw M6x16 TX30

0025060166

Unavailable

50

HH collar screw M6x25 TX30

0025060256

Unavailable

14

RETAINING PLATE

81230002010

Unavailable

1

IGNITION COVER

7813000210015

Unavailable

4

GASKET - IGNITION COVER

78130040000

Unavailable

5

pulse generator KOKUSAN 4K3-A/

59039034000

Unavailable

35

HH COLLAR SCREW M5X30 TX30

0025050306

Unavailable
