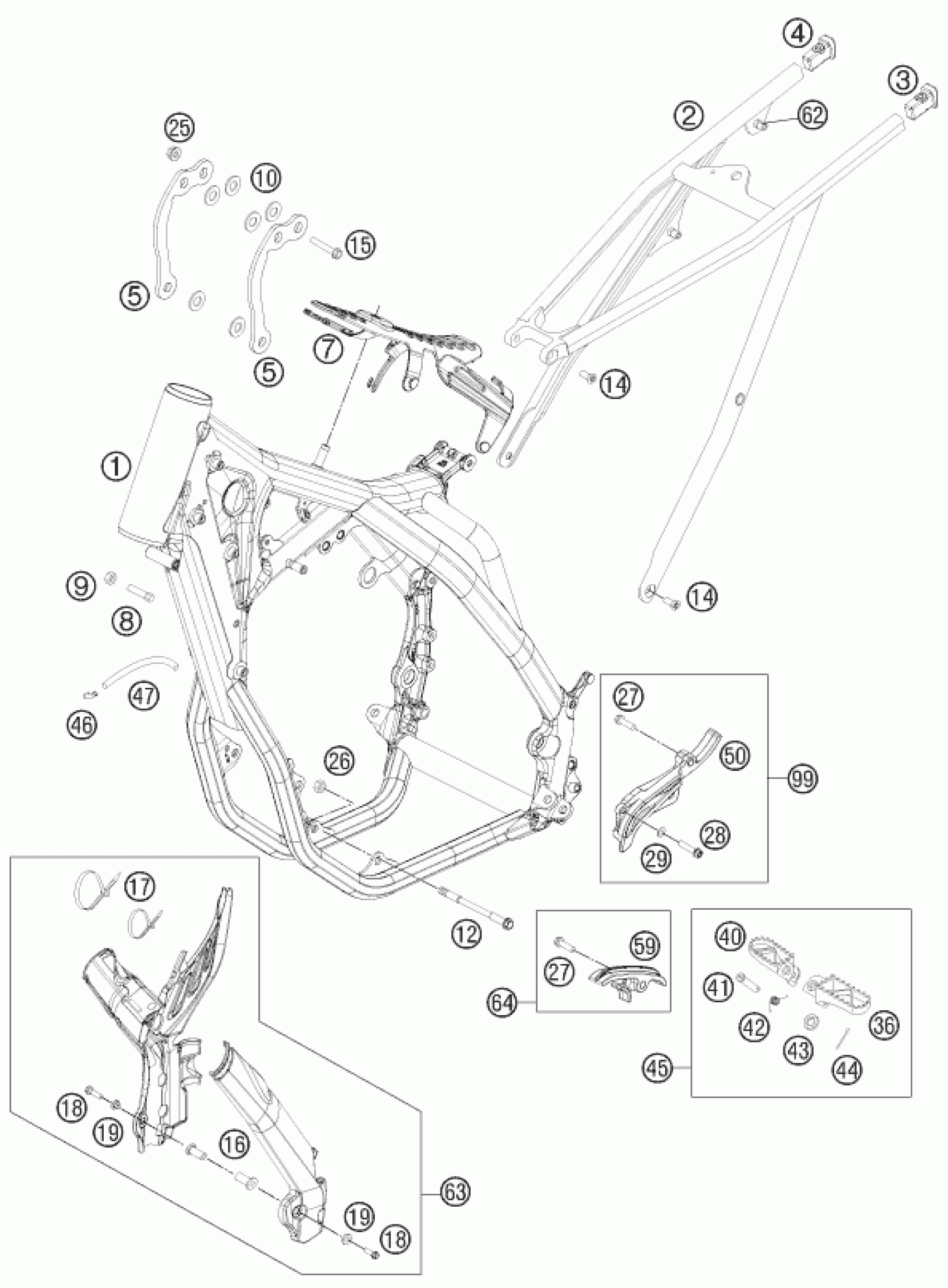

KTM 450 XC-W 2012 FRAME Diagram
#
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
Unavailable
2
SUB FRAME SX
77203002000
Unavailable
3
SUB FRAME APPLICAT. LEFT 08
78003002010
Unavailable
4
SUB FRAME APPLICATION R/S 08
78003002020
Unavailable
7
TANK REST RUBBER
77207012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
12
Enginebrac. screw M10X123 WS=1
59003013000
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
Unavailable
1
FRAME BLACK M. ''781L2''
7810300100033
Unavailable
17
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
19
Bush f. frame protection 03
54803092060
Unavailable
20
PLASTIC CAP SFL10
54403135000
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH collar screw M8x30
0025080306
Unavailable
28
HH collar screw M6x35 TX30
0025060356
Unavailable
36
FOOTREST L/S 08
78003040050
Unavailable
40
FOOTREST R/S 08
78003041050
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTREST L/S + R/S CPL. 09
78003040033
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
99
SPROCKET COVER KIT
78103096010
Unavailable
17
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
10
WASHER 8,5X18X1 INOX
77003013050
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
29
WASHER DIN0125-A 6,4
0125060003
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
CHAIN GUARD 450/500 EXC 12
78103096000
Unavailable
59
CHAIN SLIDER LOWER PART CPL.
77203053000
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
PLASTIC FRAME PROTECTION SET
77203094000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
Unavailable
5
REINFORCING 2012
78103013000
Unavailable
