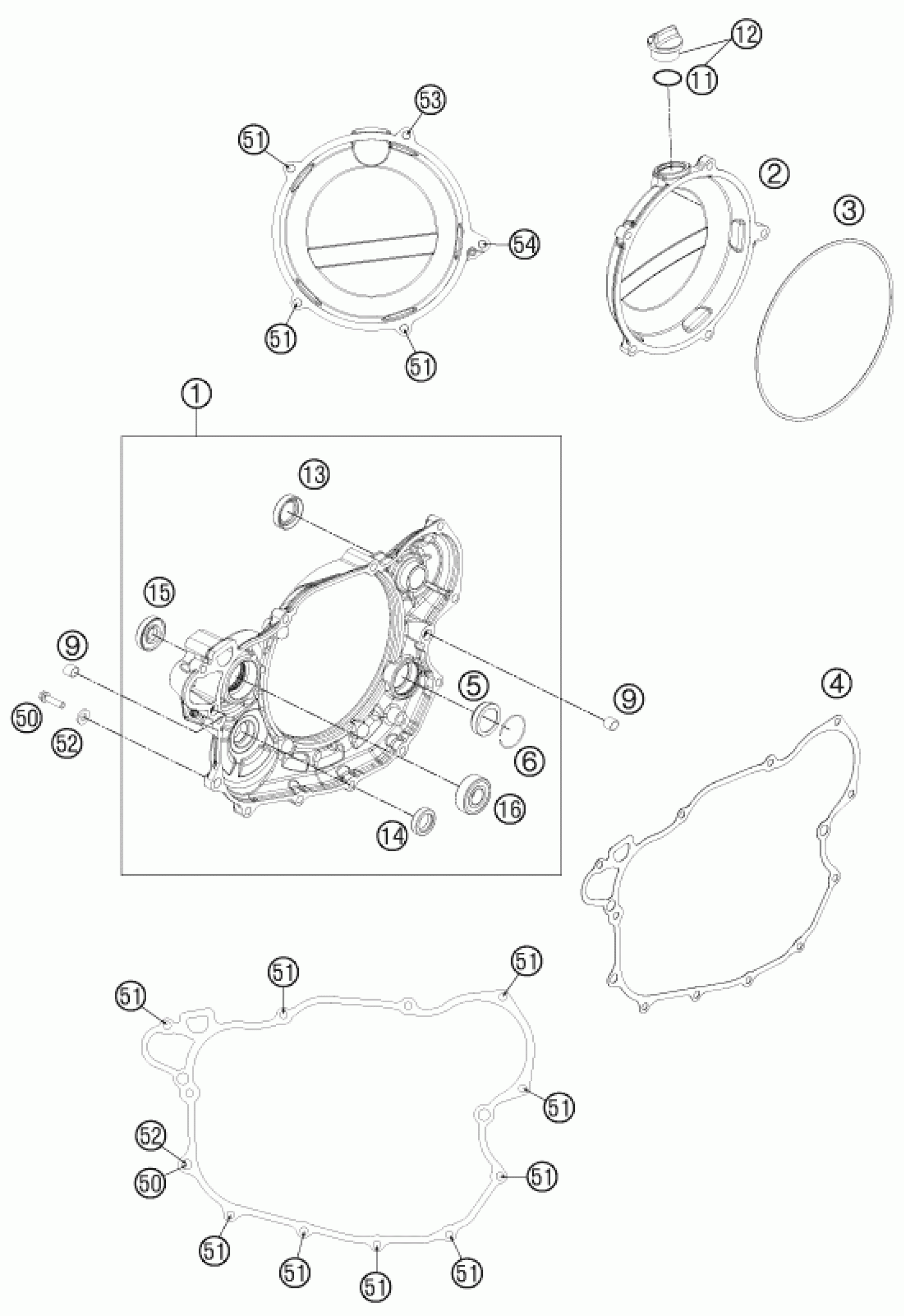

KTM 450 XC-W 2012 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

78130001044

Unavailable

2

CLUTCH COVER OUTSIDE

7813002600015

Unavailable

52

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

3

GASKET - CLUTCH OUTER COVER

78130027000

Unavailable

4

CLUTCH COVER GASKET

78130025000

Unavailable

5

OIL LEVEL GLASS VITON

78030095100

Unavailable

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

9

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

50

LOCATING SCREW

78030080000

Unavailable

51

HH collar screw M6x25 TX30

0025060256

Unavailable

11

O-RING 19,00X3,00 NBR

0770191015

Unavailable

12

OIL FILLER CAP M24x3 W. O-R

58030120000

Unavailable

53

HH collar screw M6x55 TX30

0025060556

Unavailable

13

SHAFT SEAL RING 19X30X7 B

0760193070

Unavailable

14

radial shaft seal 14x24x6 B

0760142460

Unavailable

15

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

16

BALL BEARING 6202 C0 2

0625062022

Unavailable

54

HH collar screw M6x60 TX30

0025060606

Unavailable
