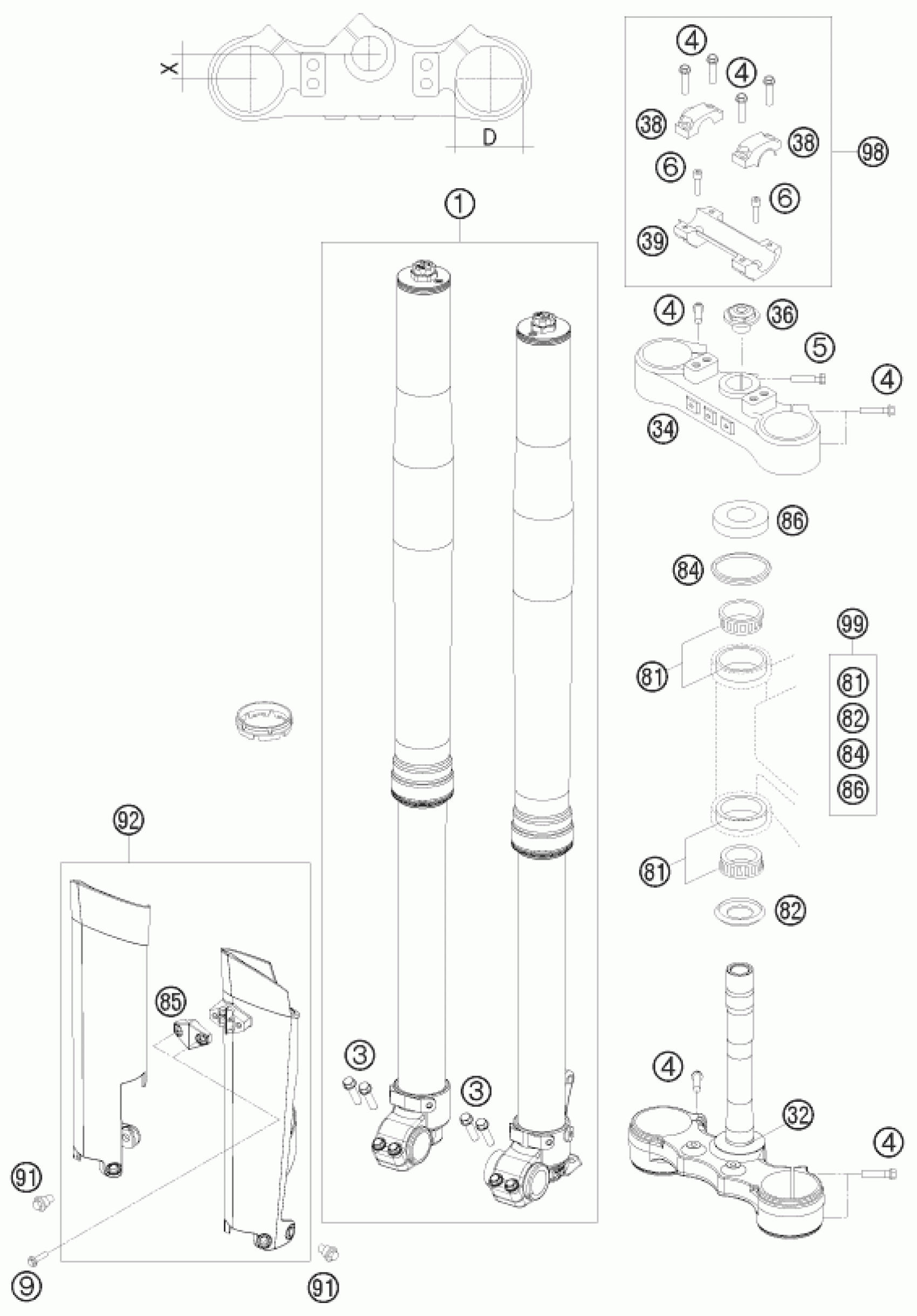

KTM 450 XC-W 2010 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KTM450/530EXC/XC-W 2010

14187J0601

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

4

HH collar screw M8x30

0025080306

Unavailable

5

HH collar screw M8x35 TX40

0025080356

Unavailable

6

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

32

BOT.FORK PLATE CPL.

59001232120

Unavailable

34

TOP FORK PLATE X=20MM/D=54MM

59001234020

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

HANDLEBAR CLAMP D=28MM 2000

59001038200

Unavailable

39

HANDLEBAR SUPPORT 28MM SC'99

59001039100

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP F.SPEED.CABLE D=6MM 08

7800108500030

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECTION LE+RI BLACK

7800109410030

Unavailable

98

HANDLEBAR SUPPORT KIT

00050000920

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
