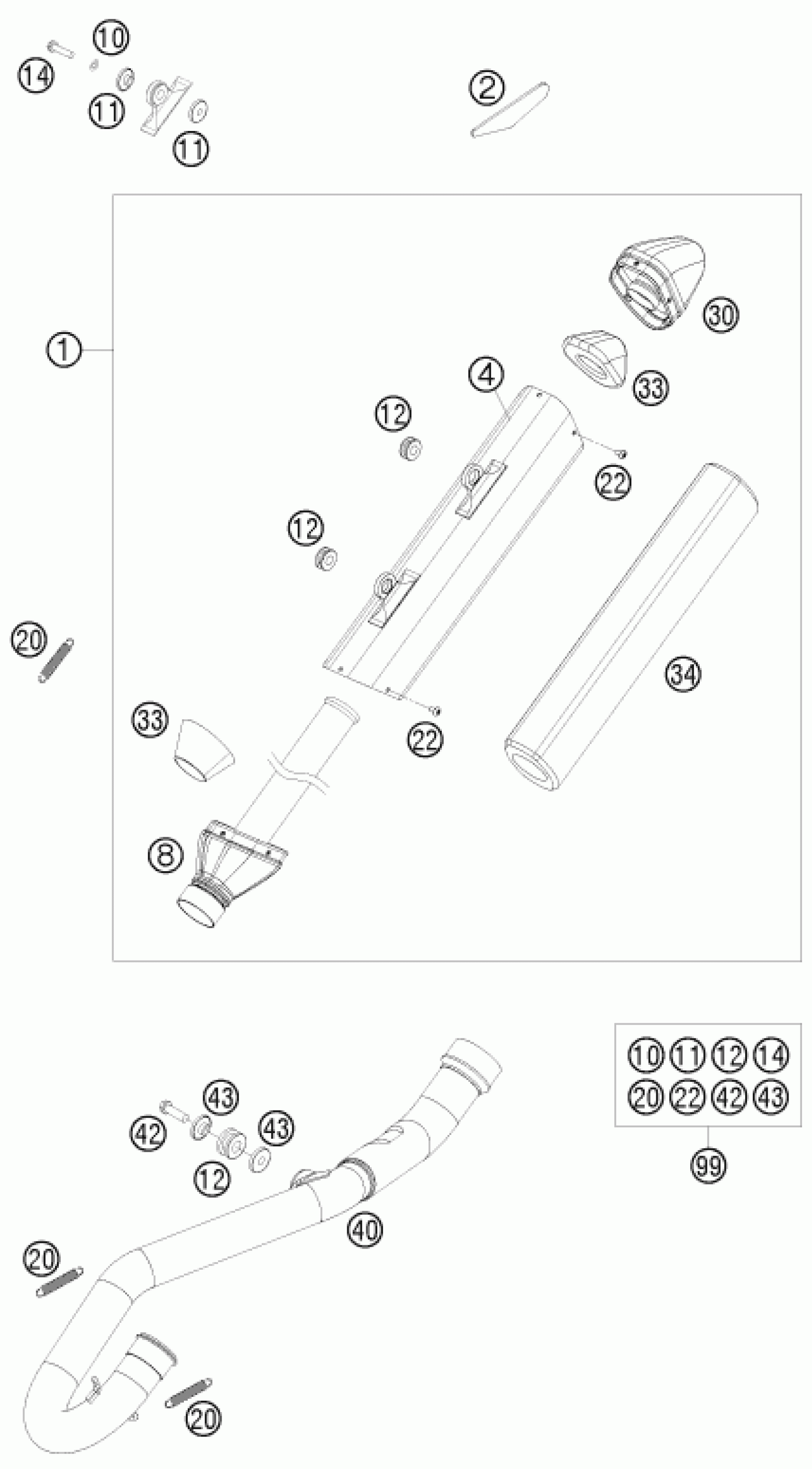

KTM 450 XC-W 2010 EXHAUST SYSTEM Diagram

#

Description
Price

30

ENDCAP 07

77305079006

Unavailable

33

STUFFING YARN 65 GRAM

77005078065

Unavailable

40

EXHAUST PIPE 450 EXC-F 08

78005007000

Unavailable

42

HH collar screw M8x25

0025080256

Unavailable

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

34

STUFFING YARN 380 GRAM

77005078380

Unavailable

8

CONNECTING CAP CPL. 08

77005079209

Unavailable

1

SILENCER SX/XC-W 2010

77005079300

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

4

SILENCER HOUSING SX/XC-W

77005079350

Unavailable

14

HH collar screw M6x30 TX30

0025060306

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

22

SCREW TORX M5X10 05

58605083010

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

Unavailable

99

EXHAUST PARTS KIT 10-11

00050000809

Unavailable
