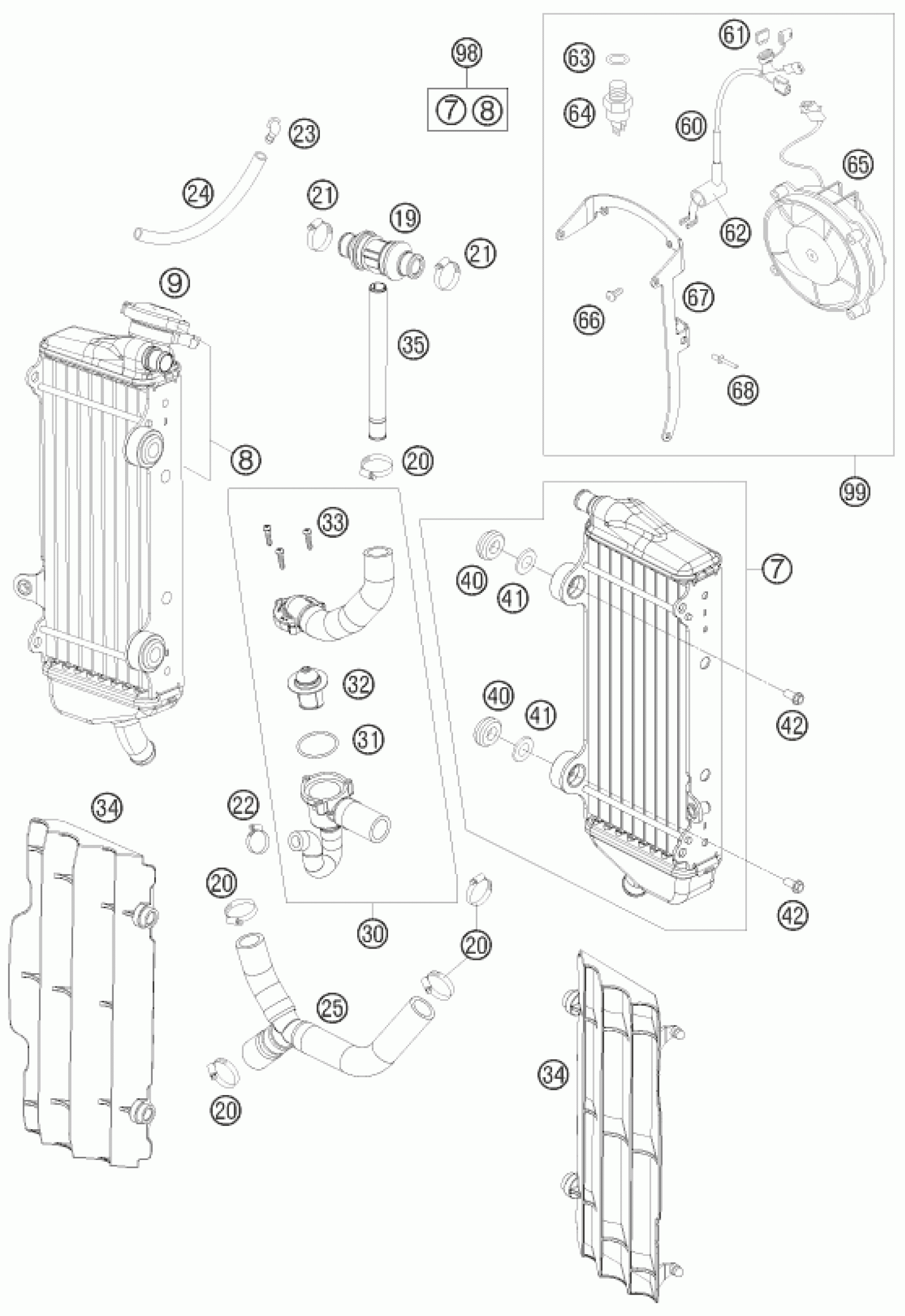

KTM 450 XC-W 2010 COOLING SYSTEM Diagram

#

Description
Price

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

7

RADIATOR L/S 250 SX-F

77035007200

Unavailable

8

RADIATOR R/S ''45556'' 08

78035008000

Unavailable

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

19

T-CONNECTOR CPL. ´07

77335026000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP NORMA 14/24

42013037400

Unavailable

22

HOSE CLAMP GEMI 10-16

58335099000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATORHOSE CPL. W. Y-ITEM

78035027133

Unavailable

30

RADIATOR H. CPL. W.THERM.75 08

78035026033

Unavailable

31

O-RING 32,00X2,00

0770320020

Unavailable

32

THERMOSTAT 70 DEGREE 04

59435017000

Unavailable

33

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

99

FAN KIT COMPLETE

81235941044

Unavailable

41

WASHER FOR RADIATOR 08

77335001000

Unavailable

42

COLLAR SCREW M6X12 TX

0023060123

Unavailable

60

FAN WIRING HARNESS

59011079100

Unavailable

61

FUSE 5 A 2003

58011109105

Unavailable

63

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

64

THERMOSWITCH 95-100 DG

78035045000

Unavailable

65

FAN CPL. 12V LC4 2000

58435041000

Unavailable

66

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

67

FAN SUPPORT EXC

78035043000

Unavailable

68

RIVET 4,0X 8 ALU

0011400800

Unavailable

62

PROTECTION CAP THERMOSWITCH

58311096000

Unavailable

35

HOSE CONNECTOR 4 STROKE 07

77335073000

Unavailable

98

RADIATOR KIT 08-14

00050000131

Unavailable
