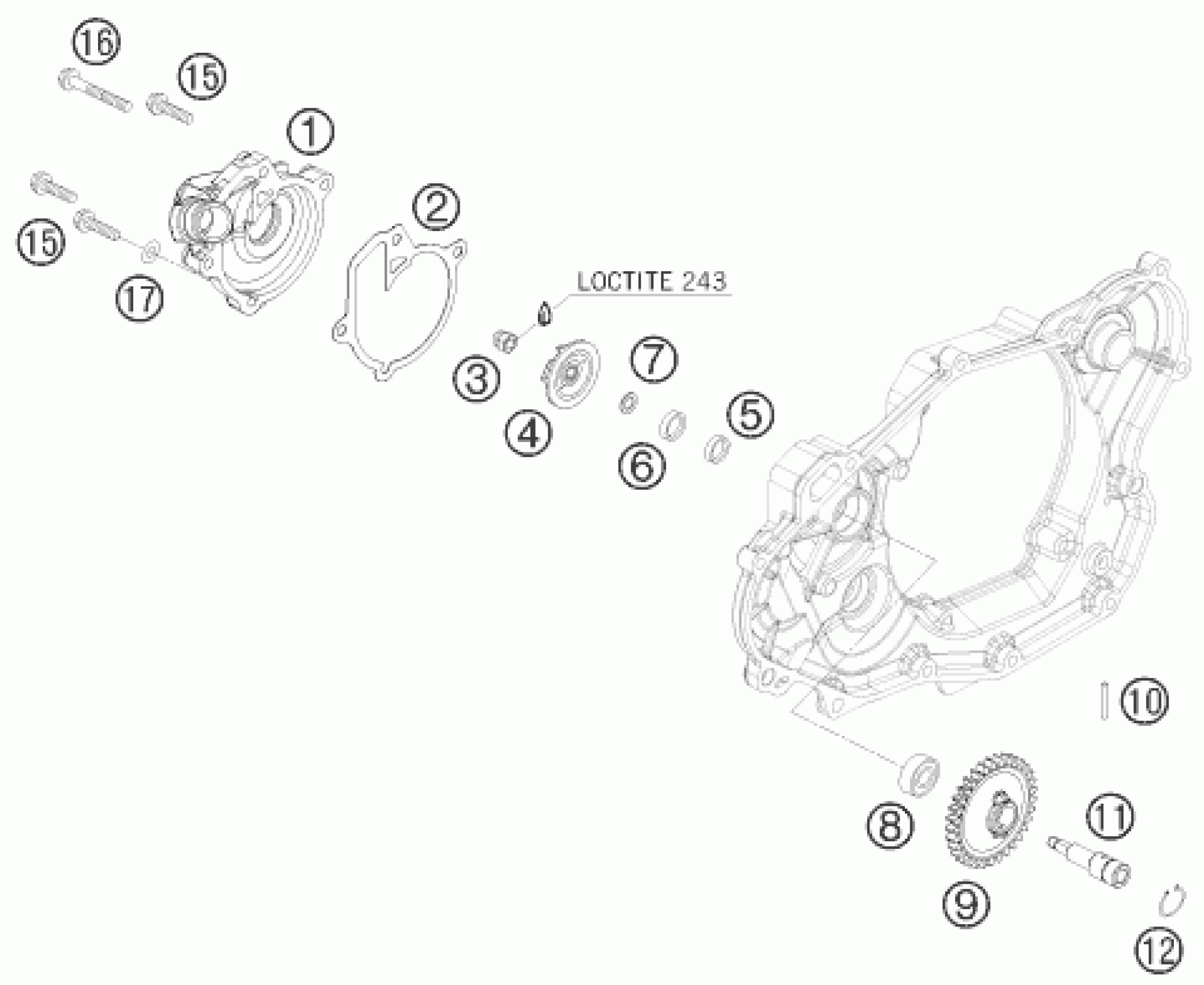

KTM 450 XC-W 2009 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP COVER GREY

7803505200015

Unavailable

2

GASKET WAPU-COVER 08

78035053000

Unavailable

3

HH CAP NUT DIN1587-M 6 SS.

0587060002

Unavailable

4

WATER-PUMP WHEEL 07

77335055100

Unavailable

5

SHAFT SEAL RING 10X24X5,5

0760102455

Unavailable

6

SHAFT SEAL RING 10X24X4

0760102440

Unavailable

7

SPACER SHIM

78035054110

Unavailable

8

BALL BEARING 6000/C3

0625060001

Unavailable

9

DRIVE WHEEL WAPU PLASTIC MAT.

78035054001

Unavailable

10

NEEDLE ROLLER DIN5402 3X21,8

0402032180

Unavailable

11

WATER PUMP SHAFT

78035054100

Unavailable

12

retaining ring DIN 471 14x1

0471140100

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

HH collar screw M6x55 TX30

0025060556

Unavailable

17

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
