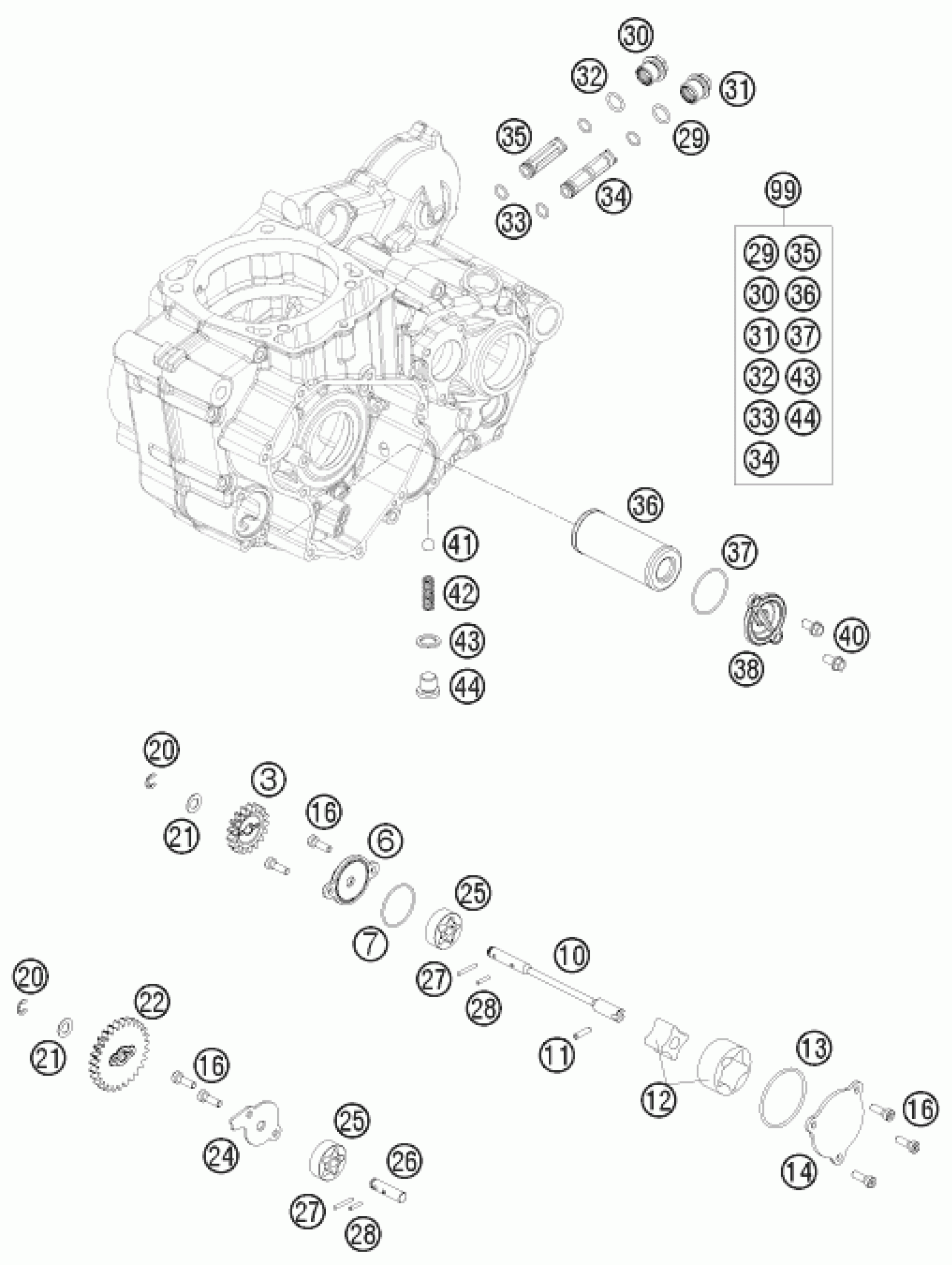

KTM 450 XC-W 2009 LUBRICATING SYSTEM Diagram

#

Description
Price

3

OIL PUMP GEAR 17 T

78038001017

Unavailable

6

OIL PUMP COVER CPL.

78038103233

Unavailable

7

O-RING 32,7X1,3 VITON 75SHORE

0770327013

Unavailable

10

OIL PUMP SHAFT SP-PP

78038102000

Unavailable

11

needle roller NRB 4x15.8 G2

0402041580

Unavailable

12

ROTOR-SET 19MM 03

60038009000

Unavailable

13

O-RING 44,00X2,00 VITON

0770440020

Unavailable

14

OIL PUMP COVER SUCTION PUMP

78038004000

Unavailable

16

CYL. SCREW DIN6912 M5X16 8.8

0984050163S

Unavailable

20

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

21

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

22

OIL PUMP GEAR 27T

78038001027

Unavailable

24

OIL PUMP COVER TRANSM. PUMP

78038003000

Unavailable

25

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

Unavailable

26

OIL PUMP SHAFT TRANSM. PUMP

78038002000

Unavailable

27

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

28

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

29

O-RING 12,50X2,00 NBR 70

0770125020

Unavailable

30

SCREW PLUG M16

78038017000

Unavailable

31

SCREW PLUG M17

78038018000

Unavailable

32

O-RING 12,50X2,00 NBR 70

0770125020

Unavailable

33

O-RING 9X1,5 NBR

0770090015

Unavailable

34

OIL SCREEN 12,5X56,5MM

78038015000

Unavailable

35

OIL SCREEN 11,8x44,5MM

59038015100

Unavailable

36

Oil Filter 07

77338005100

Unavailable

37

O-RING 33,05X1,78

07703305178

Unavailable

38

OIL FILTER COVER 08

77338041200

Unavailable

40

HH collar screw M6x16 TX30

0025060166

Unavailable

41

BALL DIN5401-9

0401090003

Unavailable

42

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

43

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

44

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

99

OILFILTER GASKET KIT 450/530EX

00050000066

Unavailable
