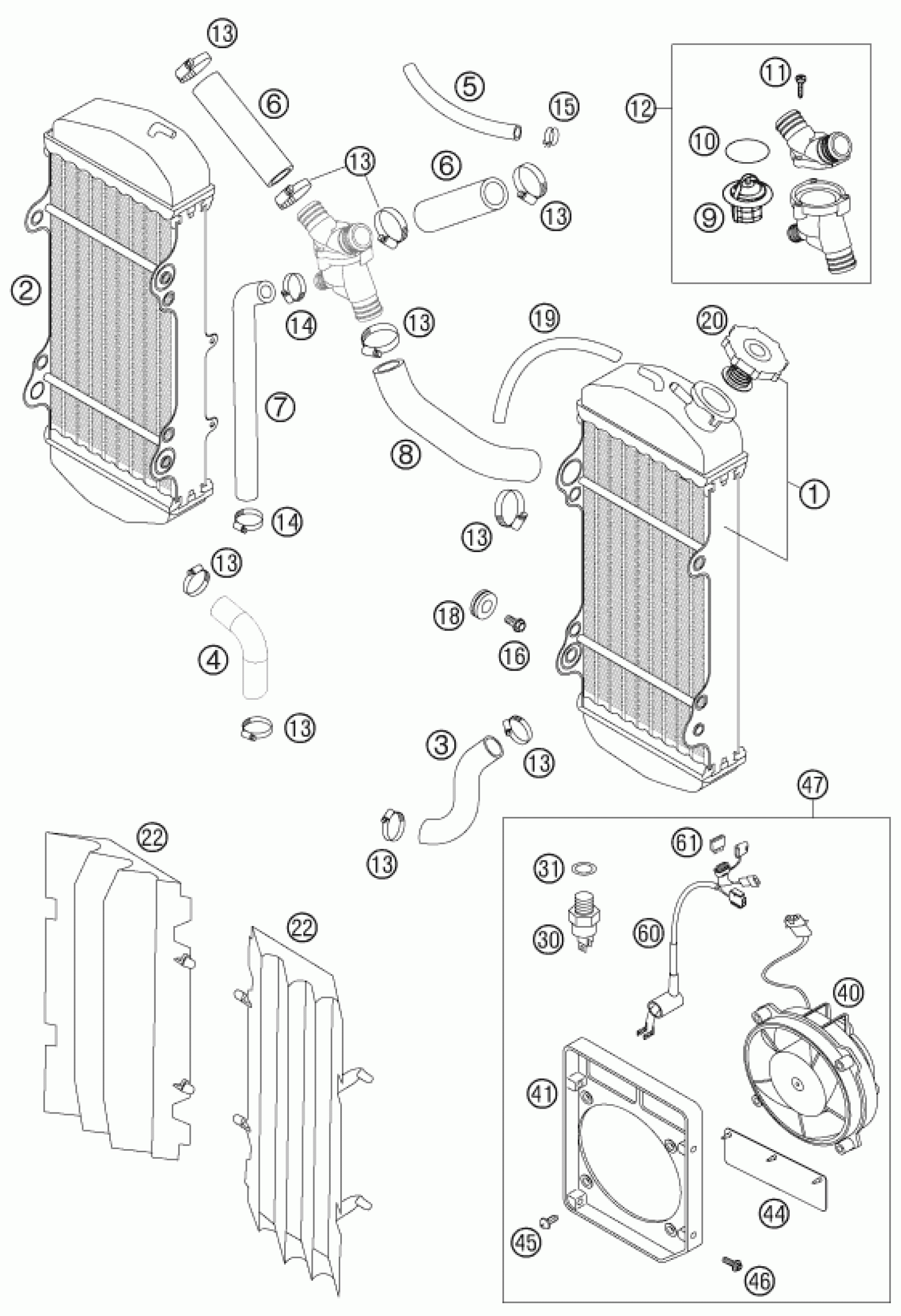

KTM 450 XC-W 2007 COOLING SYSTEM Diagram

#

Description
Price

6

RADIATOR HOSE RAD.-THERMOS. 04

59035126100

Unavailable

4

RADIATOR HOSE R/S RAD.-CYL. 03

59035124100

Unavailable

5

HOSE ID 7,5 PER METER

54435024001

Unavailable

1

RADIATOR L/S 45.407 03

59035007300

Unavailable

2

RADIATOR R/S 45.409 03

59035008400

Unavailable

3

RADIATOR HOSE L/S RAD.-CYL. 03

59035024100

Unavailable

7

RADIATOR HOSE SECONDARY 04

59035025101

Unavailable

8

RADIATOR HOSE THERMOS.-HEAD04

59035025100

Unavailable

9

THERMOSTAT 70 DEGREE 04

59435017000

Unavailable

10

O-RING 32,00X2,00

0770320020

Unavailable

11

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

12

THERMOSTAT CPL. 70 DEGREES 04

59435013044

Unavailable

13

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

14

HOSE CLAMP GEMI 10-16

58335099000

Unavailable

15

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

16

COLLAR SCREW M6X12 TX

0024060123

Unavailable

18

RUBBER SLEEVE D=12MM

41001052000

Unavailable

19

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

20

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

22

RADIATOR PROTECTION BLACK 06

5903504000030

Unavailable

22

RADIATOR PROTECTION ORANGE 03

5903504000004

Unavailable

30

THERMOSWITCH 80-85 DG

58035045000

Unavailable

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

40

FAN CPL. 12V LC4 2000

58435041000

Unavailable

41

FAN CAP 2001

59035044000

Unavailable

44

FAN FLAP RUBBER LC4 2000

58435044050

Unavailable

45

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

46

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

47

FAN CPL. RACING 2001

59035041044

Unavailable

60

FAN WIRING HARNESS 2001

59011079000

Unavailable

61

FUSE 5 A 2003

58011109105

Unavailable
