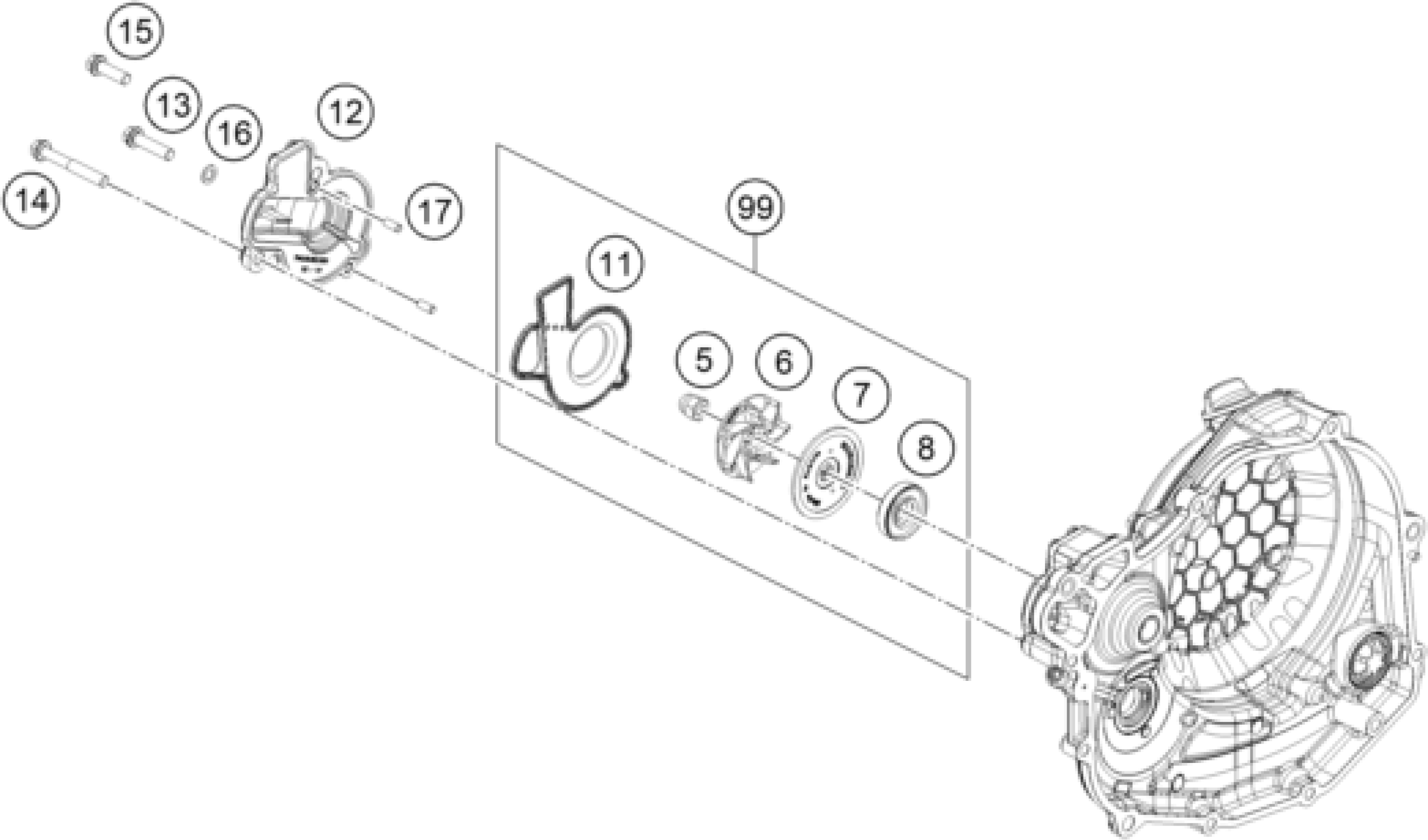

KTM 450 XC-F 2023 WATER PUMP Diagram

#

Description
Price

5

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

6

WATER PUMP ROTOR

81235055020

Unavailable

7

DISC WATER PUMP

81235055110

Unavailable

8

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

11

Gasket with carrier plate

79435053100

Unavailable

12

WATER PUMP COVER

79435052000

Unavailable

13

HH collar screw M6x25 TX30

0025060256

Unavailable

14

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

15

HH collar screw M6x20 TX30

0025060206

Unavailable

16

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

17

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

99

WATER PUMP REP. KIT

79435055015

Unavailable
