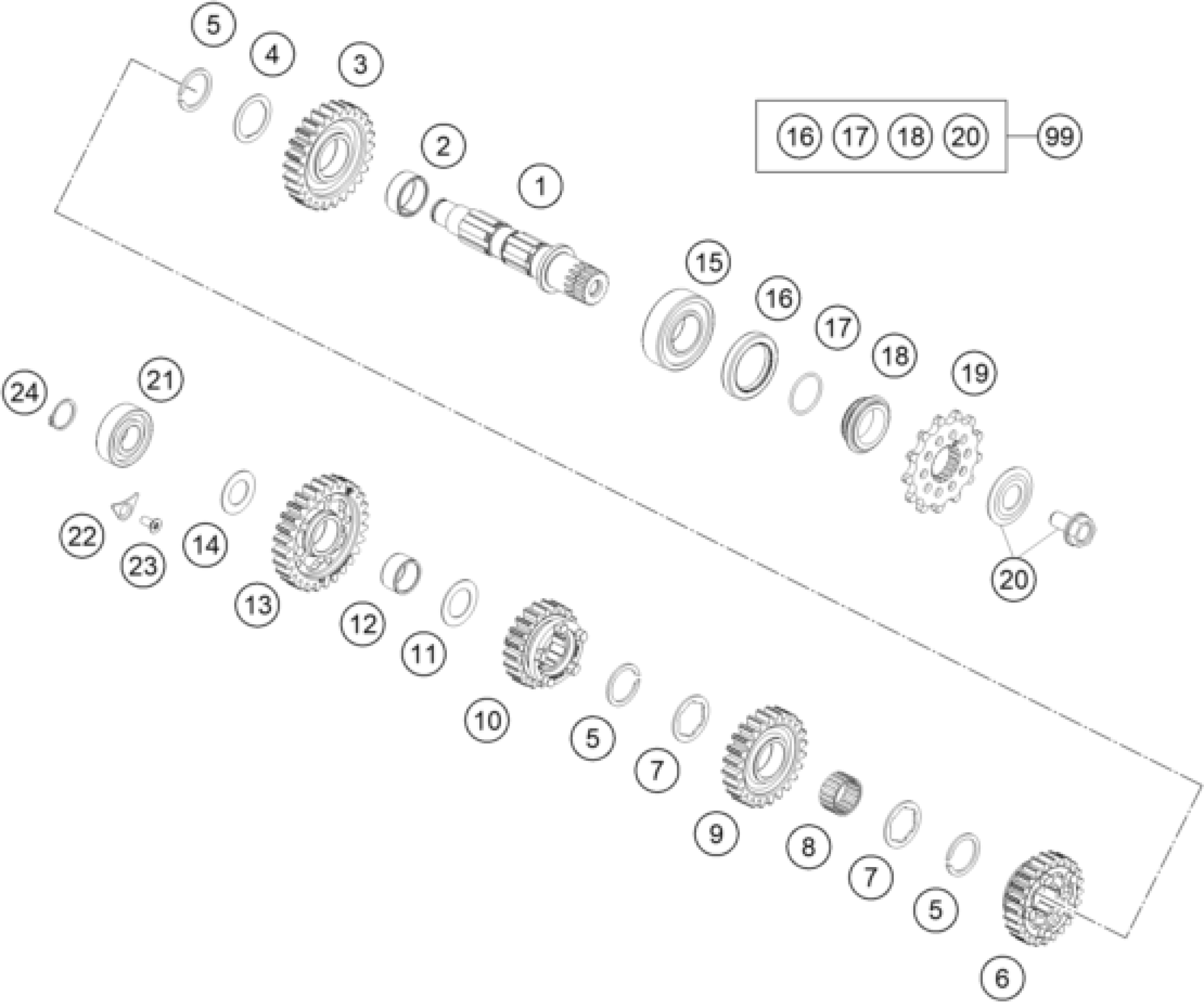

KTM 450 XC-F 2023 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Countershaft

79333010000

Unavailable

2

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

3

Idler gear 2nd.

79333512000

Unavailable

4

Stop disk

79333043000

Unavailable

5

Retaining ring 25x1,65

77033022100

Unavailable

6

Sliding gear 4th

79333514000

Unavailable

7

STOP DISC 25,2X32X1,5

59033030000

Unavailable

8

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

9

Idler gear 3rd

79333513000

Unavailable

10

Sliding gear 5th

79333515000

Unavailable

11

Shim 20x31.9x1

59033080000

Unavailable

12

NEEDLE BEAR. K20X24X13

0405202413

Unavailable

13

Idler gear 1 st.

79333511000

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

cylindrical roller bearing NJ2

49030023000

Unavailable

16

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

17

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

18

SPACER SLEEVE COUNTER

78133014000

Unavailable

19

Sprocket 14-t

79233029014

Unavailable

19

Sprocket 13-t

79233029013

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

21

Ballbearing NTN 6203JR2CM21

0625062038

Unavailable

22

Retaining bracket crankshaft b

75030085100

Unavailable

23

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

24

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
