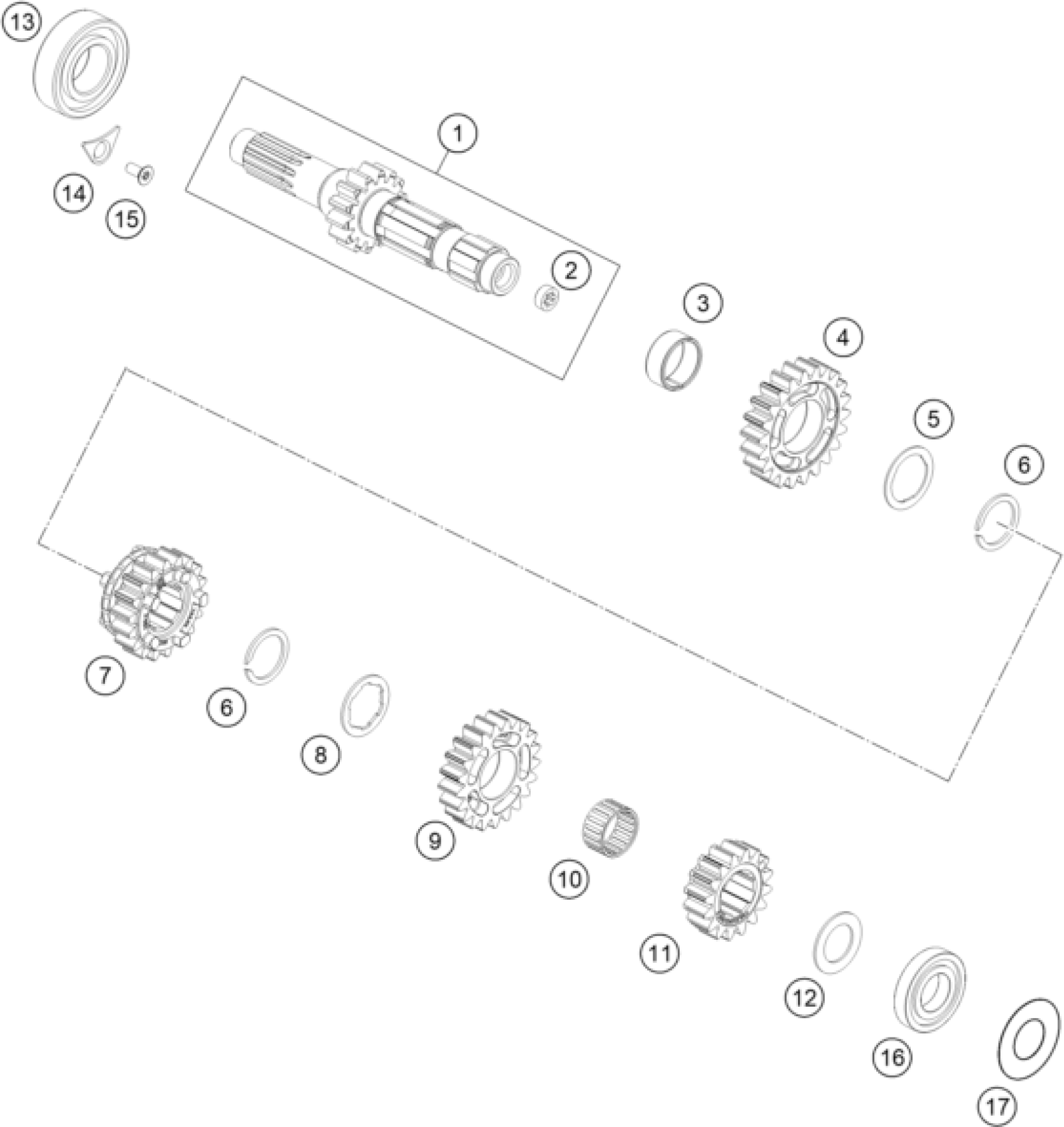

KTM 450 XC-F 2023 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

Main shaft cmpl.

A47033001000

Unavailable

3

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

4

Idle gear 5 th.

79333505000

Unavailable

5

Stop disk

79333043000

Unavailable

6

Retaining ring 25x1,65

77033022100

Unavailable

7

Sliding gear 3 rd.

79333503000

Unavailable

8

Trust washer

79333030000

Unavailable

9

Idle gear 4 th

79333504000

Unavailable

10

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

11

Fixed gear 2nd g/16 teeth

79333002000

Unavailable

12

DISK 20,2X32X1,3

77233015000

Unavailable

13

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

14

Retaining bracket crankshaft b

75030085100

Unavailable

15

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

16

BALL BEARING TM 16004 C4

0625160041

Unavailable

17

SPACER SHIM 21X42X0.2

77233088000

Unavailable

2

bushing

79133001010

Unavailable
