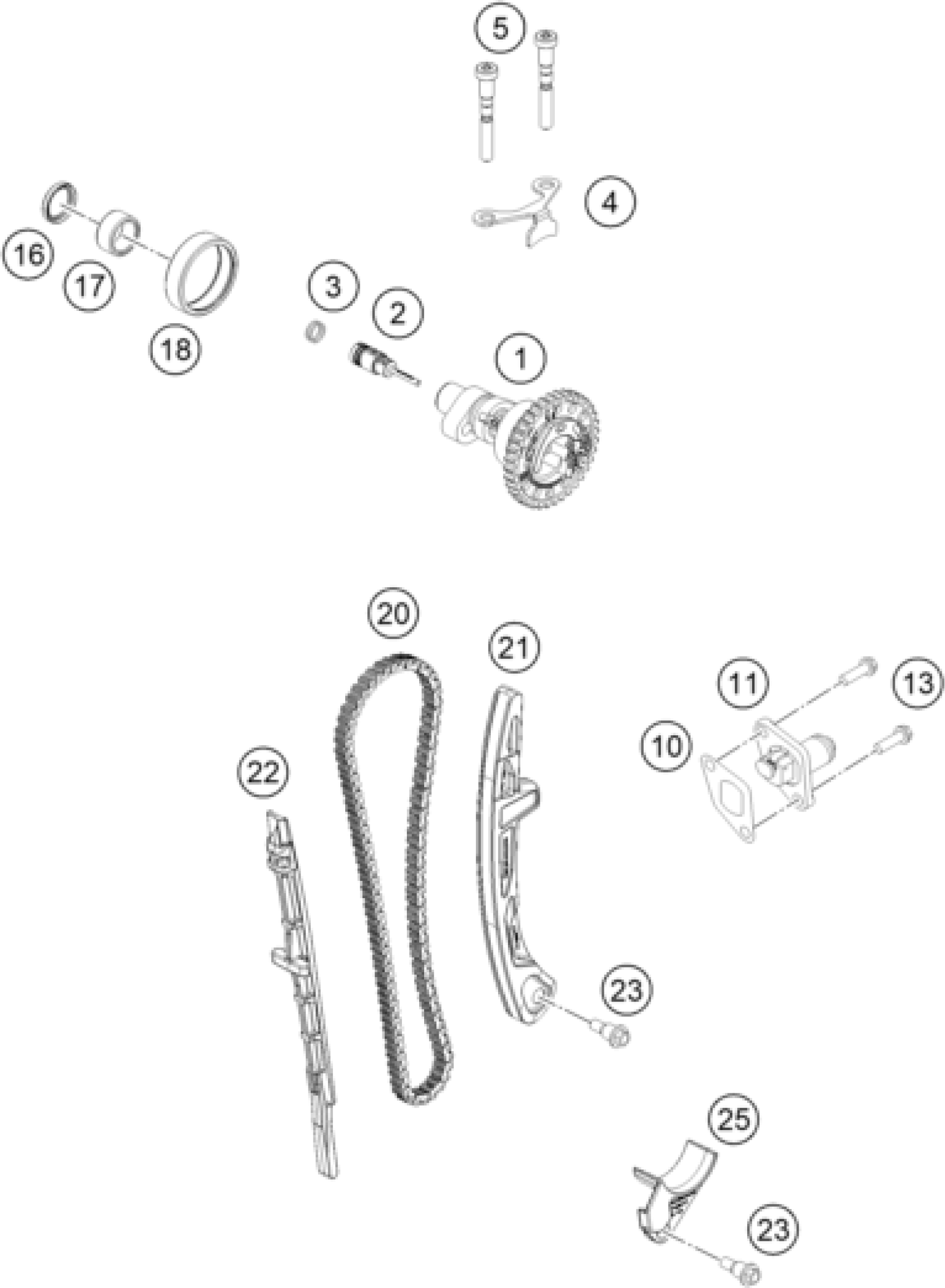

KTM 450 XC-F 2023 TIMING DRIVE Diagram

#

Description
Price

1

Camshaft, cmpl. with decal

A48036010044

Unavailable

2

Breather centrifuge

79536010010

Unavailable

3

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

4

Camshaft bracket

79536012100

Unavailable

10

GASKET TIMING CHAIN TENSIONER

59036003150

Unavailable

11

TIMINGCHAIN TENSIONER CPL.RAC.

59036003000

Unavailable

13

HH collar screw M6x16 TX30

0025060166

Unavailable

16

SHAFT SEAL RING 18X24X4

0760182442

Unavailable

17

NEEDLE BEAR.HK1812 18/24/12 05

0618182412

Unavailable

18

NEEDLE SLEEVE HK4012B40X47X12

0618404712

Unavailable

20

Timing chain

A46036013000

Unavailable

21

Slide rail

79536002100

Unavailable

22

Slide bars

79536001100

Unavailable

23

BUSHING SCREW M6

77236001160

Unavailable

25

FAIL SAFE

79436018000

Unavailable

5

rocker arm shaft bolt

79536084000

Unavailable
