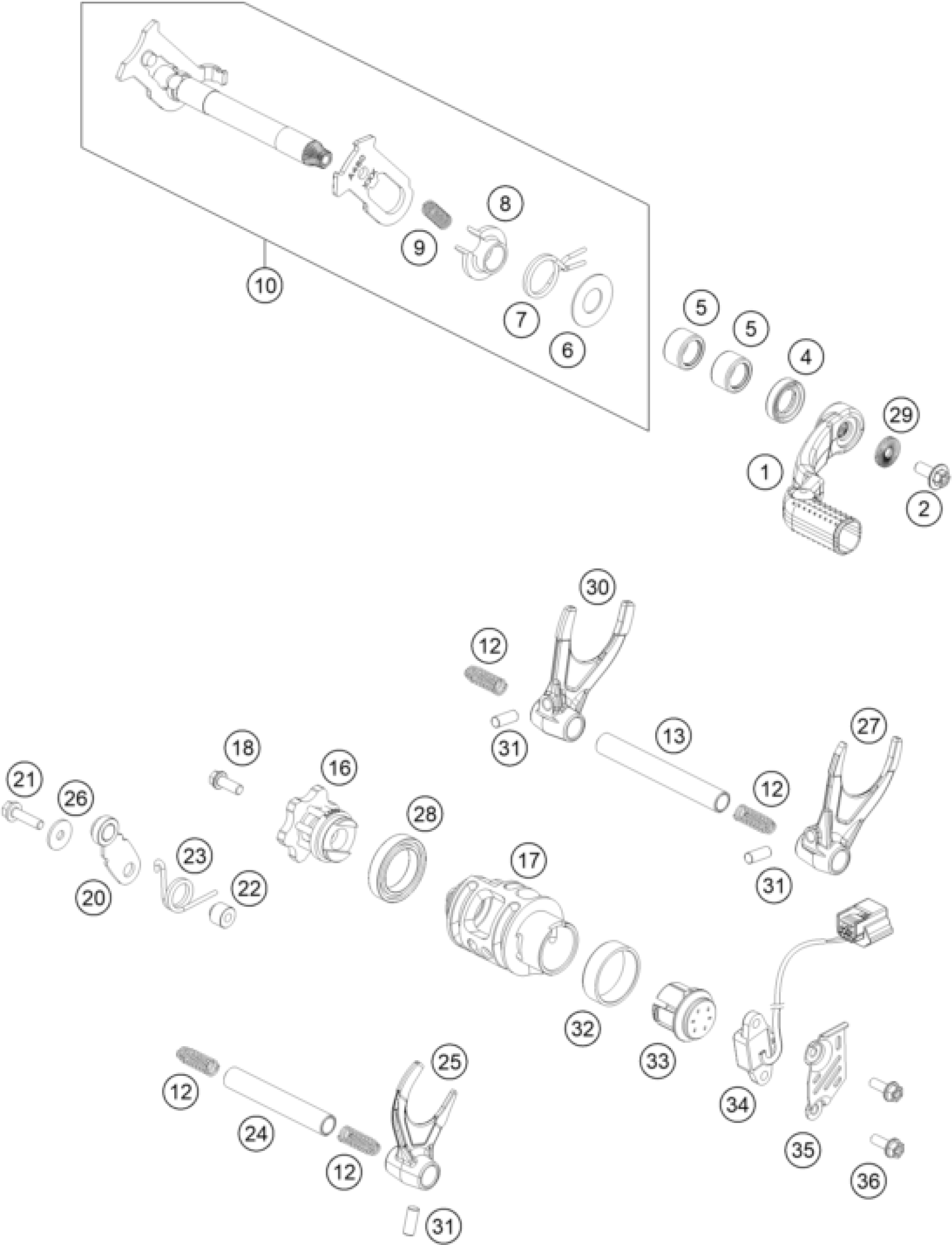

KTM 450 XC-F 2023 SHIFTING MECHANISM Diagram

#

Description
Price

1

Shift lever cmpl.

79234031100

Unavailable

2

HH collar screw M6x15 TX30

0024060156S

Unavailable

4

SHAFT SEAL RING 14X24X6B VITON

0760142461

Unavailable

5

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

6

STOP DISK 14X30X1

54634050000

Unavailable

7

RETURN SPRING 03

54834014000

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

Shift shaft cpl.

A46034005033

Unavailable

13

Shift fork shaft (L=66 mm)

A46034020000

Unavailable

16

Shift star cmpl.

A46034015000

Unavailable

17

Shift drum 5 gear

A47034012000

Unavailable

18

HH collar screw M6x30 TX30

0025060306S

Unavailable

20

Detent arm cmpl.

A46034024044

Unavailable

21

HH collar screw M5x25 TX30

0025050256S

Unavailable

22

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

23

LOCKING LEVER SPRING 03

54834023000

Unavailable

24

Shift fork shaft (L=93 mm)

A46034019000

Unavailable

25

SHIFTING FORK 4TH/5TH GEAR

79234001000

Unavailable

26

washer DIN 9021 A - 5.3

0021050003

Unavailable

27

SHIFTING FORK 2ND GEAR

79234002000

Unavailable

28

Grooved ball bearing 6805 JR C

0410002500700

Unavailable

29

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

30

SHIFTING FORK 1ST/3RD GEAR

79234003000

Unavailable

31

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

32

FRICTION BEARING CONTROLLER

79234012010

Unavailable

33

Magnet bracket cmpl.

79234012020

Unavailable

34

gear position sensor

79211023000

Unavailable

35

Shield gear position sensor

A46011024000

Unavailable

12

Compression spring L=25mm D=0.

58038023400

Unavailable

36

Hex coll. screw M5x14 ISA30 se

0025050146S

Unavailable
