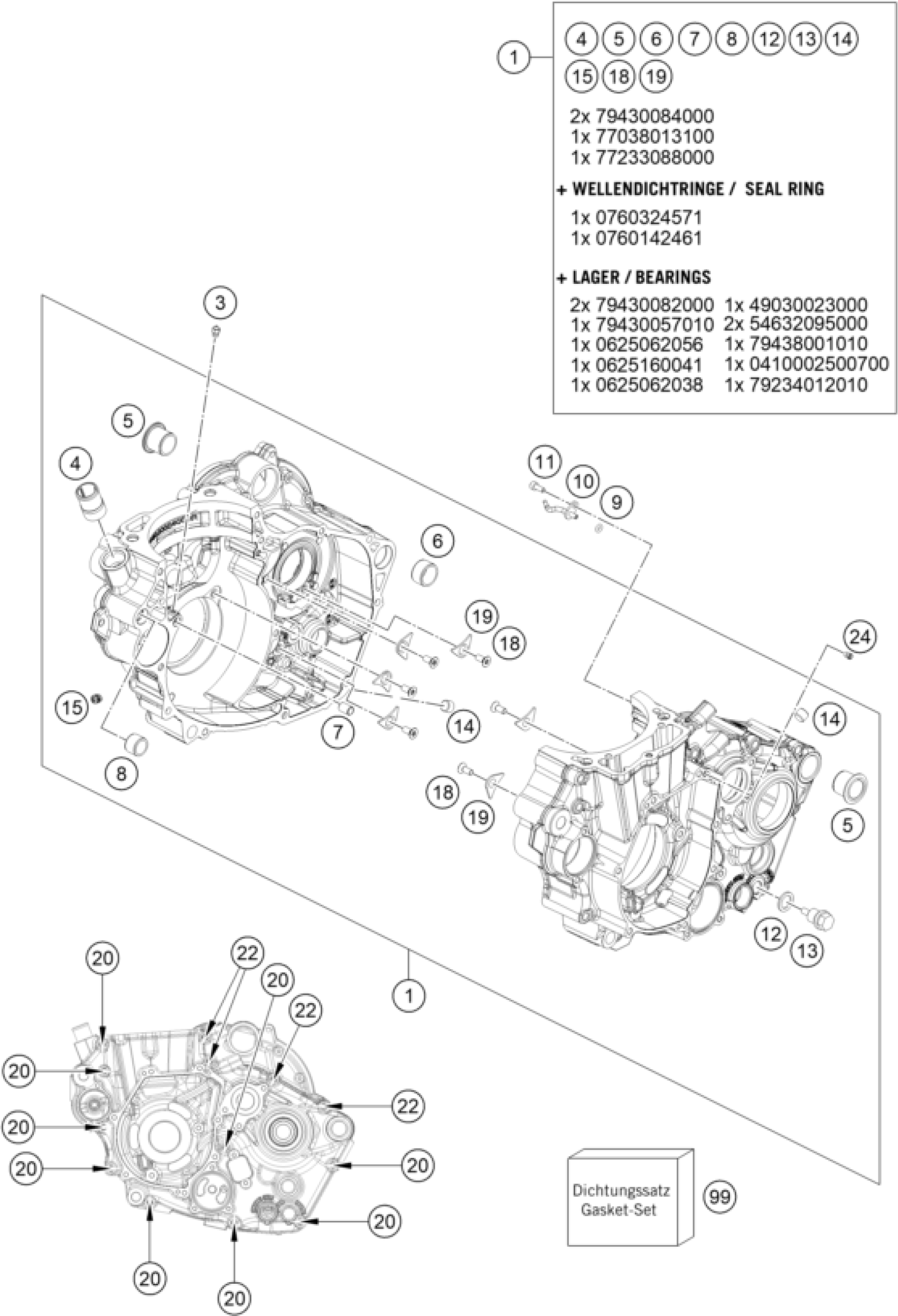

KTM 450 XC-F 2023 ENGINE CASE Diagram

#

Description
Price

1

engine case cpl.

A48030000044

Unavailable

3

oil jet 70 M5

60030063070

Unavailable

4

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

5

Housing bush

79230010000

Unavailable

6

Dowel, 21x12

54830027100

Unavailable

7

Dowel, 6x8x11.5

59030023100

Unavailable

8

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

9

O-RING 3,5X2,00 NBR

0770035020

Unavailable

10

OIL JET ANGLED 70

81230064000

Unavailable

11

Cylinder screw DIN 912-M4x10-8

0912040103S

Unavailable

12

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

13

oildrain plug with magnet

58030021100

Unavailable

14

pipe plug DIN 906 M10x1

0906100100

Unavailable

15

SCREW PLUG

59030296000

Unavailable

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

19

Retaining bracket crankshaft b

75030085100

Unavailable

20

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

22

HH COLLAR SCREW M6X80 TX30

0025060806

Unavailable

99

engine gasket kit MX 450

A48030099000

Unavailable

24

JET 100 BING(44-031/180) M4

59030058000

Unavailable
