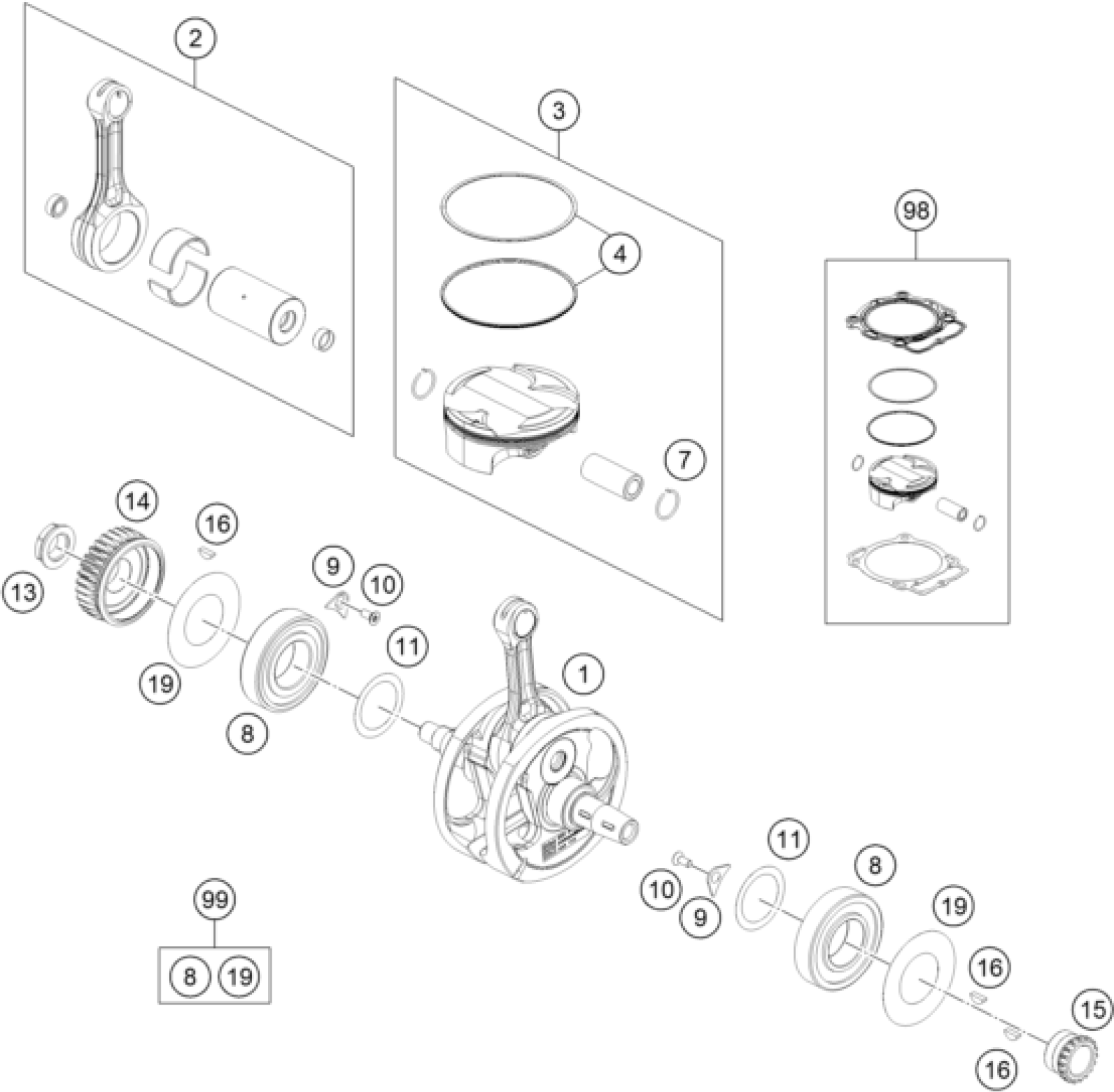

KTM 450 XC-F 2023 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cmpl.

A48030018000

Unavailable

2

Connecting rod repair kit

79530015044

Unavailable

3

Piston gr.I kpl. MX 450

A48030007100 I

Unavailable

3

PISTON Gr. II CPL. MX 450

A48030007100 II

Unavailable

4

PISTON RING KIT

79430130044

Unavailable

7

CIRCLIP

79430174000

Unavailable

8

CYLINDER ROLLER BEARING NJ207

79430082000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

Nut M18x1.5 Precote

0910001801000S

Unavailable

14

Primary gear 29 teeth

A48032023029

Unavailable

15

Timing gear 18 teeth

78036014400

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

BEARING SEAL

79430084000

Unavailable

98

Piston Kit I MX 450

A48030007110 I

Unavailable

98

Piston Kit II MX 450

A48030007110 II

Unavailable

99

CRANKSHAFT REP.KIT 450 SX-F 15

00050002315

Unavailable
