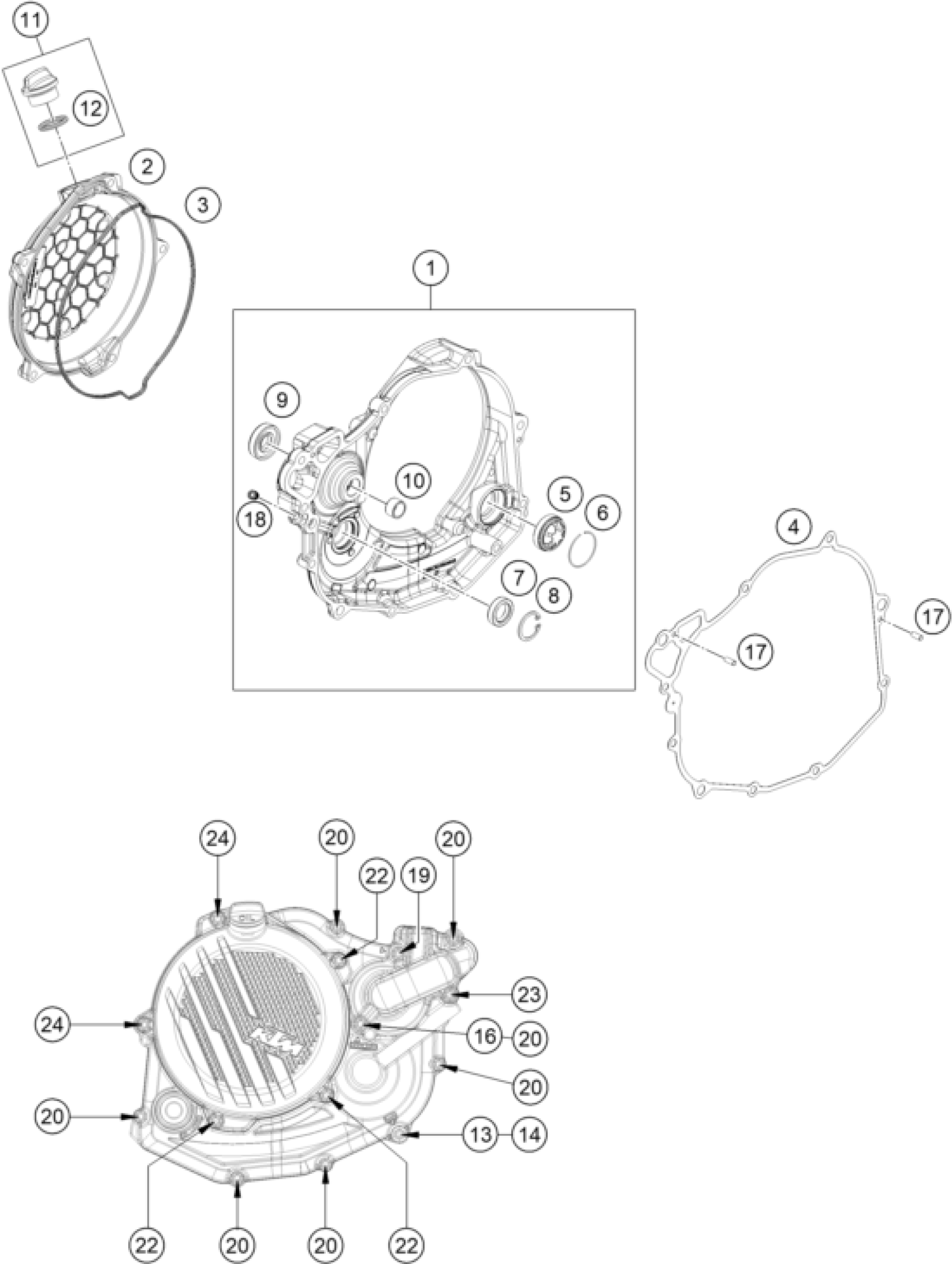

KTM 450 XC-F 2023 CLUTCH COVER Diagram

#

Description
Price

1

clutch cover cpl.

A48030001044

Unavailable

2

Clutch cover outside

A48030026000C1

Unavailable

3

Clutch cover gasket external

A48030027000

Unavailable

4

Inner clutch cover gasket

A48030025000

Unavailable

5

OIL SIGHT GLASS

59030019200

Unavailable

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

7

radial shaft seal 14x24x6 B

0760142460

Unavailable

8

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable

9

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

10

FRICTION BEAR. BUSH BALANC.SH.

79430057010

Unavailable

11

Oil filler cap cmpl. M24x3

79430020033

Unavailable

12

O-RING 19,00X3,00 NBR

0770191015

Unavailable

13

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

14

Screw, M8x20 SW=8 8.8

0000150802000

Unavailable

20

HH collar screw M6x25 TX30

0025060256

Unavailable

22

HH collar screw M6x20 TX30

0025060206

Unavailable

23

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

24

HH collar screw M6x55 TX30

0025060556

Unavailable

17

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

18

SCREW PLUG

59030296000

Unavailable

19

HH collar screw M6x20 TX30

0025060206S

Unavailable

16

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
