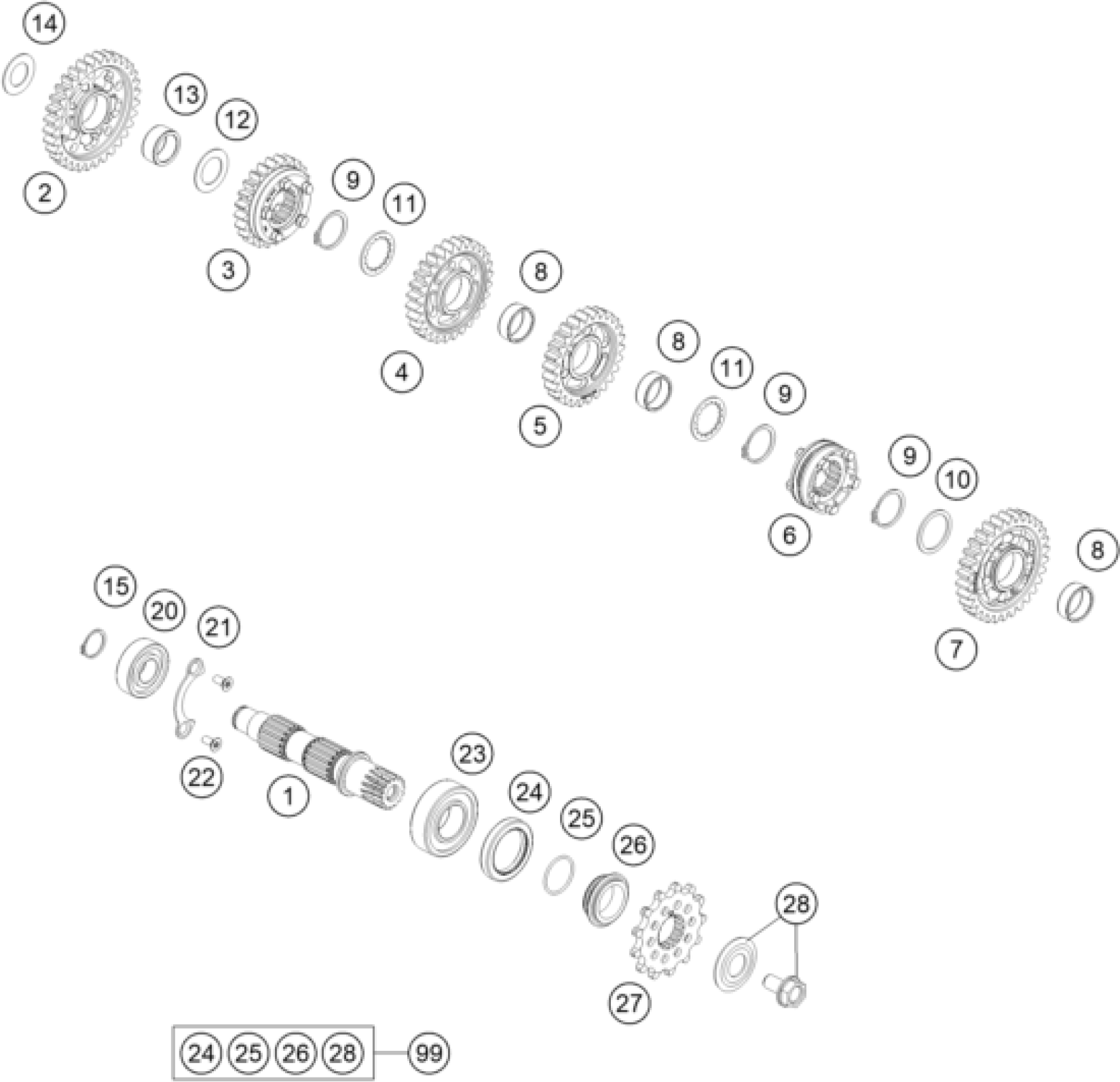

KTM 450 XC- F 2017 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

DRIVEN SHAFT

79433010000

Unavailable

2

IDLER GEAR 1ST G.

79433011000

Unavailable

3

SLIDING GEAR 5TH G.

79433015100

Unavailable

4

IDLER GEAR 3RD G.

79433013000

Unavailable

5

IDLER GEAR 4TH G.

79433014000

Unavailable

6

SHFIT COLLAR

79433017000

Unavailable

7

IDLER GEAR 2ND G.

79433012000

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

9

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

10

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable

11

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

12

Shim 20x31.9x1

59033080000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

20

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

cylindrical roller bearing NJ2

49030023000

Unavailable

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

25

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

26

SPACER SLEEVE COUNTER

78133014000

Unavailable

27

Sprocket 13-t

79233029013

Unavailable

27

Sprocket 14-t

79233029014

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
