SHIFTING MECHANISM

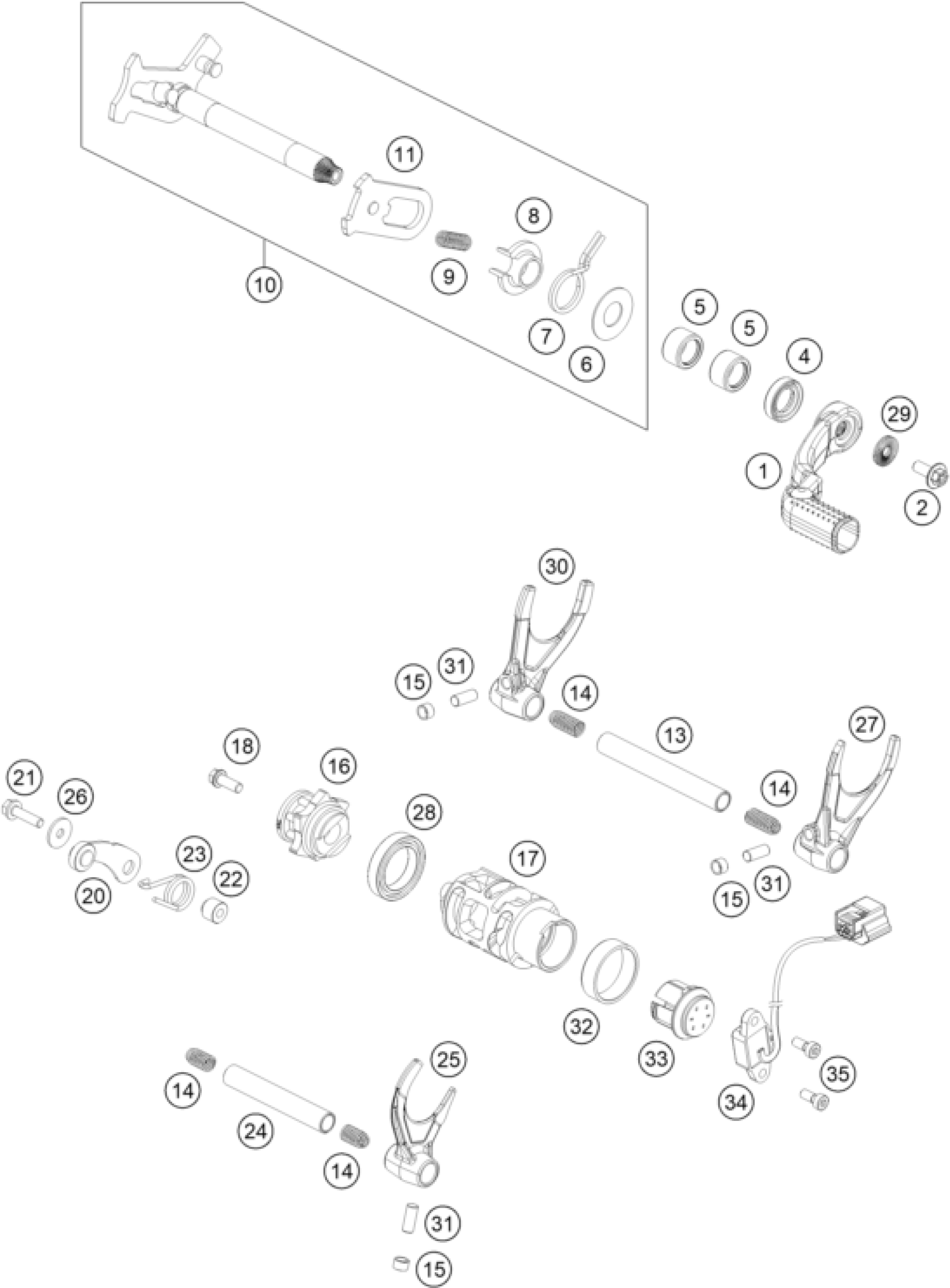

KTM 450 XC- F 2017 SHIFTING MECHANISM Diagram
#
1
SHIFT LEVER CPL.
79434031100
Unavailable
2
HH collar screw M6x15 TX30
0024060156S
Unavailable
4
radial shaft seal 14x24x6 B
0760142460
Unavailable
5
needle sleeve HK 1412 14x20x12
54632095000
Unavailable
6
STOP DISK 14X30X1
54634050000
Unavailable
7
RETURN SPRING 2,2MM '95
54634014100
Unavailable
8
SPRING GUIDE
54634020000
Unavailable
9
TENSIONING SPRING 0,8MM
56534013100
Unavailable
10
SHIFT SHAFT CPL.
79434005133
Unavailable
11
SLIDING PLATE
54634108044
Unavailable
13
GEAR SHIFT RAIL 11,8X91,1MM
79434020000
Unavailable
14
PRESSURE SPRING 0,9MM
58038023200
Unavailable
15
SHIFTING ROLLER 6X8X5,2
50334018100
Unavailable
16
SELECTOR INTERLOCK MECHAN. CPL
79434015000
Unavailable
17
SHIFTING CONTROLLER 5 GEAR
79434112100
Unavailable
18
HH collar screw M6x16 TX30
0025060166
Unavailable
20
LOCKING LEVER CPL.
78134024044
Unavailable
21
HH collar screw M5x20 TX30
0025050206
Unavailable
22
SLEEVE FOR LOCKING LEVER
54634052300
Unavailable
23
ARRESTING LEVER SPRING 03
60034023000
Unavailable
24
GEAR SHIFT RAIL 11,8X74,5MM
79434019000
Unavailable
25
SHIFTING FORK 5TH-6TH GEAR
79434001100
Unavailable
26
washer DIN 9021 A - 5.3
0021050003
Unavailable
27
SHIFTING FORK 2ND-4TH GEAR
79434002100
Unavailable
28
BALL BEARING 61805 C3
0625618050
Unavailable
29
PAIR NORDLOCK WASHER M6
50233041500
Unavailable
30
SHIFTING FORK 1ST-3RD GEAR
79434003100
Unavailable
31
NEEDLE ROLLER DIN5402 6X14,8
0402061480
Unavailable
32
FRICTION BEARING CONTROLLER
79234012010
Unavailable
33
Magnet bracket cmpl.
79234012020
Unavailable
34
gear position sensor
79211023000
Unavailable
35
CYLIND. SCR. DIN6912 M5X12 8.8
0984050123S
Unavailable
