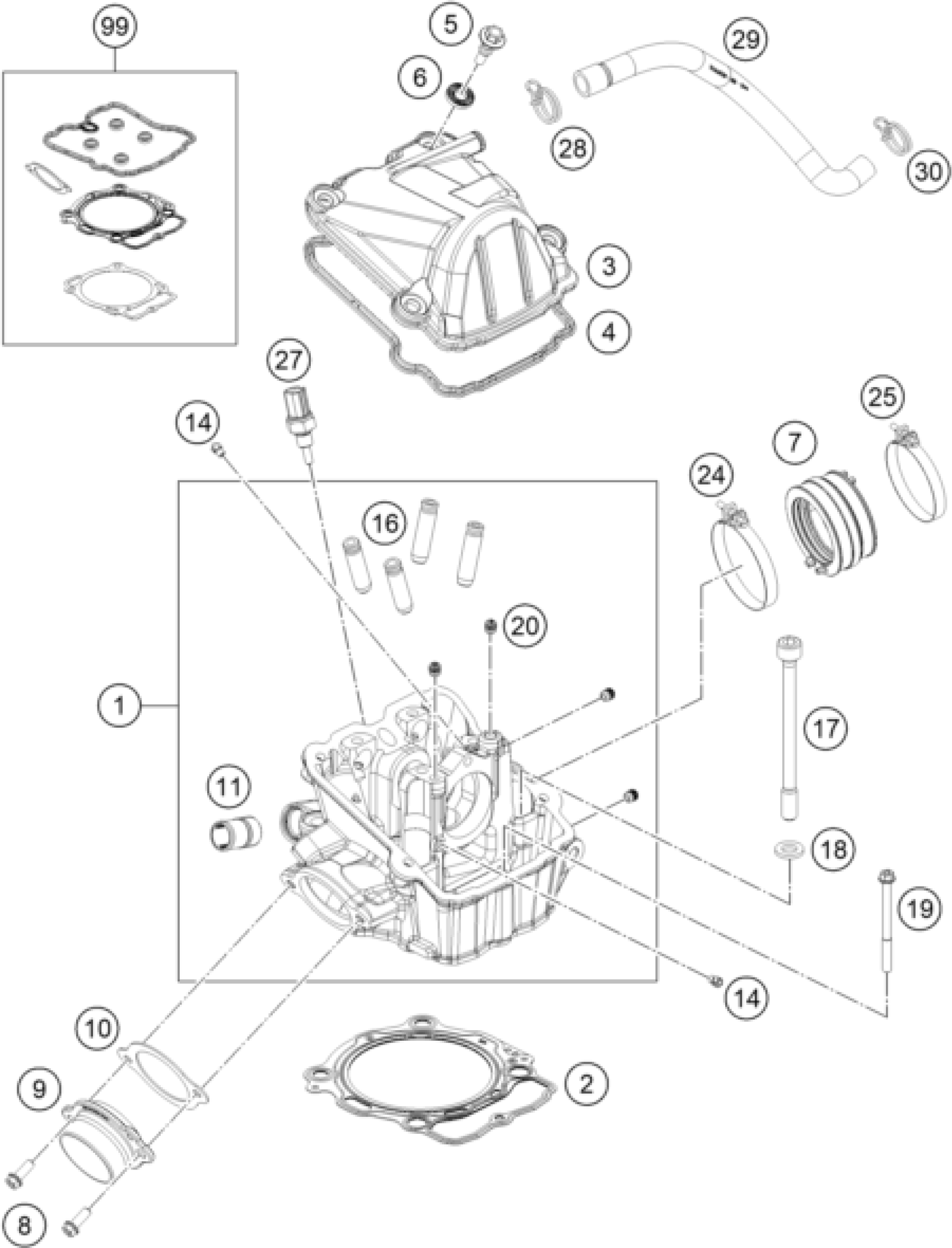

KTM 450 XC- F 2017 CYLINDER HEAD Diagram

#

Description
Price

99

CYL. GASKET SET 450 SX-F 16

79430097000

Unavailable

1

CYLINDER HEAD CPL.

79436020044

Unavailable

2

CYLINDER HEAD GASKET (DN95)

79430036010

Unavailable

3

VALVE COVER

7943605200033

Unavailable

4

VALVE COVER GASKET

79436053000

Unavailable

5

VALVE COVER SCREW

78036054100

Unavailable

6

decoupling element

75036052010

Unavailable

7

RUBBER CUP

79236044100

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

EXHAUST FLANGE

78136139000

Unavailable

10

EXHAUST FLANGE GASKET

78036041000

Unavailable

11

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

14

oil jet 70 M5

60030063070

Unavailable

16

VALVE GUIDE INTAKE

78136025001

Unavailable

17

CYL. HEAD SCREW M10X1,25 L=125

78030044000

Unavailable

18

washer 19x10.5x2.5

77336089010

Unavailable

19

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

20

SCREW PLUG

59030296000

Unavailable

24

Hose clamp GEMI 63mm 05

61036047000

Unavailable

25

Hose clip GEMI 58

77236048000

Unavailable

27

water temperature sensor

79435047000

Unavailable

28

CLAMP YDNAC 10173 (18MM)

58431082300

Unavailable

29

ENGINE BREATHING HOSE

79430087000

Unavailable

30

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable
