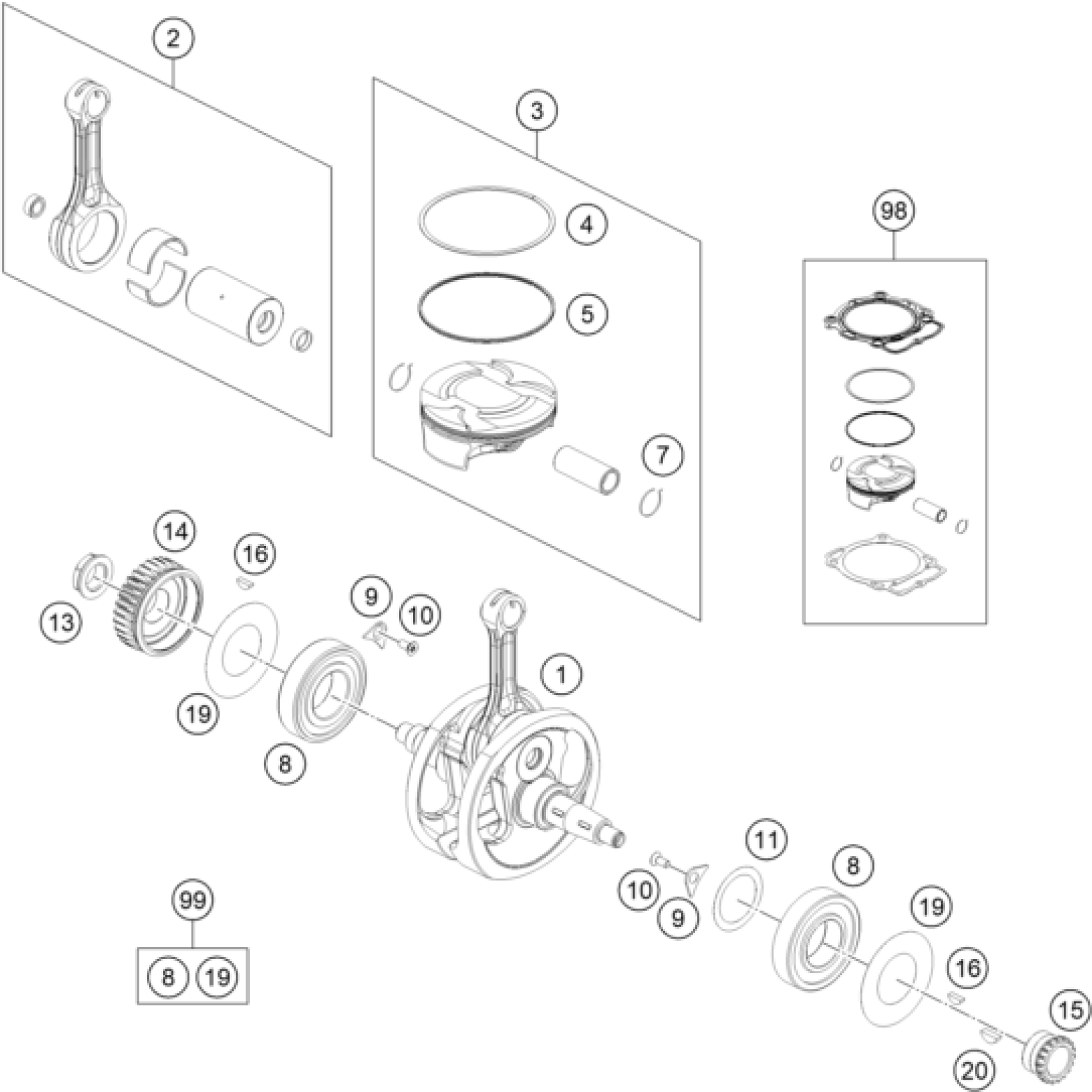

KTM 450 XC- F 2017 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

79430018100

Unavailable

2

CONROD REPAIR KIT

79430015144

Unavailable

3

PISTON I D=95MM

78930007300 I

Unavailable

3

PISTON II D=95MM

78930007300 II

Unavailable

4

COMPRESSION RING

78930030000

Unavailable

5

OIL SCRAPER RING

78930032000

Unavailable

7

CIRCLIP

78930074000

Unavailable

8

CYLINDER ROLLER BEARING NJ207

79430082000

Unavailable

9

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

PRIMARY GEAR 31T

79432023031

Unavailable

15

TIMING GEAR 18T.

78036014200

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

BEARING SEAL

79430084000

Unavailable

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

98

PISTONKIT GR. I 450SX-F 17

78930007310 I

Unavailable

98

PISTON KIT GR. II 450SX-F 17

78930007310 II

Unavailable

99

CRANKSHAFT REP.KIT 450 SX-F 15

00050002315

Unavailable
