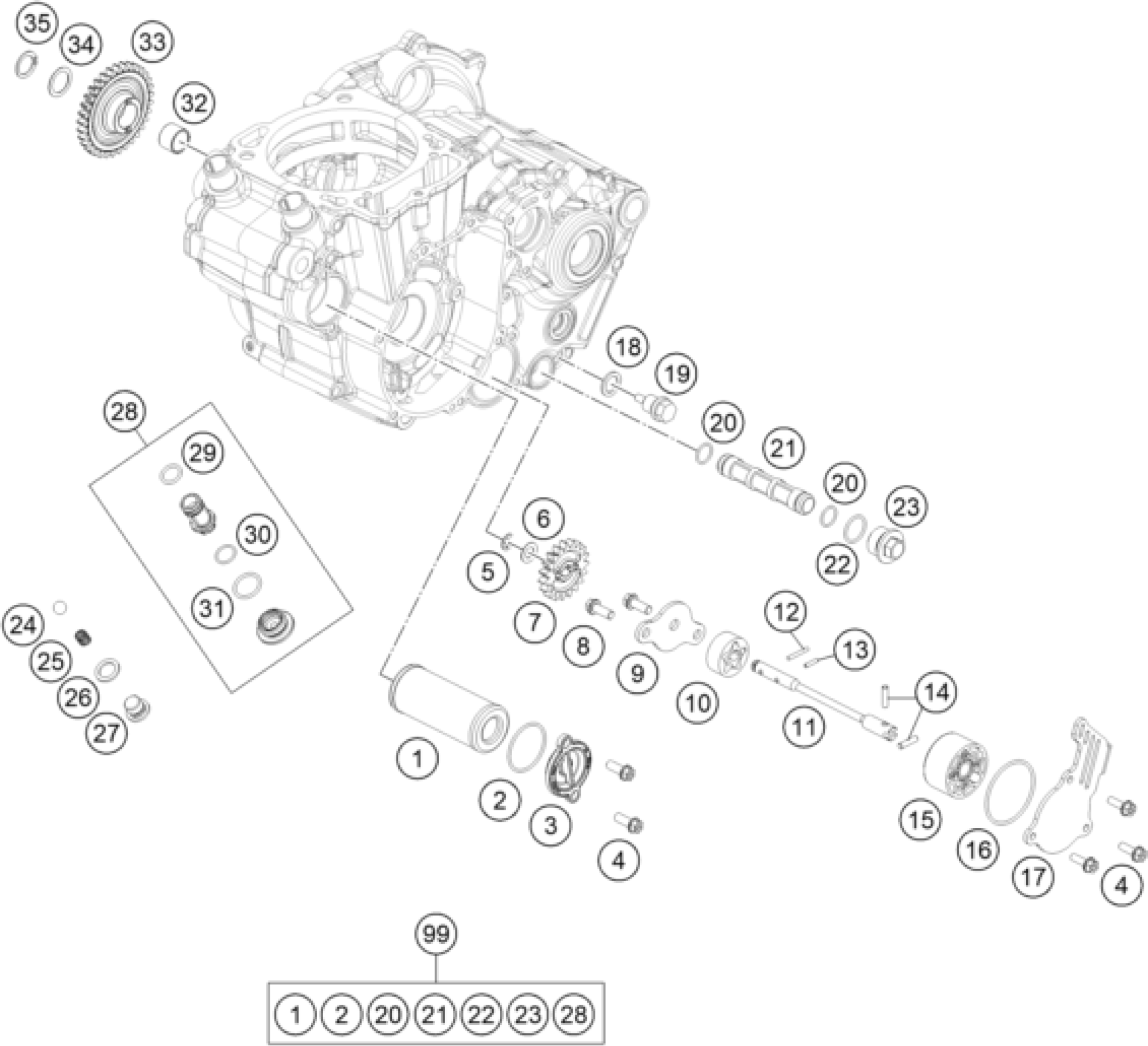

KTM 450 XC- F 2016 LUBRICATING SYSTEM Diagram

#

Description
Price

99

OILFILTER SERVICEKIT SX-F

79438015010

Unavailable

2

O-RING 33,05X1,78

07703305178

Unavailable

3

OIL FILTER COVER 08

77338041200

Unavailable

4

HH collar screw M6x16 TX30

0025060166

Unavailable

5

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

OIL PUMP SPROCKET 19T

79438001019

Unavailable

1

Oil Filter 07

77338005100

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

OIL PUMP COVER

79438003000

Unavailable

10

OILPUMP ROTOR-SET 12MM CPL.

59038011112

Unavailable

11

OIL PUMP SHAFT

79438002000

Unavailable

12

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

13

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

14

needle roller NRB 4x15.8 G2

0402041580

Unavailable

22

O-RING 17,17X1,78 GLO

0770020170

Unavailable

15

ROTOR SET 22MM

61238011100

Unavailable

16

O-RING 44,00X2,00 VITON

0770440020

Unavailable

17

OIL PUMP COVER

79438004100

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

20

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

21

OIL SCREEN

59038016100

Unavailable

23

PLUG M20X1,5 WS=13

59038017100

Unavailable

24

BALL DIN5401-9

0401090003

Unavailable

25

PRESSURE SPRING

79438026000

Unavailable

26

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

27

PLUG SCREW SAS M12X1,5

78036024000

Unavailable

28

OIL SCREEN CPL.

78138015001

Unavailable

29

O-RING 12X2 VITON GREEN

0770012021

Unavailable

30

O-RING 12,5X1,5 NBR

0770125015

Unavailable

31

O-RING 17,00X2,00

0770170200

Unavailable

32

NEEDLE BEARING INNER RING

79438001010

Unavailable

33

IDLER WHEEL 33T

79438001033

Unavailable

34

THRUST WASH. DIN0988-16X22X0,5

0988162205

Unavailable

35

CIRCLIP DIN0471-15X1

0471150010

Unavailable
