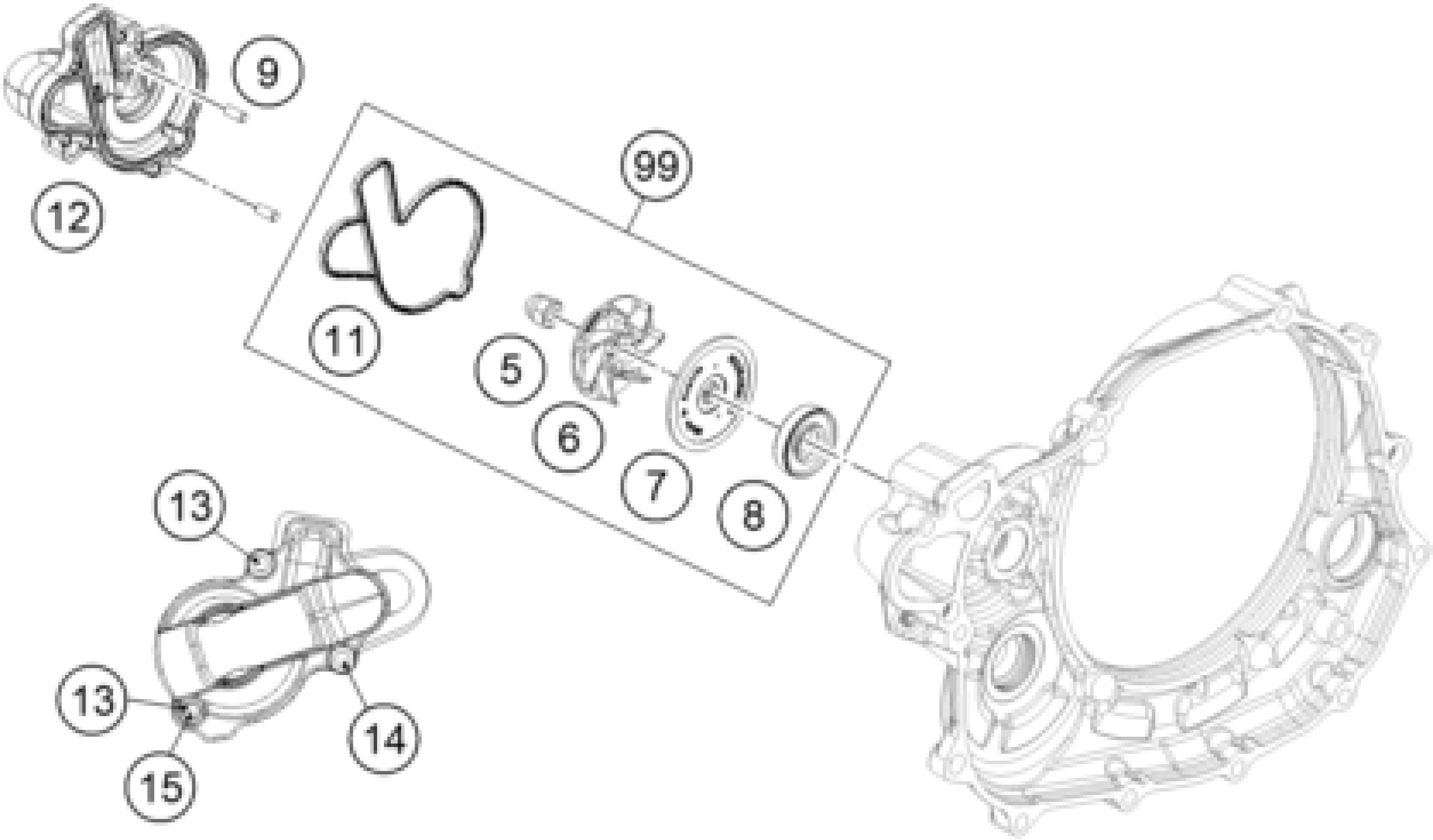

KTM 450 XC- F 2014 WATER PUMP Diagram

#

Description
Price

5

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

6

WATER PUMP ROTOR

81235055020

Unavailable

7

DISC WATER PUMP

81235055110

Unavailable

8

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

11

WATER-PUMP GASKET

78135053000

Unavailable

12

WATER PUMP COVER CPL.

78135052000

Unavailable

13

HH collar screw M6x25 TX30

0025060256

Unavailable

14

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

15

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

99

WATER PUMP REP. KIT 12-14

81235055015

Unavailable

9

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable
