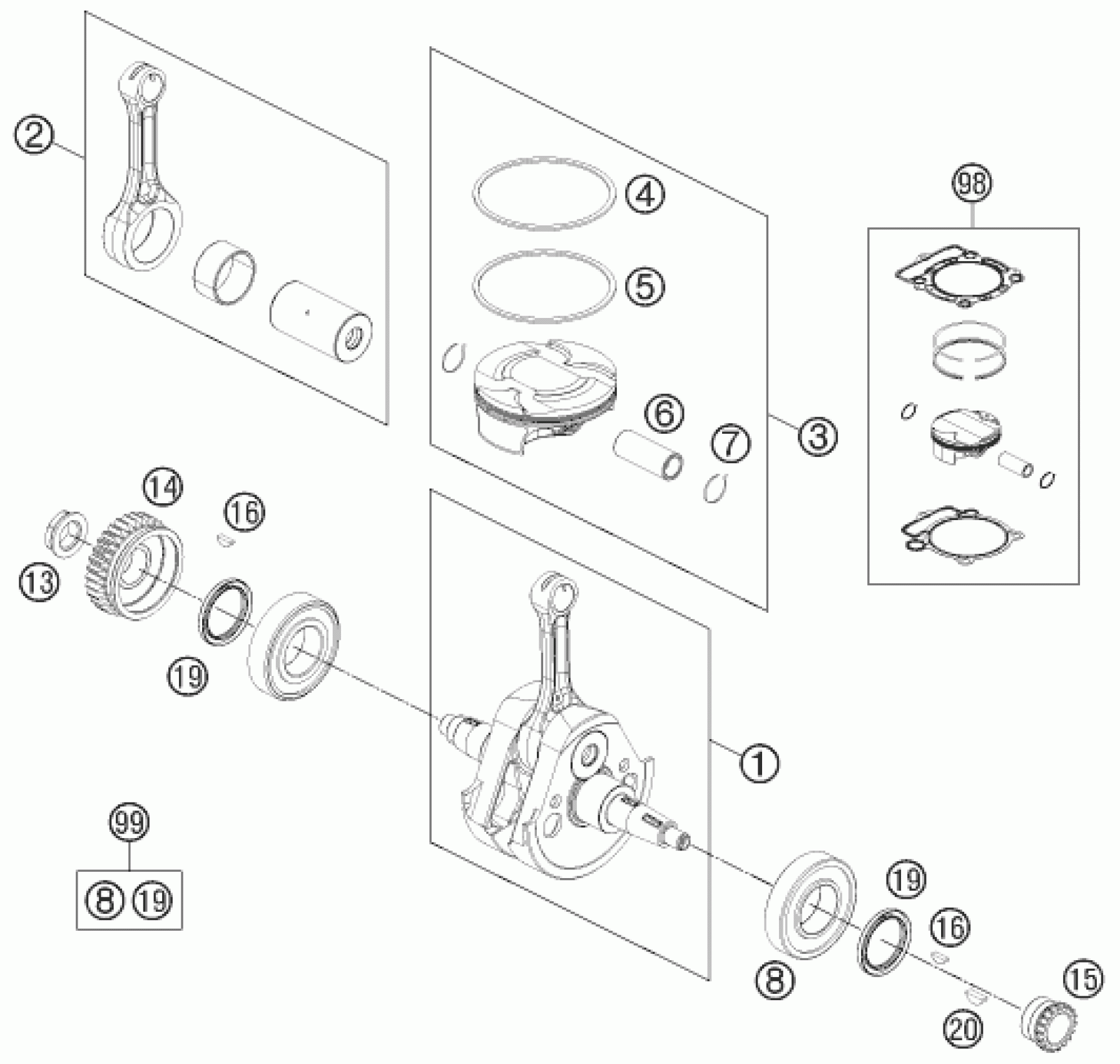

KTM 450 XC- F 2014 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

78930018000

Unavailable

2

CON. ROD. REP. KIT

78930015044

Unavailable

3

PISTON D=95MM

78930007100 I

Unavailable

3

PISTON D=95MM

78930007100 II

Unavailable

4

COMPRESSION RING

78930030000

Unavailable

5

OIL SCRAPER RING

78930032000

Unavailable

6

PISTON PIN

78930033000

Unavailable

7

CIRCLIP

78930074000

Unavailable

8

BALL BEARING 6207 TM-SX07E 39

0625062071

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

PRIMARY GEAR

78132000032

Unavailable

15

TIMING GEAR 18T.

78036014200

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

SHAFT SEAL RING 35X47X7 VITON

0760354774

Unavailable

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

98

PISTON KIT GR.I 450 SX-F 13-14

00050000218

Unavailable

98

PISTON KIT GR.II 450 SX-F13-14

00050000219

Unavailable

99

CRANKSHAFT REP. KIT 450 SX-F13

00050002310

Unavailable
