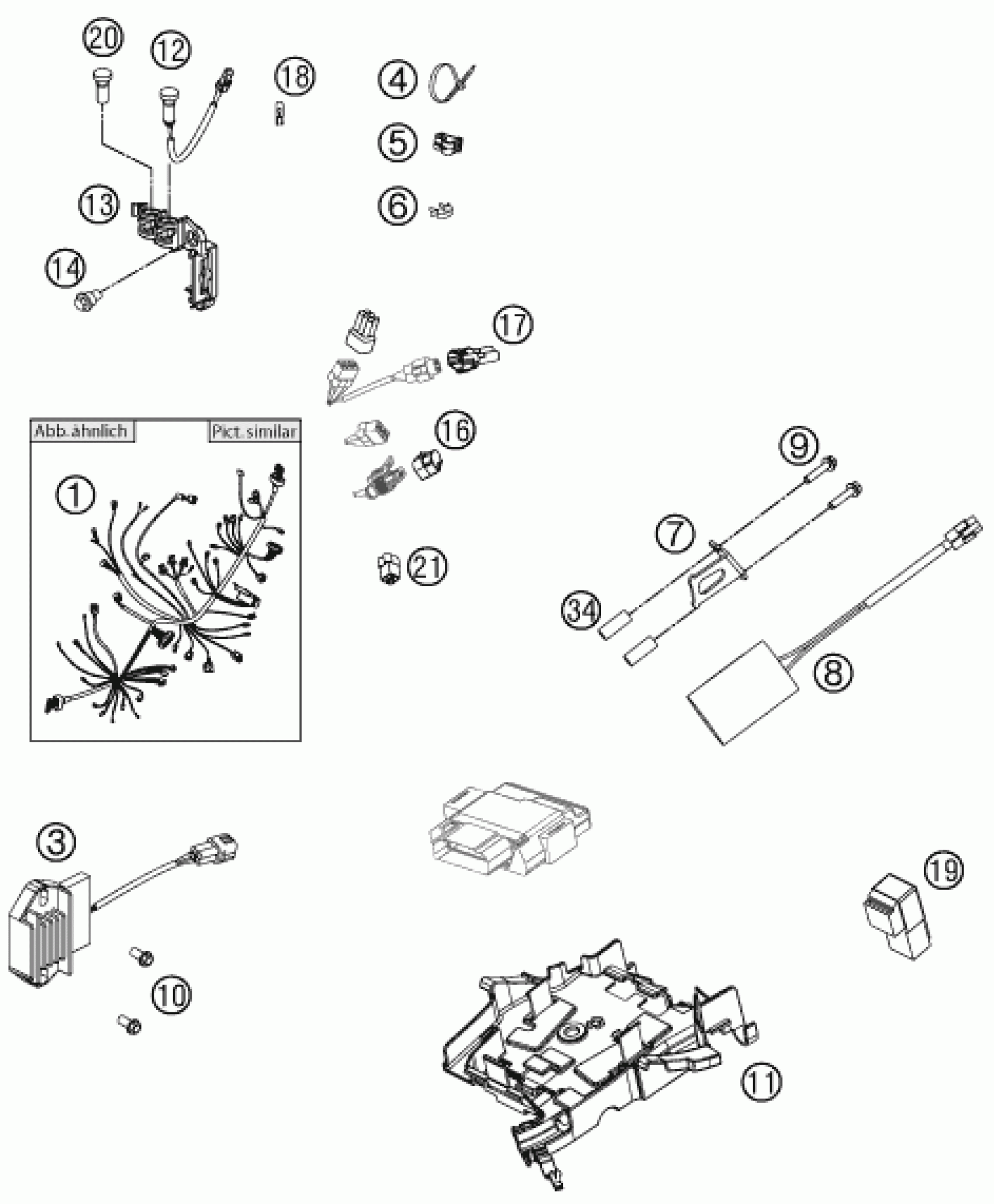

KTM 450 XC- F 2013 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS XC-F 13

77711075100

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

RETAINING PLATE CONDENSATOR

77711036000

Unavailable

8

Capacitor

77711035000

Unavailable

9

HH COLLAR SCREW M5X30 TX30

0025050306

Unavailable

12

INDICATOR LIGHT LED YELLOW FI

81214083000

Unavailable

13

SUPPORT INDICATOR LIGHT XC

77214098100

Unavailable

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

16

DUMMY PLUG MAPSELECTSWITCH

77211010050

Unavailable

17

END PLUG CAN-BUS 08

69011040000

Unavailable

18

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

19

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

20

INDICATOR LIGHT RESERVE

81214086000

Unavailable

21

DUMMY PLUG AN 4-PIN

81211096000

Unavailable

34

BUSHING CONENSATOR BRACKET

77711036050

Unavailable

10

HH collar screw M6x20 TX30

0025060206

Unavailable

11

ELECTRIC CASE

77211094100

Unavailable
