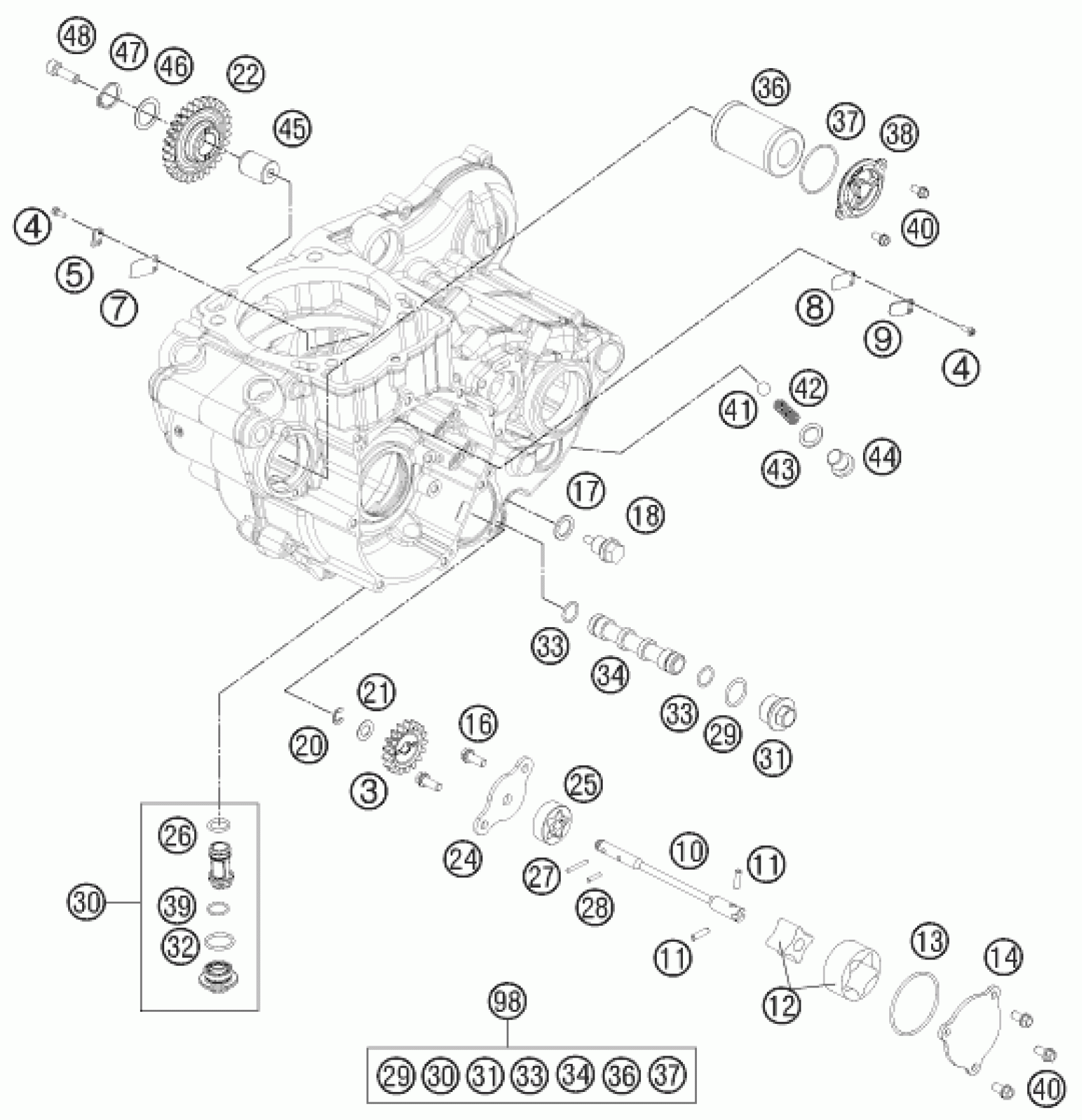

KTM 450 XC- F 2013 LUBRICATING SYSTEM Diagram

#

Description
Price

3

OIL PUMP GEAR 17 T

78038001017

Unavailable

4

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

Unavailable

5

STOP SHEET MEMBRANE 07

75030003050

Unavailable

7

MEMBRANE 07

75030003051

Unavailable

8

MEMBRAN CRANKCASE

81205027003

Unavailable

9

TAB WASHER MEMBRAN CSC

81205027004

Unavailable

10

OIL PUMP SHAFT SP-DP

78138102000

Unavailable

11

needle roller NRB 4x15.8 G2

0402041580

Unavailable

12

ROTOR-SET CPL. 22MM

61238111000

Unavailable

13

O-RING 44,00X2,00 VITON

0770440020

Unavailable

14

OIL PUMP COVER SUCTION PUMP

78038004000

Unavailable

16

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

17

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

18

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

20

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

21

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

22

IDLER GEAR 1 29Z

78138001029

Unavailable

24

OIL PUMP COVER

78138003000

Unavailable

25

OILPUMP ROTOR 12MM G-95R/003

59038011012

Unavailable

26

O-RING 12X2 VITON GREEN

0770012021

Unavailable

27

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

28

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

29

O-RING 17,17X1,78 GLO

0770020170

Unavailable

30

OIL SCREEN CPL.

78138015001

Unavailable

31

PLUG M20X1,5 WS=13

59038017000

Unavailable

32

O-RING 17,00X2,00

0770170200

Unavailable

33

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

34

OIL SCREEN

59038016100

Unavailable

36

OIL FILTER WITH GASKET 06

77038005044

Unavailable

37

O-RING 39,34X2,62

07700390261

Unavailable

38

oil filter cover

75038041200

Unavailable

39

O-RING 12,5X1,5 NBR

0770125015

Unavailable

40

HH collar screw M5x16 TX30

0025050166

Unavailable

41

BALL DIN5401-9

0401090003

Unavailable

42

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

43

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

44

PLUG SCREW SAS M12X1,5

78036024000

Unavailable

45

BUSHING PIN

78040028000

Unavailable

46

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable

47

CIRCLIP DIN0471-17X1

0471170010

Unavailable

48

AH SCREW DIN0912-M 6X20 SS

0912060208

Unavailable

98

OILFILTER SERVICEKIT SX-F 15

78938015010

Unavailable
