CLUTCH

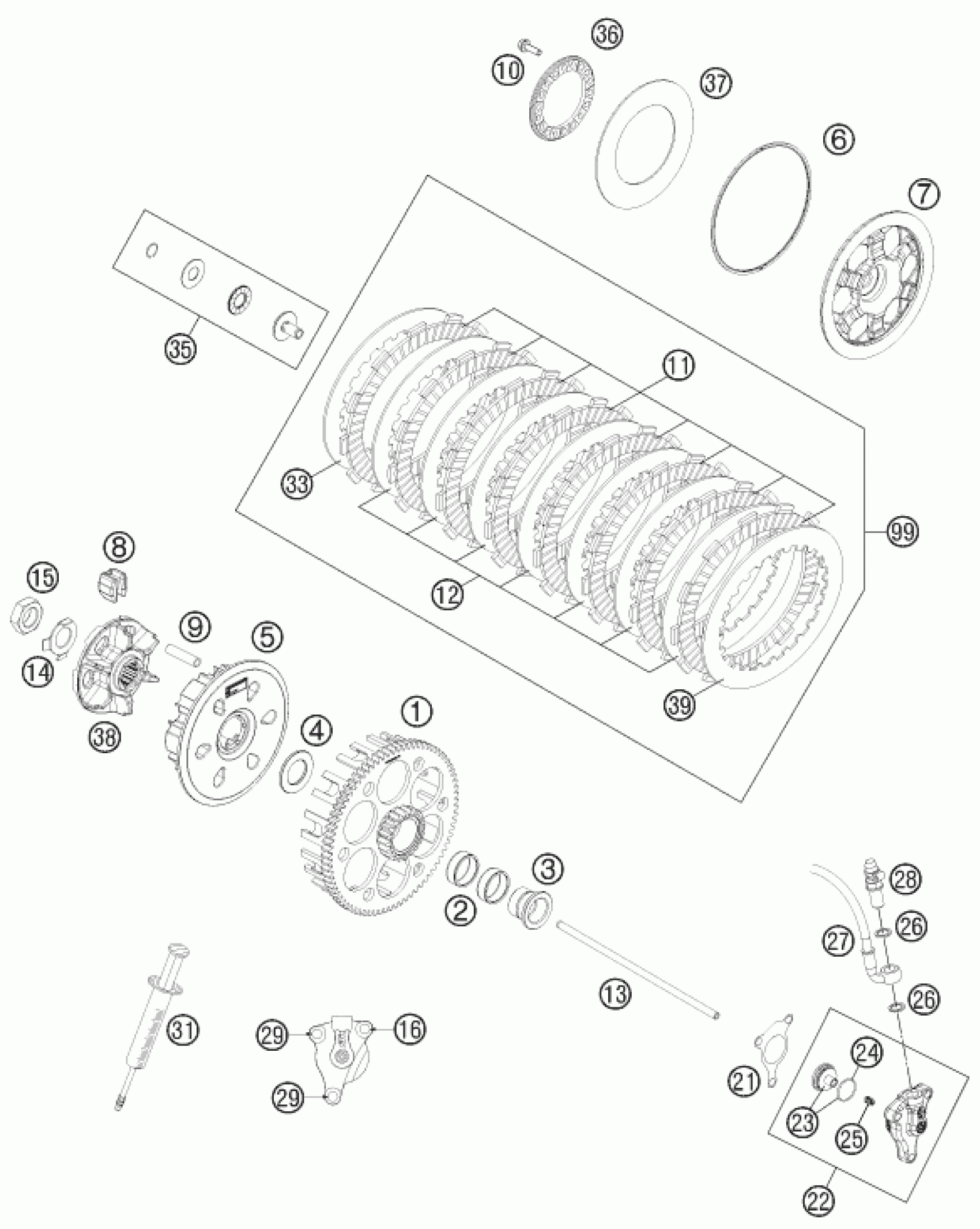

KTM 450 XC- F 2013 CLUTCH Diagram
#
16
HH collar screw M6x30 TX30
0025060306
Unavailable
1
CLUTCH CAGE
78132001076
Unavailable
2
NEEDLE BEAR K 25X29X10
0405252910
Unavailable
3
COLLARSLEEVE
78132015100
Unavailable
4
WASHER 21,8 X 37 X 3
77232009100
Unavailable
5
INNER CLUTCH HUB
78132002008
Unavailable
6
WASHER 112X118X1.5
78132013000
Unavailable
7
PRESSURE PLATE
78132003000
Unavailable
8
DAMPING RUBBER
78132025100
Unavailable
9
SLEEVE 7,5X33.4
78132004000
Unavailable
10
HH collar screw M5x16 TX30
0025050166
Unavailable
11
LINING DISC 2MM 04
59032011100
Unavailable
12
INTERMEDIATE DISC 1,4MM 2002
59032010200
Unavailable
13
PUSH ROD
78132054100
Unavailable
14
TAB WASHER
78132018000
Unavailable
15
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
21
GASKET FOR SLAVE CYLINDER
59032065000
Unavailable
22
OUTPUT CYLINDER CPL. 06
54832061044
Unavailable
23
PISTON CPL.
54832066000
Unavailable
24
O-RING
54832067000
Unavailable
25
PRESSURE SPRING
54832069000
Unavailable
26
sealing ring DIN 7603 10x14x1
0603100141
Unavailable
27
CLUTCH PIPE
78132063000
Unavailable
28
BLEEDER SCREW CPL. 05
62513020000
Unavailable
29
HH collar screw M6x20 TX30
0025060206
Unavailable
31
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
33
INTERMEDIATE DISC 1MM 2002
59032010100
Unavailable
35
PRESSURE PIECE CPL.
78132057044
Unavailable
36
SPRING RING
78132006100
Unavailable
37
BELLEVILLE SPRING 71X115X1,5 I
78132005000
Unavailable
38
HUB
78132002111
Unavailable
99
CLUTCH DISC KIT
78932010033
Unavailable
39
INTERMEDIATE DISC 1MM
78932010000
Unavailable
