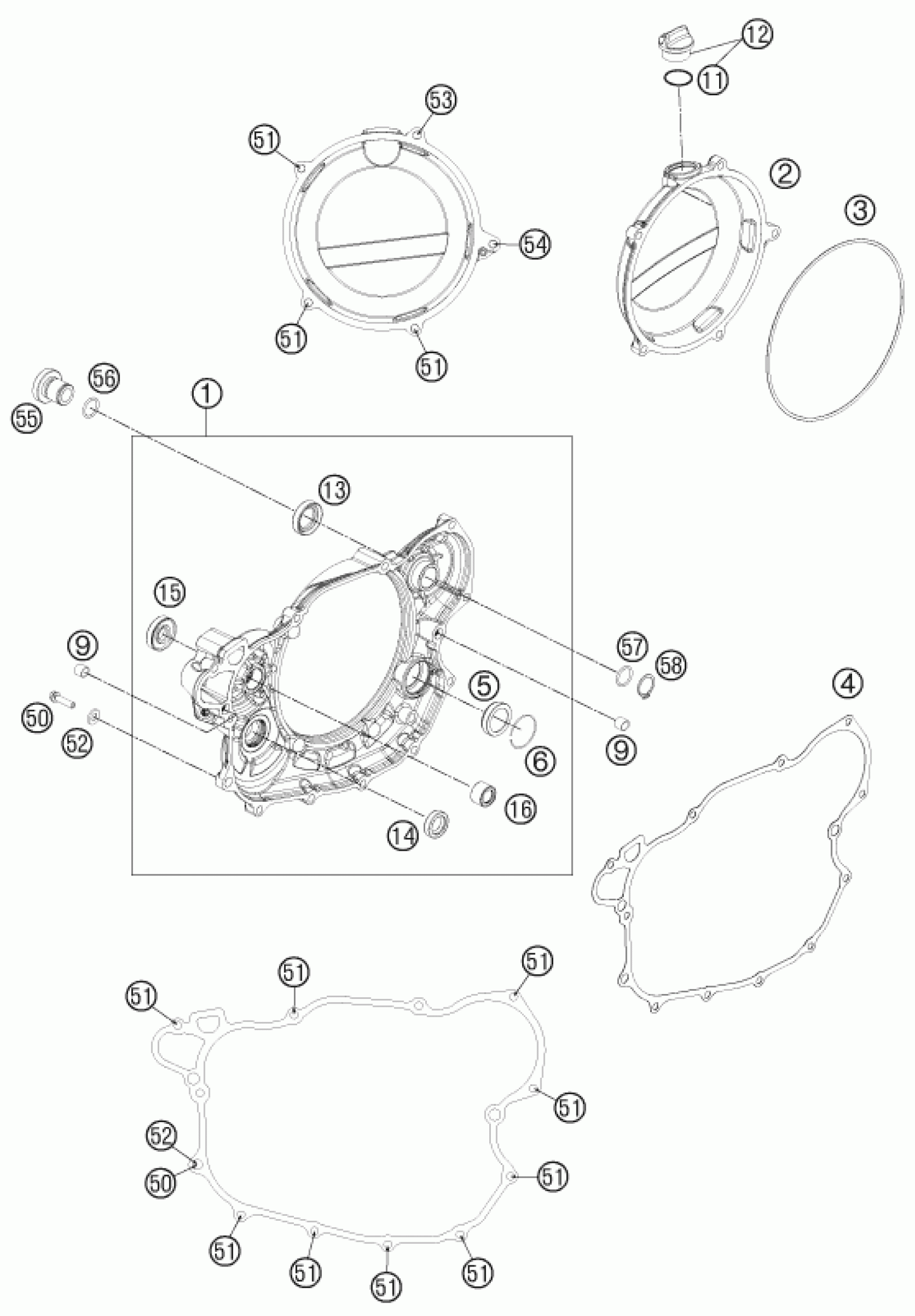

KTM 450 XC- F 2013 CLUTCH COVER Diagram

#

Description
Price

2

CLUTCH COVER OUTSIDE

7813002600015

Unavailable

3

GASKET - CLUTCH OUTER COVER

78130027000

Unavailable

4

CLUTCH COVER GASKET

78130025000

Unavailable

5

OIL LEVEL GLASS VITON

78030095100

Unavailable

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

9

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

11

O-RING 19,00X3,00 NBR

0770191015

Unavailable

12

OIL FILLER CAP M24x3 W. O-R

58030120000

Unavailable

13

SHAFT SEAL RING 19X30X7 B

0760193070

Unavailable

14

radial shaft seal 14x24x6 B

0760142460

Unavailable

15

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

16

NEEDLE BUSH NK1212

0618121912

Unavailable

50

LOCATING SCREW

78030080000

Unavailable

51

HH collar screw M6x25 TX30

0025060256

Unavailable

52

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

53

HH collar screw M6x55 TX30

0025060556

Unavailable

54

HH collar screw M6x60 TX30

0025060606

Unavailable

55

KICK-STARTER PLUG

83033056000

Unavailable

56

O-ring 16x2 Viton 75

0770160021

Unavailable

57

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

58

CIRCLIP DIN0471-19X1,2

0471190120

Unavailable

1

CLUTCH COVER CPL.

78130001144

Unavailable
