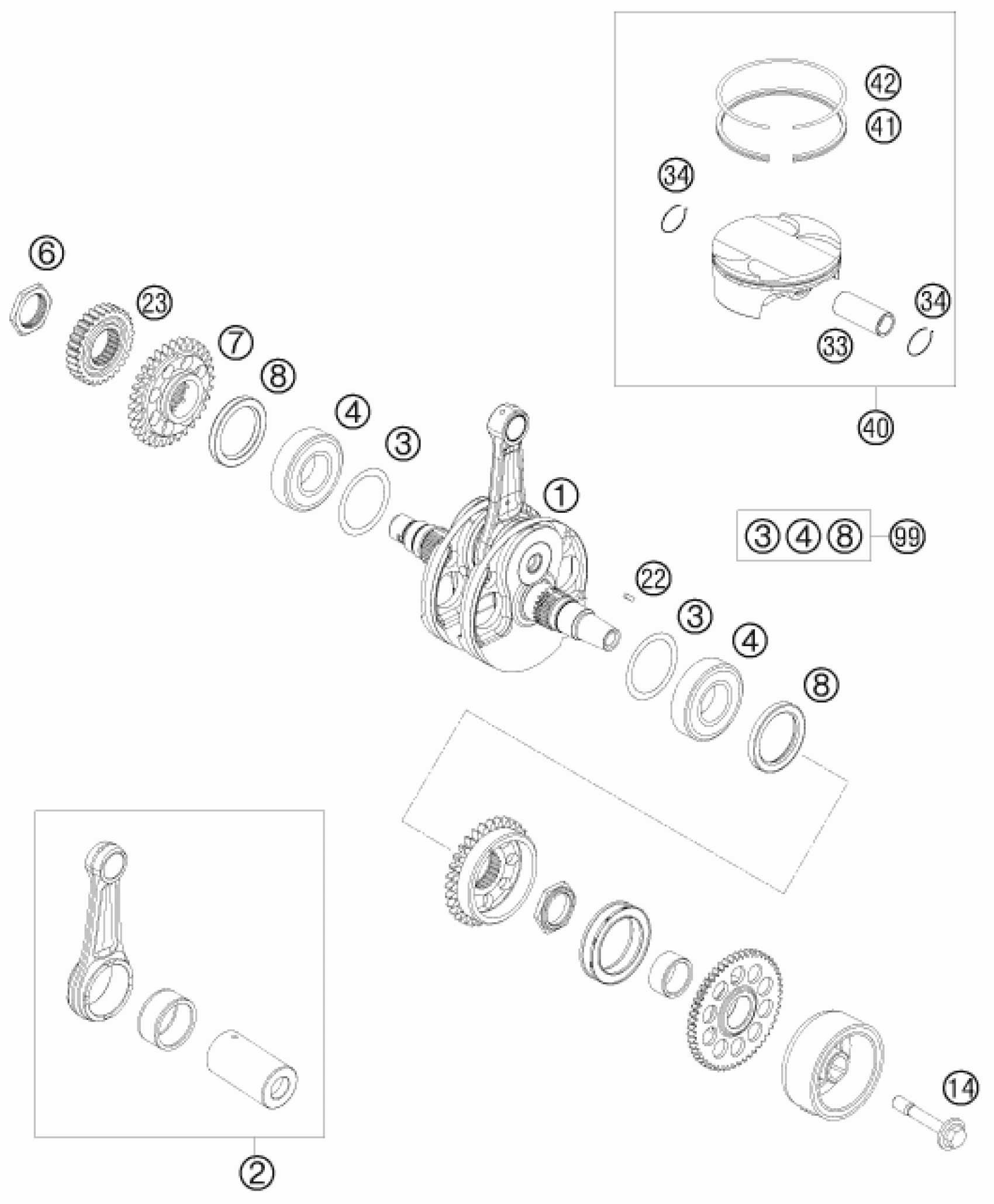

KTM 450 XC-F 2009 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

77330018300

Unavailable

2

CONNECTING ROD REPAIR SET

77330015144

Unavailable

3

THRUST WASHER 30X42X0,1

0988304201

Unavailable

3

THRUST WASHER 30X42X0,2

0988304202

Unavailable

3

THRUST WASHER 30X42X0,3

0988304203

Unavailable

4

CYL. ROLLER BEARING NJ206 ECP

77330082000

Unavailable

6

COLLAR NUT M27X1

77330029000

Unavailable

7

DRIVE WHEEL AGZR KS Z=32

77330055110

Unavailable

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

Unavailable

14

FLYWHEEL SCREW

77339010100

Unavailable

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

33

PISTON PIN

77330033000

Unavailable

34

CIRCLIP

77330074000

Unavailable

40

PISTON 450

77330007300 I

Unavailable

40

PISTON 450

77330007300 II

Unavailable

41

SCRAPER RING 450

77330032200

Unavailable

42

COMPRESSIONRING D=97 2007

77330030100

Unavailable

23

PRIMARY GEAR

77332023129

Unavailable

99

CRANKSHAFT REP. KIT 450 SX-F

00050002304

Unavailable
