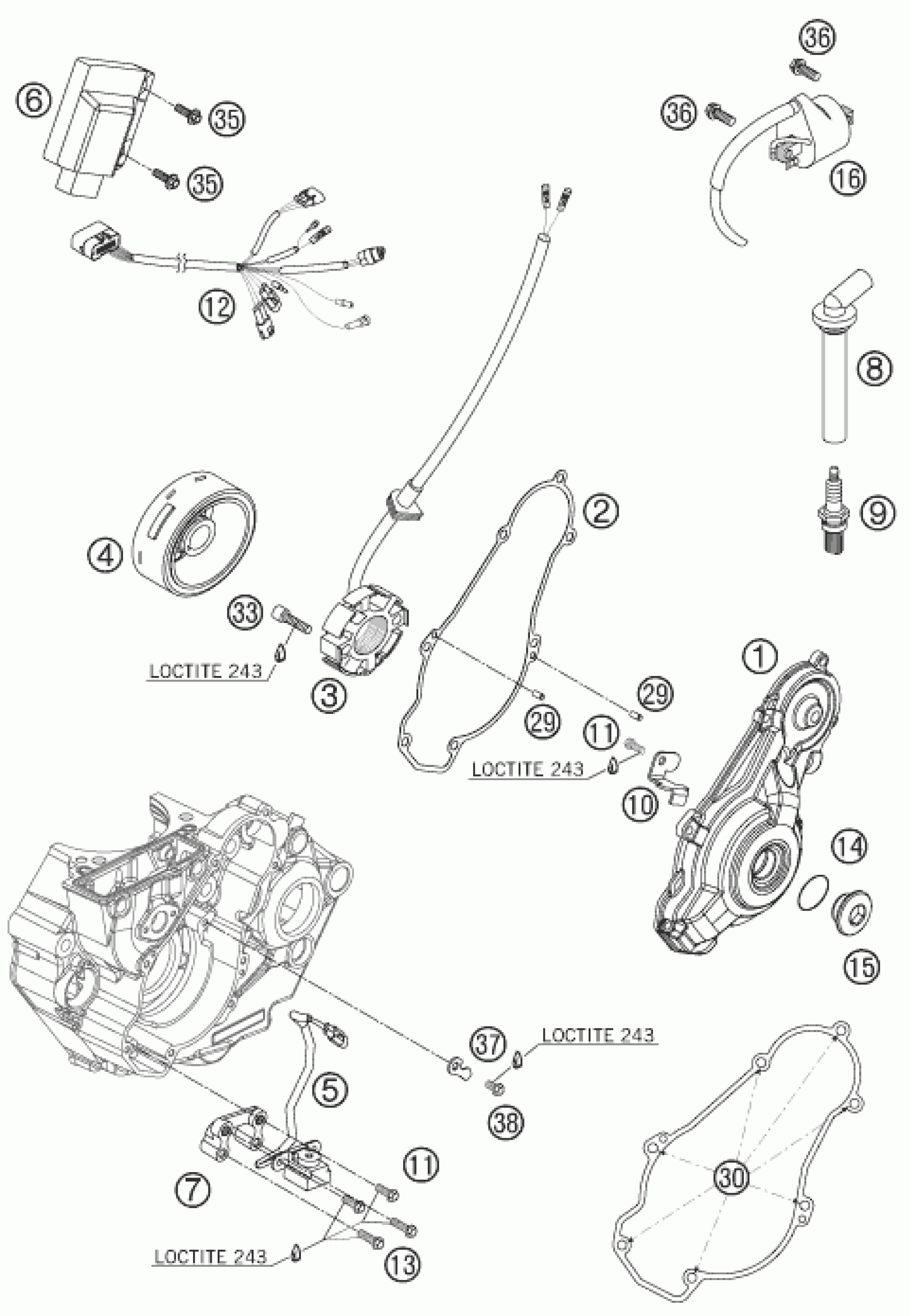

KTM 450 XC-F 2008 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER

77330002100

Unavailable

2

IGNITION COVER GASKET

77330040100

Unavailable

3

STATOR SX 06

77339004000

Unavailable

4

FLYWHEEL 05

77039005000

Unavailable

5

PULSER COIL KOKUSAN ''PU5165''

77339034000

Unavailable

6

CDI UNIT KOKUSAN 450 SX-F 07

77339031000

Unavailable

7

ADAPTER PULSER COIL

77339035100

Unavailable

8

SPARK PLUG

77339090000

Unavailable

9

SPARK PLUG NGK CR9EKB ´05

77039093000

Unavailable

10

WIRE RETAINING BRACKET

77330002050

Unavailable

11

HH COLLAR SCREW M 5X10 WS=8

0015050103

Unavailable

12

WIRING HARNESS FOR CDI-BOX

77339032000

Unavailable

13

HH COLLAR SCREW M 5X25 WS=8

0015050253

Unavailable

14

o-ring 22.00X2.00 NBR70

0770220020

Unavailable

15

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

29

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

30

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

33

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

35

HH collar screw M6x20 TX30

0024060206

Unavailable

36

HH collar screw M6x16 TX30

0025060166

Unavailable

37

RETAINING PLATE F.PICKUPCABEL

77340097100

Unavailable

38

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable
