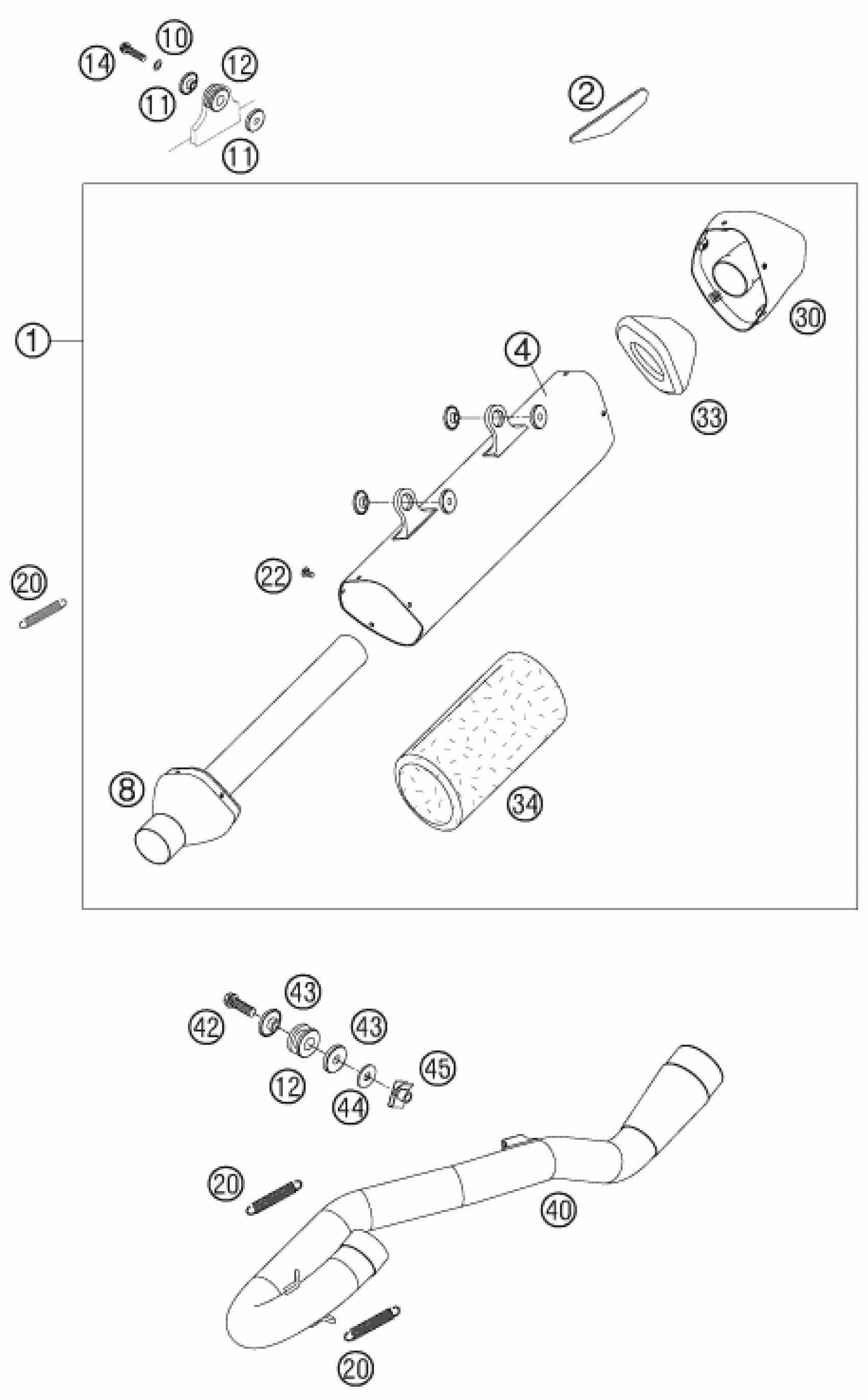

KTM 450 XC-F 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST SILENCER 450 SX-F 07

77305079000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

Unavailable

4

SILENCER HOUSING 450 SX-F 07

77305079050

Unavailable

8

CONNECTING CAP CPL. 07

77305079009

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

22

SCREW TORX M5X10 05

58605083010

Unavailable

42

HH collar screw M8x25

0025080256

Unavailable

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

44

WASHER DIN9021-A 8,4

0021080003

Unavailable

45

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

14

HH collar screw M6x30 TX30

0025060306

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

30

ENDCAP 07

77305079006

Unavailable

33

STUFFING YARN HGS 97

58305083080

Unavailable

34

STUFF.YARN 550GRAM L=550MM SX

59005078550

Unavailable

40

EXHAUST MANIFOLD 450 SX-F 07

77305007100

Unavailable
