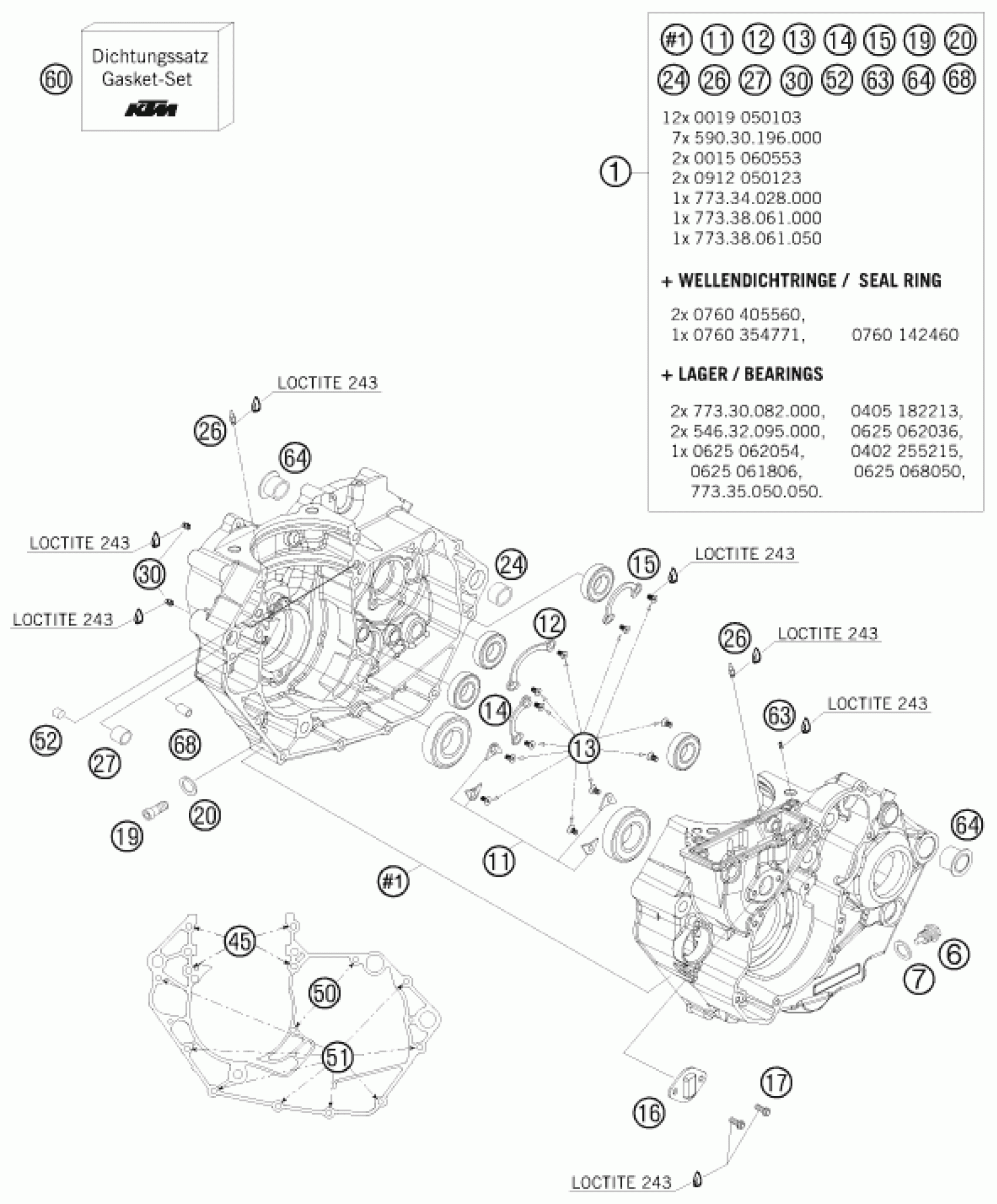

KTM 450 XC-F 2008 ENGINE CASE Diagram

#

Description
Price

45

SCREW M7-1,0X70

77330067170

Unavailable

1

ENGINE CASE CPL. W.TR.BEAR. 08

77330000244

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

11

BUSHING RETAINING PLATE

77330085000

Unavailable

12

BUSHING RETAINING PLATE

77333022100

Unavailable

13

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable

14

BUSHING RETAINING PLATE

77334090000

Unavailable

15

BUSHING RETAINING PLATE

77333024100

Unavailable

16

RETAINING PLATE

77336075050

Unavailable

17

HH COLLAR SCREW M 5X10 WS=8

0015050103

Unavailable

19

AH SCREW DIN6912-M 8X20

0012080203

Unavailable

20

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

24

DOWEL 17 X 19 X 12

59030024000

Unavailable

26

oil jet 50 M5

60030063050

Unavailable

27

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

30

JET 100 BING(44-031/180) M4

59030058000

Unavailable

50

HH COLLAR SCREW M 6X70 WS=8

0015060703

Unavailable

51

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

52

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

Unavailable

60

GASKET SET 450/505 SX-F

77330099000

Unavailable

63

THROTTLE M5X10X1

77338029052

Unavailable

64

CASE BUSH

75030010000

Unavailable

68

dowel sleeve 6x8x11.5

59030023000

Unavailable
