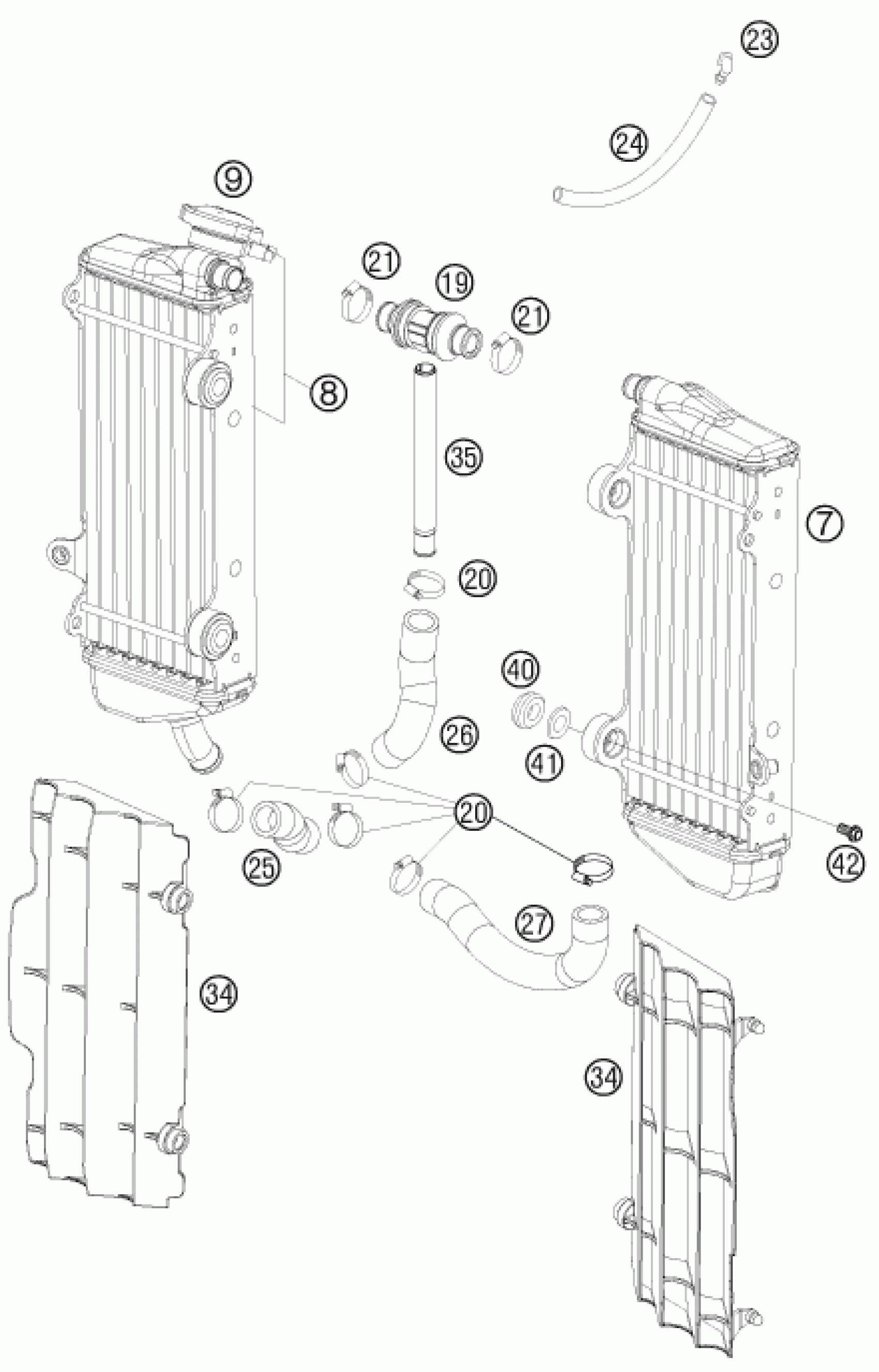

KTM 450 XC-F 2008 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S ''45519U'' 07

77335007000

Unavailable

8

RADIATOR R/S ''45518U''

77335008000

Unavailable

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

Unavailable

19

T-CONNECTOR CPL. ´07

77335026000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

21

HOSE CLAMP GEMI 12/22

42013037200

Unavailable

23

ANGLE PIECE '97

50303089000

Unavailable

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE R/S

77335027000

Unavailable

26

HOSE ENGINE-RADIATOR 07

77335024000

Unavailable

27

RADIATOR HOSE L/S

77335025000

Unavailable

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR 4 STROKE 07

77335073000

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

42

COLLAR SCREW M6X12 TX

0023060123

Unavailable

41

WASHER FOR RADIATOR 08

77335001000

Unavailable
