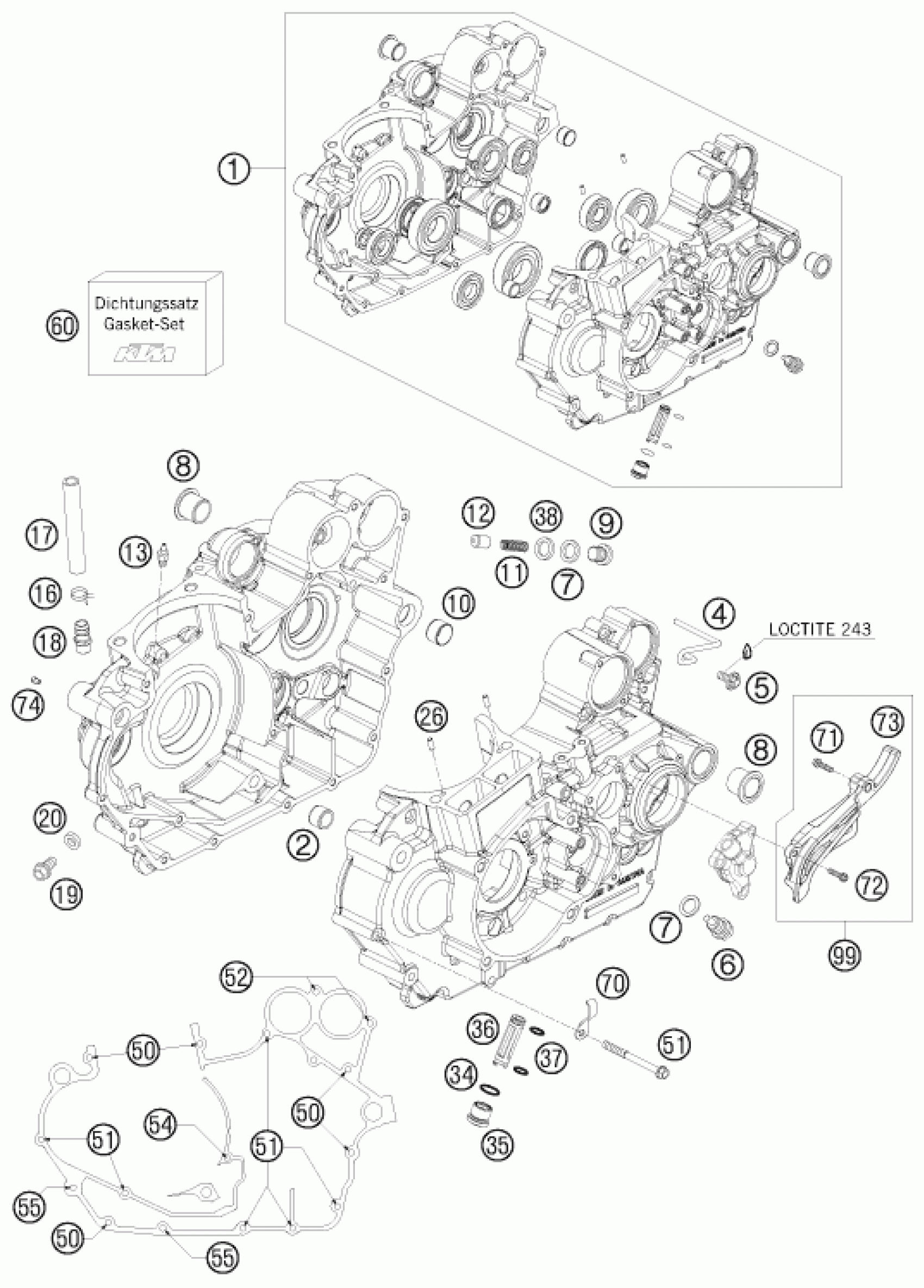

KTM 450 XC ATV 2010 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. W. BEARINGS

83130000233

Unavailable

2

DOWEL 17 X 13 X 12

51030026100

Unavailable

4

HANGER FOR VENT HOSE

59030090000

Unavailable

5

HH collar screw M6x15 TX30

0024060156

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

8

CASE BUSH

75030010000

Unavailable

9

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

10

DOWEL 17 X 19 X 12

59030024000

Unavailable

11

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

12

VALVE PISTON D=10MM

58038028000

Unavailable

13

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

16

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

17

ENGINE BREATHER TUBE

83031050000

Unavailable

18

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

19

HH collar screw M8x12 TX40

0025080126

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

26

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

SCREW PLUG

77038017000

Unavailable

36

OIL SCREEN 11,8x44,5MM

59038015100

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

38

SEAL RING DIN7603 12X18X3

0603121830

Unavailable

50

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

51

HH collar screw M6x60 TX30

0025060606

Unavailable

52

HH collar screw M6x30 TX30

0025060306

Unavailable

54

HH COLLAR SCREW M6X75 TX30

0025060756

Unavailable

55

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

60

GASKET SET CPL. ATV 2007

83030099000

Unavailable

70

SUPPORT

83034046000

Unavailable

71

HH collar screw M8x30

0025080306

Unavailable

72

HH collar screw M6x30 TX30

0025060306

Unavailable

73

SPROCKET COVER 250 SX 07

54803096000

Unavailable

74

JET 100 BING(44-031/180) M4

59030058000

Unavailable

99

SPROCKET COVER KIT

54803096010

Unavailable
