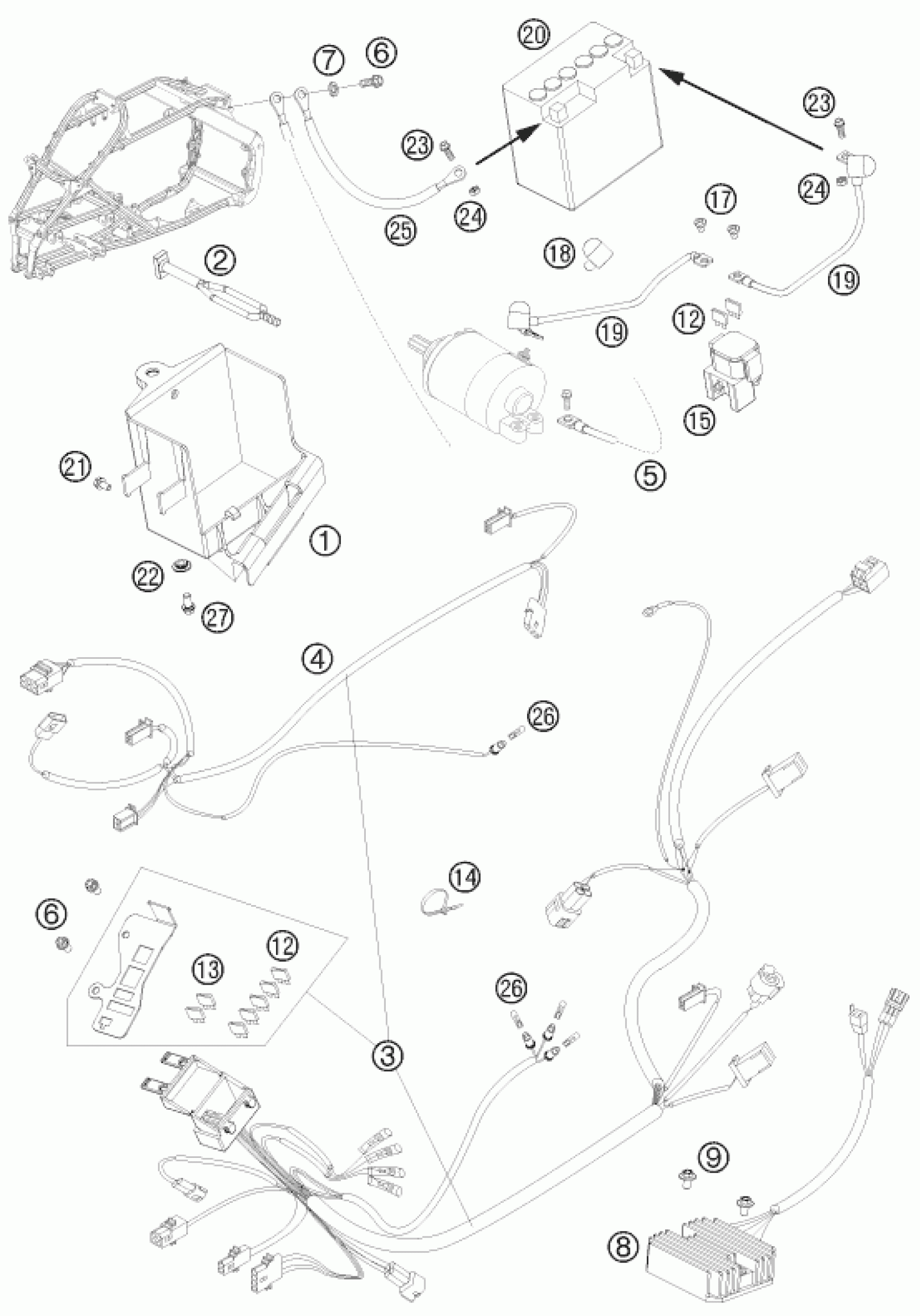

KTM 450 XC ATV 2009 WIRING HARNESS Diagram

#

Description
Price

1

BATTERY BOX

83011055000

Unavailable

2

RUBBER L=145MM

50303018000

Unavailable

3

MAIN/LIGHT WIRING HARNESS 08

83011075050

Unavailable

4

LIGHTING WIRING HARNESS 08

83011079000

Unavailable

5

GROUND CABLE 2

83011097100

Unavailable

6

HH collar screw M6x16 TX30

0025060166

Unavailable

7

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

8

VOLTAGE REGULATOR

83011034000

Unavailable

9

HH collar screw M6x20 TX30

0025060206

Unavailable

12

Plug-in fuse, big 10A

58011109110

Unavailable

13

FUSE 15 A

58011109115

Unavailable

14

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

15

Starter reley 12V 99

58211058000

Unavailable

17

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

18

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

19

STARTER CABLE

83011059000

Unavailable

20

BATTERY 12V 4AH YTX5L-BS

58511053000

Unavailable

21

HH collar screw M5x12 TX30

0025050126

Unavailable

22

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

23

COLLAR SCREW M6X12 TX

0023060123

Unavailable

24

Hex. nut DIN 934 M6

0934060003

Unavailable

25

GROUND CABLE 1

83011097000

Unavailable

26

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

27

HH collar screw M6x12 TX30

0025060126

Unavailable
