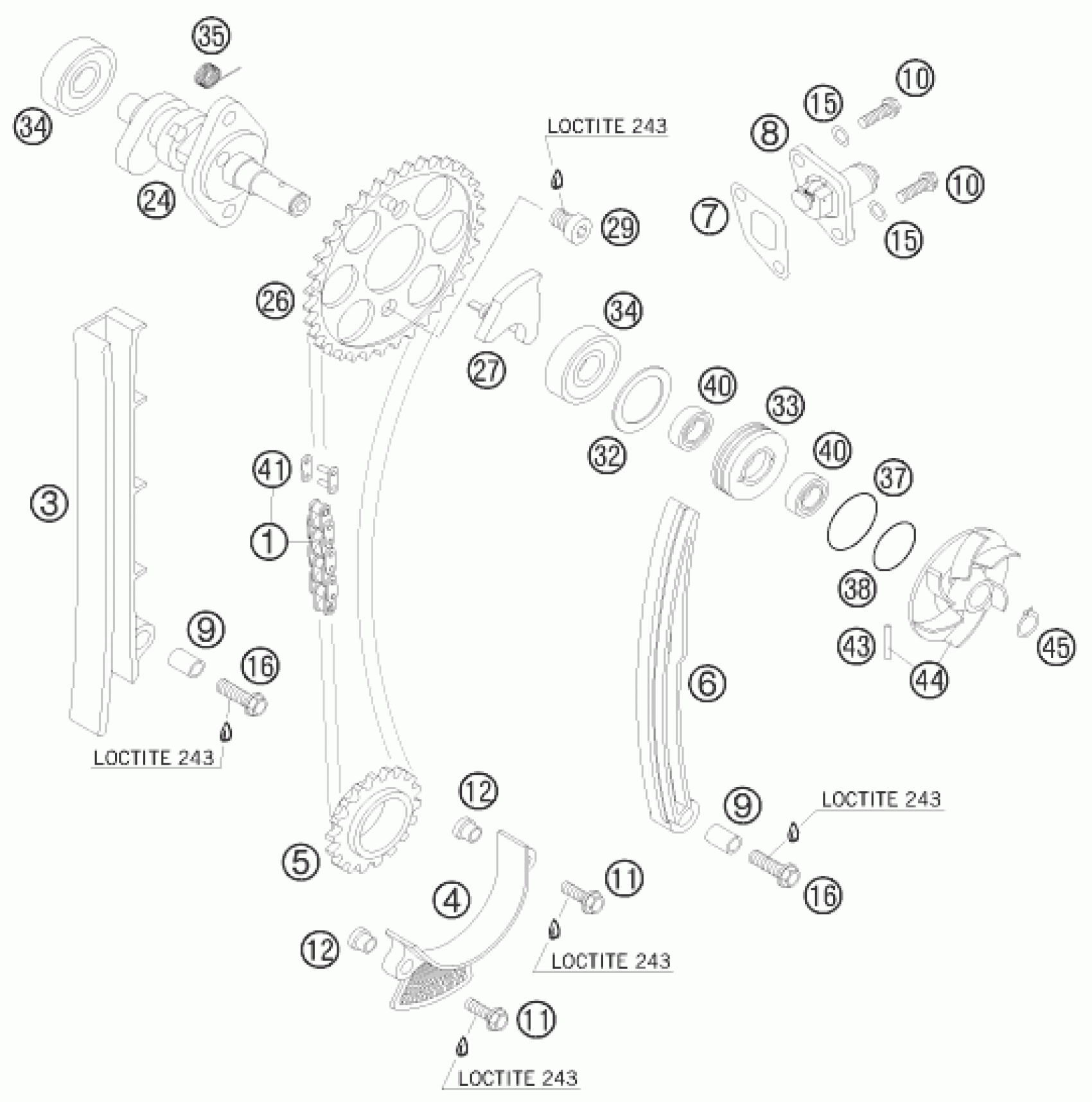

KTM 450 XC ATV 2009 TIMING DRIVE Diagram

#

Description
Price

43

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

44

WATER PUMP WHEEL CPL. RAC.2001

59035055144

Unavailable

45

CIRCLIP DIN0471-10X1

0471100010

Unavailable

1

TIMING CHAIN 96 ROLLS

59036013000

Unavailable

3

TIMING CHAIN GUIDE RACING

59036001000

Unavailable

4

SECURING GUIDE RACING

59036018000

Unavailable

5

TIMING GEAR 18-T

59036014000

Unavailable

6

TIMING CHAIN TENSIONER

59036002000

Unavailable

7

GASKET TIMING CHAIN TENSIONER

59036003050

Unavailable

8

TIMINGCHAIN TENSIONER CPL.RAC.

59036003000

Unavailable

9

SPACER BUSHING 6,1X8,2X13,1

59036001050

Unavailable

10

HH collar screw M6x20 TX30

0025060206

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

SUPPORTING SLEEVE 5,2X7X10X7,7

59036018050

Unavailable

15

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

24

CAMSHAFT 590/5521 2000

59036010000

Unavailable

26

CAMSHAFT GEAR 2003

59036011100

Unavailable

27

AUTO DECOMPRESSION SHAFT

59036016000

Unavailable

29

AH SCREW DIN7984-M 8X10

0984080103

Unavailable

32

WASHER 26,7X34X1,3

59036082000

Unavailable

33

GASKET SUPPORT

59036081100

Unavailable

34

BALL BEARING 6201

0625062014

Unavailable

35

SPRING FOR AUTODECOMPRESSION

59036017000

Unavailable

37

O-RING 29,10X1,60 NBR 70

0770291016

Unavailable

38

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

40

SHAFT SEAL RING 10X18X4 BSL V.

0760101844

Unavailable

41

RIVET LINK FOR TIMING CHAIN

59036013050

Unavailable
