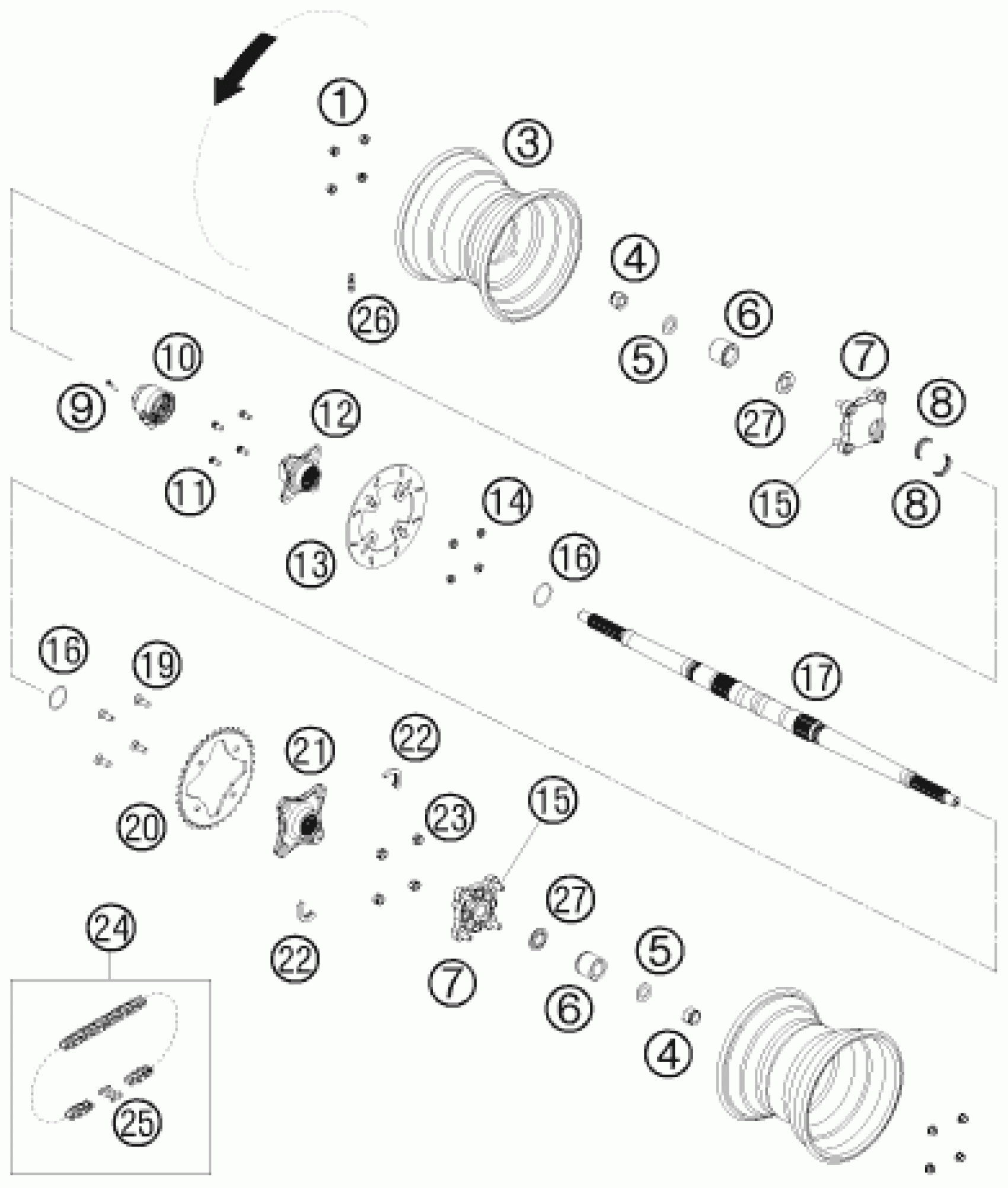

KTM 450 XC ATV 2009 REAR WHEEL Diagram

#

Description
Price

11

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable

1

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

3

RIM REAR 8X9''

83010070000

Unavailable

4

SELF LOCK.NUT DIN0985-M18X1,5

0985181503

Unavailable

5

TENSIONER RAIL DIN6796 D=19

83010021000

Unavailable

6

SPACER BUSHING

83010013000

Unavailable

7

REAR WHEEL HUB CPL.

83010069044

Unavailable

8

CIRCLIP REAR AXLE

83010063000

Unavailable

9

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

10

TENSION NUT

83010064000

Unavailable

12

BRAKE DISK SUPPORT 08

83010062000

Unavailable

13

BRAKE DISK REAR D=200 MM

83010060000

Unavailable

14

SPECIAL NUT BRAKE DISK FIXING

83010060050

Unavailable

15

WHEELBOLT

83009016000

Unavailable

16

O-RING 39,34X2,62 NBR 70 SH

0770039026

Unavailable

17

REAR WHEEL AXLE

83010016000

Unavailable

19

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

Unavailable

20

SPROCKET 38T

83010051038

Unavailable

21

SPROCKET SUPPORT 08

83010050000

Unavailable

22

CIRCLIP REAR AXLE SPROCKET

83010063100

Unavailable

23

SELF LOCK.NUT M10X1,25

0982101253

Unavailable

24

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

25

MASTER LINK FOR 50310800118

50310866000

Unavailable

25

CONNECTING LINK F. 50310800118

50310366000

Unavailable

26

VALVE

83009076000

Unavailable

27

CONUSRING REAR AXLE

83010014000

Unavailable
