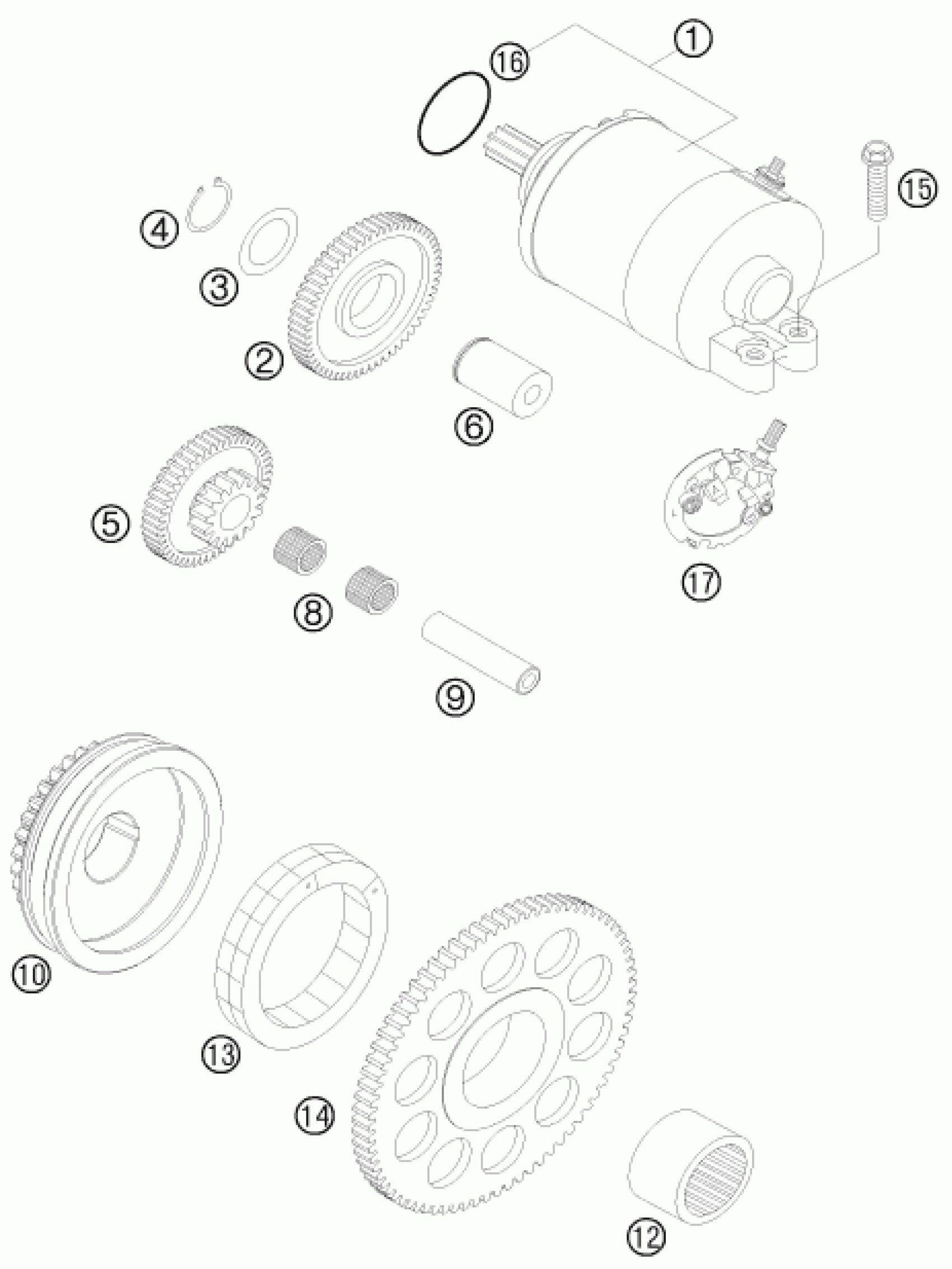

KTM 450 XC ATV 2009 ELECTRIC STARTER Diagram

#

Description
Price

6

BUSHING PIN

59040028000

Unavailable

1

E-STARTER ENGINE KPL. 0,45 KW

59040001000

Unavailable

2

GEAR WHEEL

59040022258

Unavailable

3

STOP DISK 17,2X25X1

54633090000

Unavailable

4

CIRCLIP DIN0471-17X1

0471170010

Unavailable

5

TORQUE LIMITER 06

59040016000

Unavailable

8

NEEDLE BEARING K 10X13X10 02

0405101310

Unavailable

9

BEARING BOLT

59040029000

Unavailable

10

PRIMARY GEAR 31T CPL.

83032022031

Unavailable

12

NEEDLE BEARING HK 3016 B

0618301617

Unavailable

13

FREE-WHEEL FWD 332008 BLS

58440026000

Unavailable

14

FREEWHEEL GEAR

59040020175

Unavailable

15

HH collar screw M6x20 TX30

0025060206

Unavailable

16

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

17

BRUSH HOLDER F. STARTER

78040002000

Unavailable
