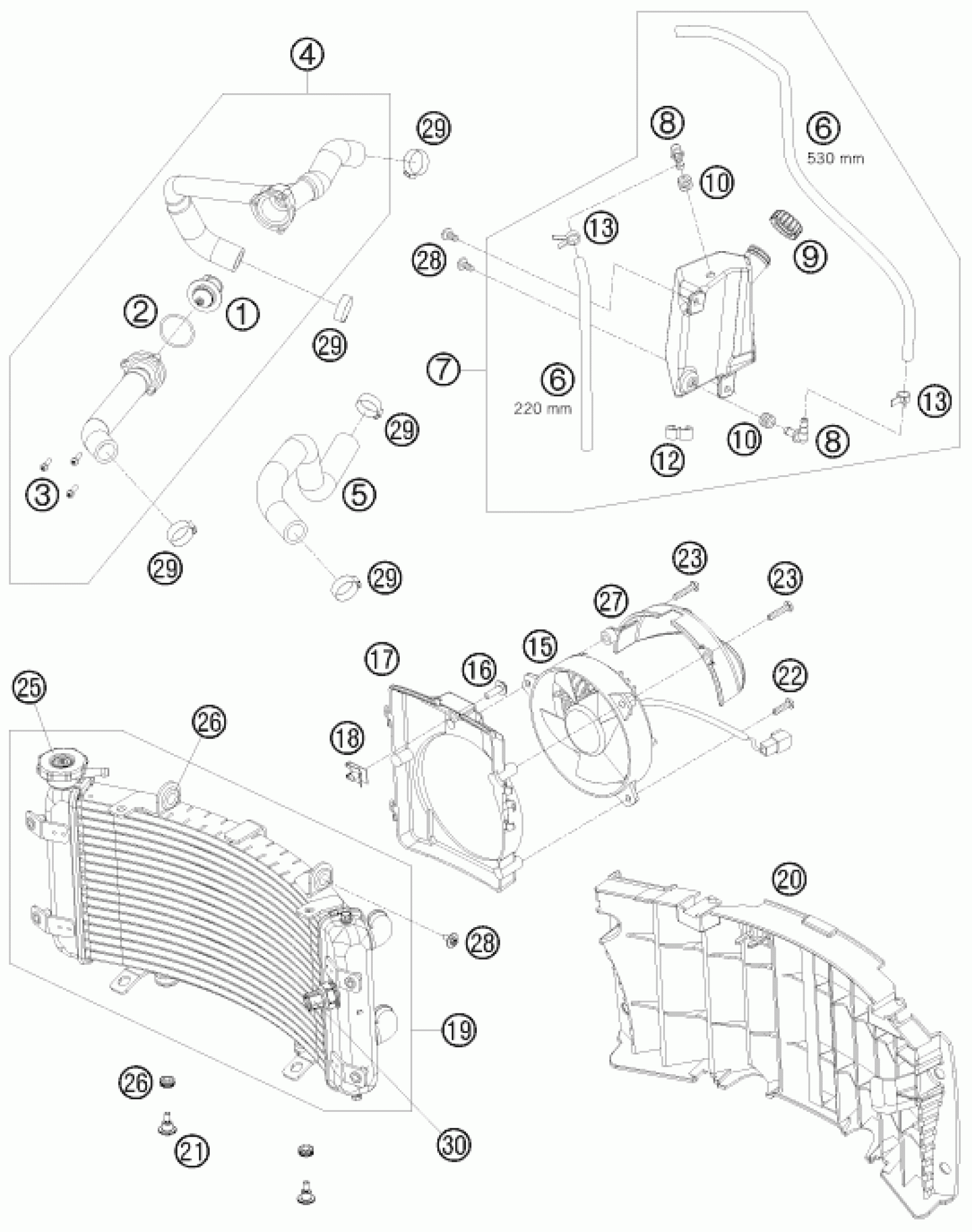

KTM 450 XC ATV 2009 COOLING SYSTEM Diagram

#

Description
Price

1

THERMOSTAT 70 DEGREE 04

59435017000

Unavailable

2

O-RING 32,00X2,00

0770320020

Unavailable

3

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

4

COOLING WATER HOSE SYSTEM R/S

83035090000

Unavailable

5

PREFORMED HOSE RADIATOR-CYL.

83035027000

Unavailable

6

HOSE 6X10 EPDM 03

60035067001

Unavailable

7

EXPANSION TANK

83035065000

Unavailable

8

Angle piece, reservoir

60035068000

Unavailable

9

PLUG F. EXPANSION TANK

60035066000

Unavailable

10

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

12

DISTANCE HOLDER 10/10 BLACK

60038039000

Unavailable

13

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

15

FAN L/S 03

60035041000

Unavailable

16

HH collar screw M6x20 TX30

0024060206

Unavailable

17

FAN COWL ATV

83035041000

Unavailable

18

clip nut M6

54603048100

Unavailable

19

RADIATOR ATV 2008

83035010000

Unavailable

20

RADIATOR PROTECTOR

83035040000

Unavailable

21

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

22

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

23

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

25

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

26

RUBBER SLEEVE D=12MM

41001052000

Unavailable

27

AIR CONDUCTION COWL ATV

83035042000

Unavailable

28

COLLAR SCREW M6X12 TX

0024060123

Unavailable

29

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

30

THERMOSWITCH 80-85 DG

83035045000

Unavailable
