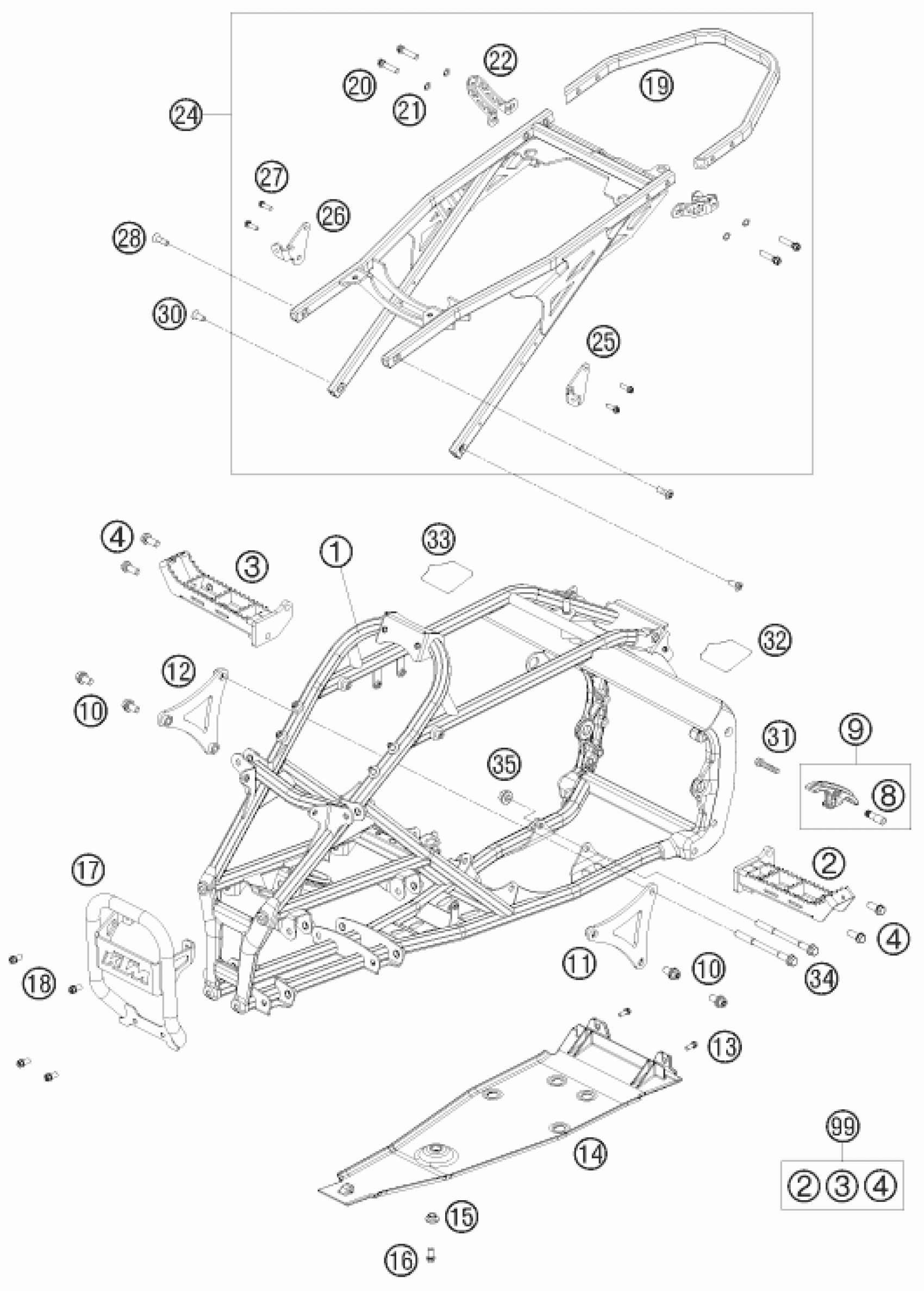

KTM 450 XC ATV 2008 FRAME Diagram

#

Description
Price

31

HH collar screw M8x45 TX40

0025080456

Unavailable

1

FRAME ATV-XC ''NC08'' 2008

8300300100030

Unavailable

20

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

2

FOOTREST CPL. L/S

83003040000

Unavailable

3

FOOTREST CPL. R/S

83003041000

Unavailable

4

COLLAR SCREW M10X24 TX

0025100246

Unavailable

8

BUSHING

83003053051

Unavailable

9

CHAIN SLIDING PIECE BELOW

83003053000

Unavailable

10

COLLAR SCREW M10X18 TX

0023100183

Unavailable

11

ENGINE SUPPORT L/S CPL.

83003013044

Unavailable

12

ENGINE SUPPORT R/S CPL.

83003113044

Unavailable

14

FRAME PROTECTION BELOW

83003090000

Unavailable

16

HH collar screw M8x20

0025080206

Unavailable

18

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

19

SUB FRAME-BRACKET 07

83003002010

Unavailable

17

FRONT BUMPER BLACK

8300300300030

Unavailable

21

LOCK WASHER 8MM

36003014000

Unavailable

28

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

30

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

22

FENDER MOUNTING

83003002030

Unavailable

24

SUB FRAME CPL. 08

83003002044

Unavailable

25

HEELGUARD FIXING L/S

83003002040

Unavailable

26

HEELGUARD FIXING R/S

83003002041

Unavailable

27

HH collar screw M6x20 TX30

0025060206

Unavailable

13

HH collar screw M6x16 TX30

0025060166

Unavailable

34

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

35

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

15

BEARING BUSHING INSIDE 03

60007061000

Unavailable

99

FOOTPEG KIT ATV

00050010002

Unavailable

33

PROTECT.FILM F. FRAME R/S 2008

83003099100

Unavailable

32

PROTECT.FILM F. FRAME L/S 2008

83003099000

Unavailable
