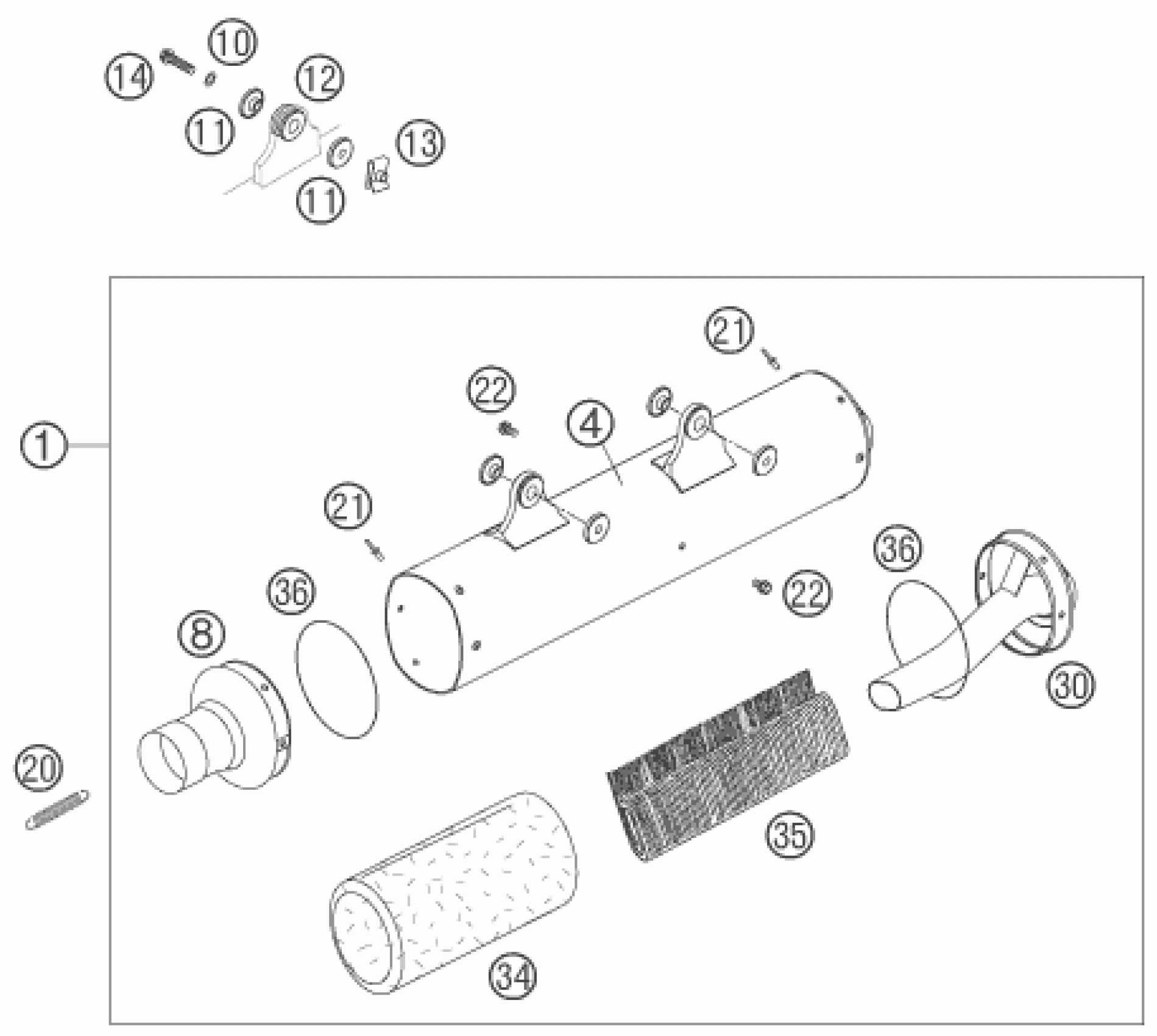

KTM 450 XC 2007 MAIN SILENCER Diagram

#

Description
Price

1

SILENCER EXC UNTHROTTLED 04

59005081600

Unavailable

4

SILENCER HOUSING EXC 04

59005081550

Unavailable

8

SILENCENER CONNECT. CAP CPL.03

59405079009

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

22

SCREW TORX M5X10 05

58605083010

Unavailable

30

ENDCAP EXC CPL. UNTHROTTLED 04

59005081606

Unavailable

34

STUFFINGYARN 350 GRAMM '99

58705078350

Unavailable

35

STUFFING YARN 560X340X76G 04

59005078076

Unavailable

36

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable
