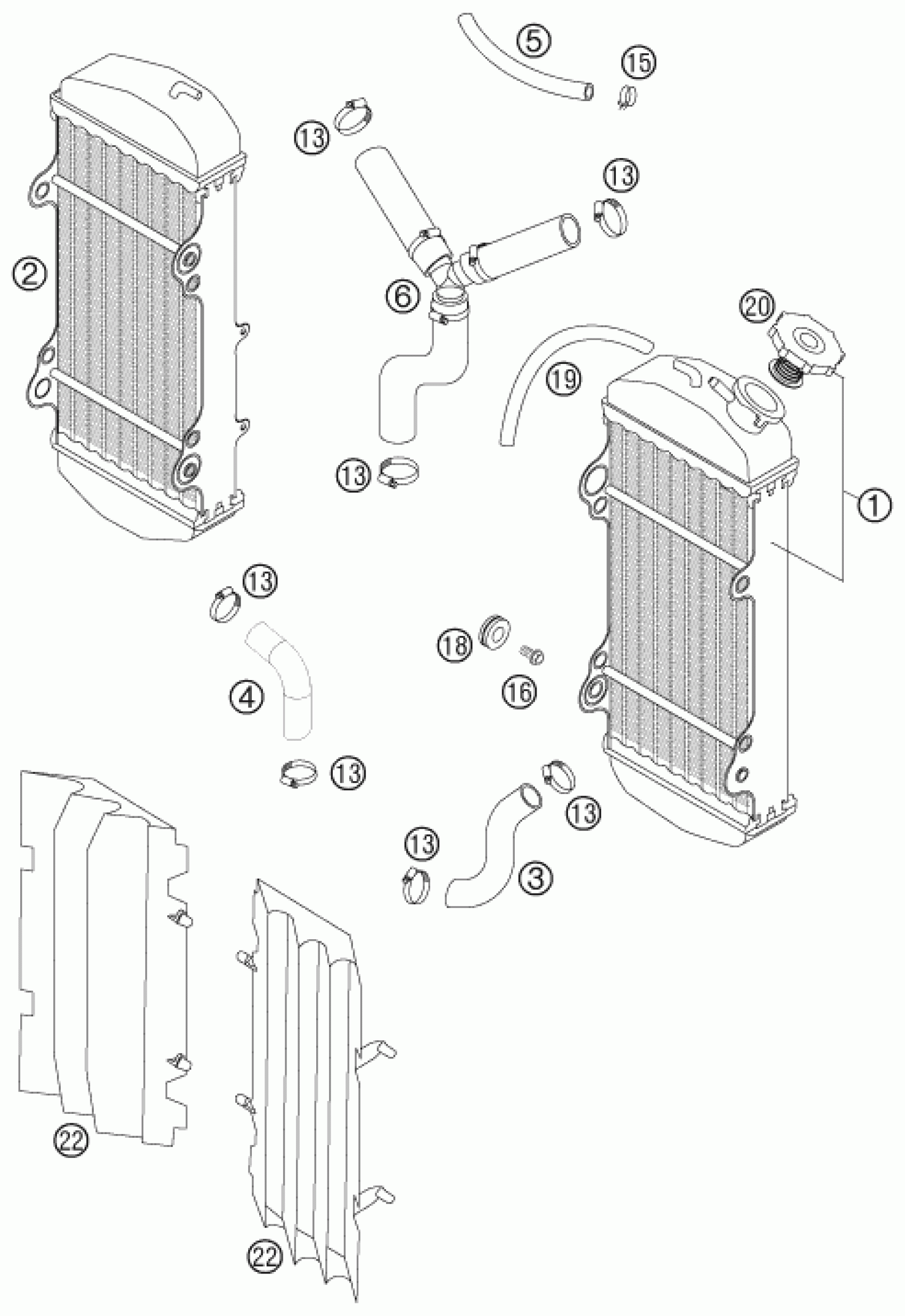

KTM 450 XC 2007 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S 45.407 03

59035007300

Unavailable

2

RADIATOR R/S 45.408 03

59035008300

Unavailable

3

RADIATOR HOSE L/S RAD.-CYL. 03

59035024100

Unavailable

4

RADIATOR HOSE R/S RAD.-CYL. 03

59035124100

Unavailable

5

HOSE ID 7,5 PER METER

54435024001

Unavailable

6

RADIATOR HOSE CYL.HEAD-RAD. 03

59035125000

Unavailable

13

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

15

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

16

COLLAR SCREW M6X12 TX

0024060123

Unavailable

18

RUBBER SLEEVE D=12MM

41001052000

Unavailable

19

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

20

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

22

RADIATOR PROTECTION BLACK 06

5903504000030

Unavailable

22

RADIATOR PROTECTION ORANGE 03

5903504000004

Unavailable
