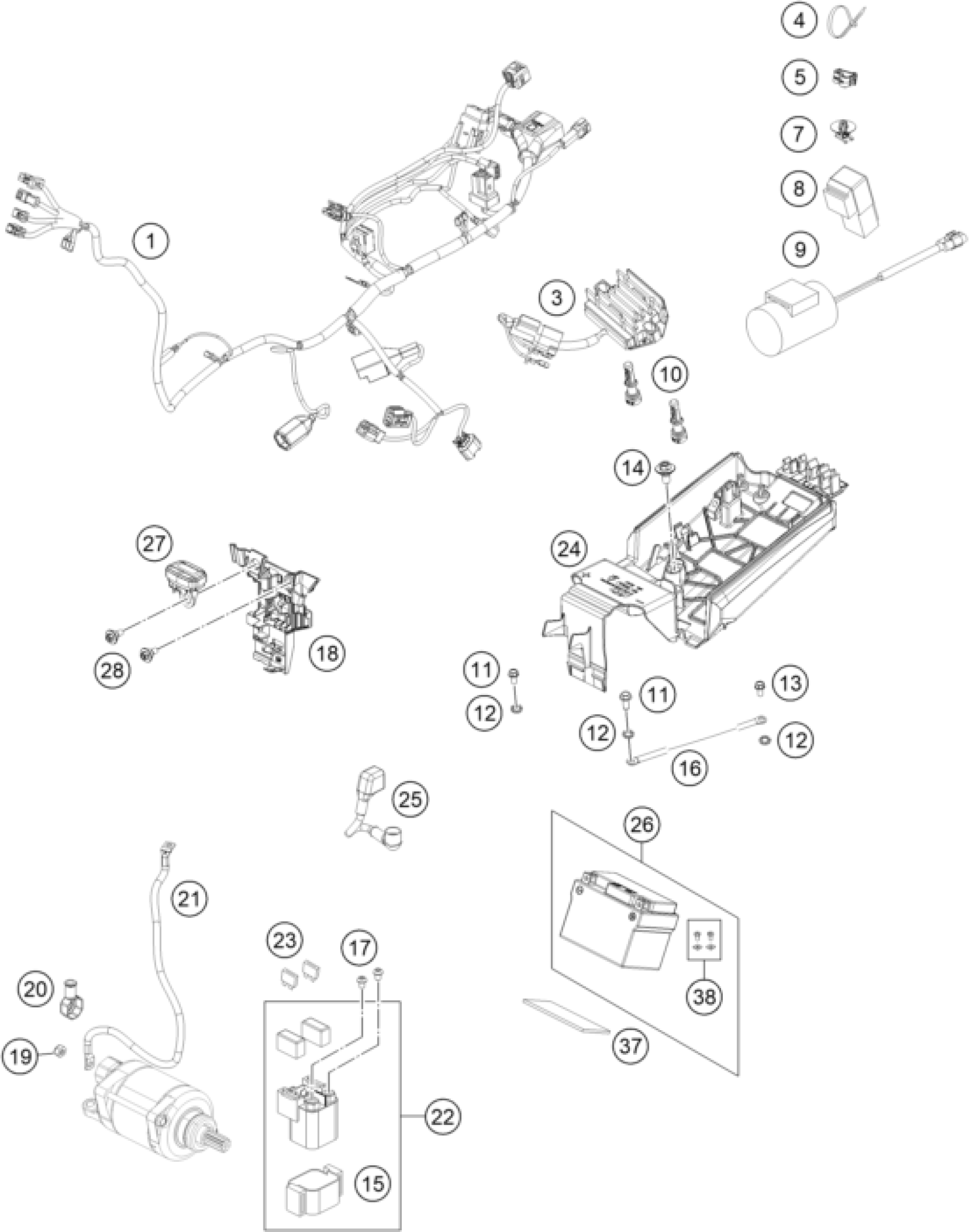

KTM 450 SX-F FACTORY EDITION 2024 WIRING HARNESS Diagram

#

Description
Price

1

Main harness

A46011075100

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

7

Cable bracket d8

79711013010

Unavailable

8

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

9

Capacitor

77711035000

Unavailable

10

Holder control unit

55641030000

Unavailable

11

HH collar screw M5x12 TX30

0025050126

Unavailable

12

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

13

Roundhead screw w/ Tx M6x12 mm

0900000601202

Unavailable

14

special screw M6x12x3

83008000012

Unavailable

15

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

16

Ground wire

75011097100

Unavailable

17

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

18

Connector support

A46011083000

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

Starter cable

A46011059000

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 10A

58011109110

Unavailable

24

Battery holding bracket

A46011055100

Unavailable

25

Battery cable cmpl.

A46011059050

Unavailable

26

battery 12V/24Wh

79111053000

Unavailable

27

Dashboard

A46014069000

Unavailable

28

Special screw M6x15x5.5

83008100015

Unavailable

37

METAMOLL 90X45X3MM 03

59003001099

Unavailable

38

screw kit

79111053010

Unavailable
