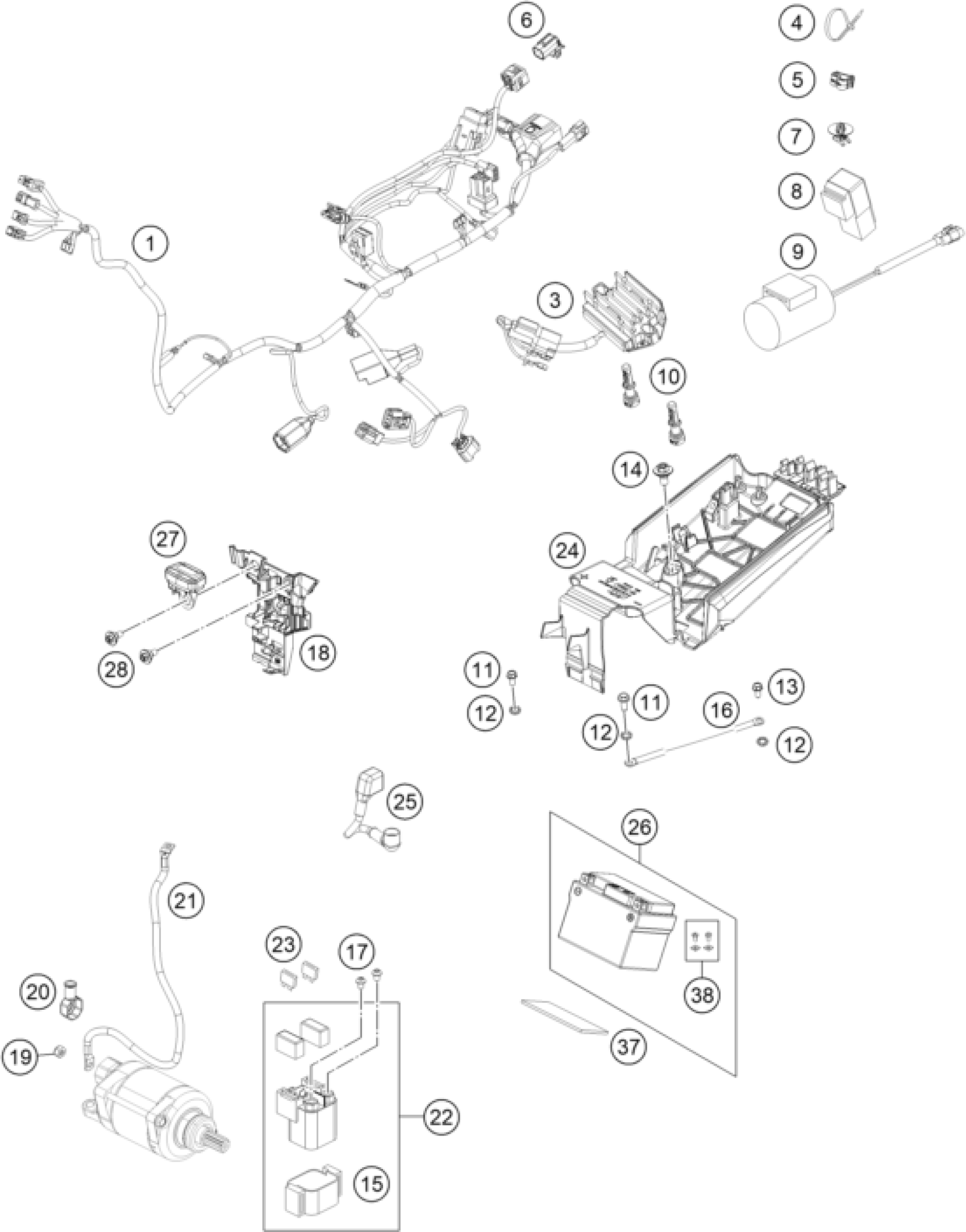

KTM 450 SX-F FACTORY EDITION 2023 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

A46011075000

Unavailable

37

METAMOLL 90X45X3MM 03

59003001099

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

Plug cap

000700000OU002

Unavailable

7

Cable bracket d8

79711013010

Unavailable

8

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

9

Capacitor

77711035000

Unavailable

10

Holder control unit

55641030000

Unavailable

11

HH collar screw M5x12 TX30

0025050126

Unavailable

12

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

13

COLLAR SCREW M6X13 ISA30

0026060136

Unavailable

14

special screw M6x12x3

83008000012

Unavailable

15

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

16

Ground wire

75011097100

Unavailable

17

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

18

Connector support

A46011083000

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

Protection cap for starter eng

77240099000

Unavailable

21

Starter cable

A46011059000

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 10A

58011109110

Unavailable

24

Battery holding bracket

A46011055100

Unavailable

25

Battery cable cmpl.

A46011059050

Unavailable

26

battery 12V/24Wh

79111053000

Unavailable

27

Dashboard

A46014069000

Unavailable

28

Special screw M6x15x5.5

83008100015

Unavailable

38

screw kit

79111053010

Unavailable
